OPT-MCT40/4.5-0.08X M42 / M58 / M72 lens
Manufacturer part number: OPT-MCT40/4.5-0.08X
Series: Coloretto-Zeilenobjektive
- Objektivbauart
- Zeilen-Festbrennweitenobjektiv
- Zeilenkamera
- 8k at 7 µm µm
- Bildkreis
- Ø60 mm
- Abbildungsmaßstab
- 0.01 × | 0.08 × | 0.26 ×
- Focal length
- 40 mm
- Arbeitsabstand
- 4146.4 (0.01×) | 522.4 (0.08×) | 162.7 (0.26×)
- Mount
- M42 / M58 / M72
- Aperture
- F4.5 - F22
- Verzeichnung
- 0.35 % (0.01×) | 0.22 % (0.08×) | 1.60 % (0.26×)
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-MCT40/4.5-0.08X |
|---|---|
| Zeilenauflösung | 8k (7 µm) |
| Focal Length(mm) | 40 mm |
| Aperture(F/#) | F4.5 – F22 |
| Image Circle Ø(mm) | Ø60 mm |
| Mount | M42 / M58 / M72 |
| Weight(kg) | 0.53 kg |
| Size(mm) | Ø78.00 × 57.20 |
| Filter Thread | M65×P0.75 |
| Working Temperature | -20 °C – 60 °C |
| Distortion | 0.35 % (0.01 ×) | 0.22 % (0.08 ×) | 1.60 % (0.26 ×) |
| Magnification（X） | 0.01 × | 0.08 × | 0.26 × |
| Working Distance(mm) | 4146.4 (0.01 ×) | 522.4 (0.08 ×) | 162.7 (0.26 ×) |
| Flange Focal Distance(mm) | 46.5 (0.01 ×) | 46.5 (0.08 ×) | 46.5 (0.26 ×) |
| Object To Image Distance(mm) | 4250.3 (0.01 ×) | 629.3 (0.08 ×) | 277 (0.26 ×) |
| Coaxial | no |
| Lens Type | Zeilenkameraobjektiv |
| Lens type | Zeilenobjektiv |
| Bauart | Line Scan |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

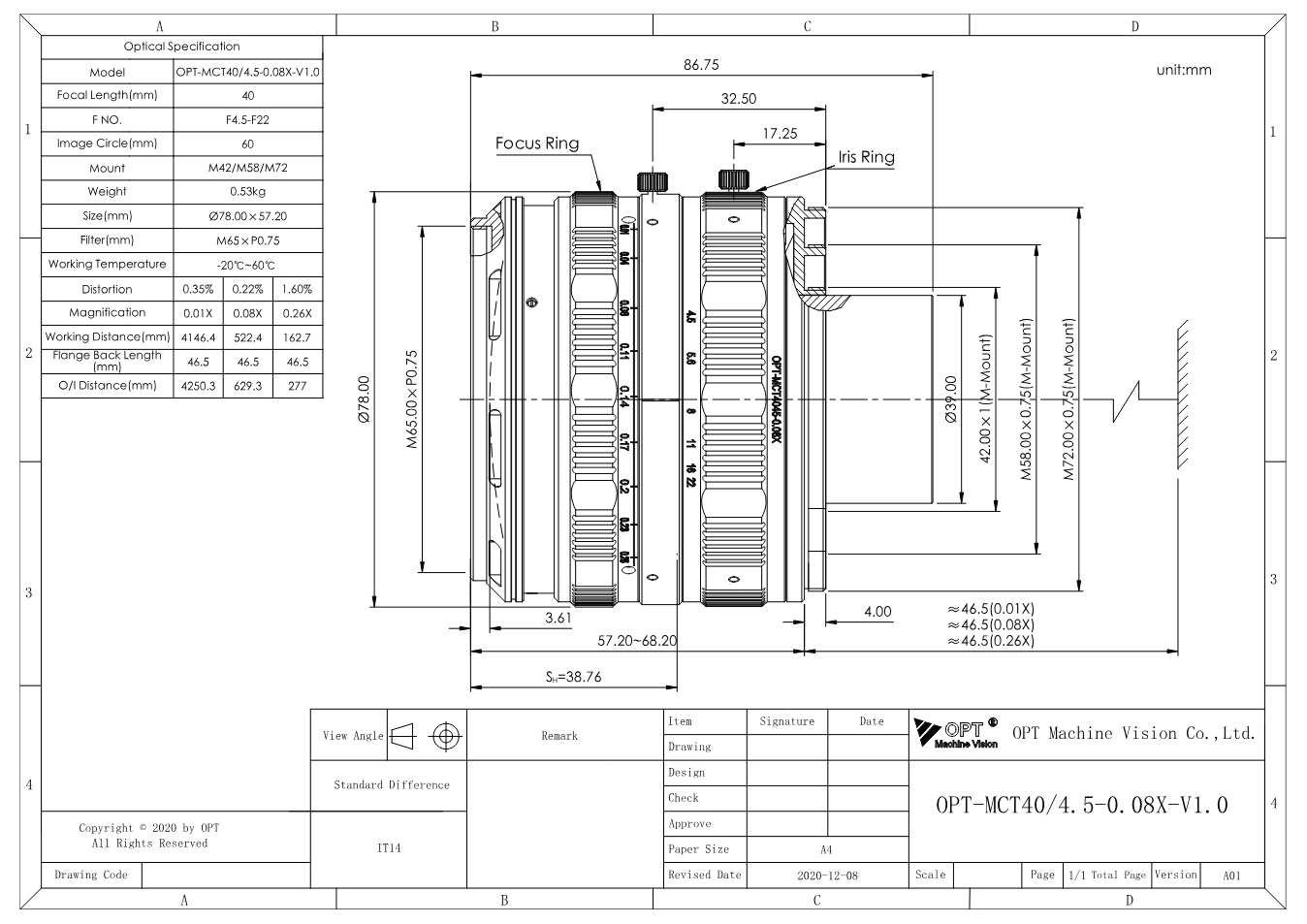

Dimensional drawing
Documents
- Download datasheet
Datasheet mit Maßzeichnung OPT-MCT40/4.5-0.08X (PDF)
Datasheet · EN · 115 KB
- Download datasheet
Optische Daten (MTF) OPT-MCT40/4.5-0.08X
Datasheet · EN · 1 MB
- Download datasheet
Coloretto-Zeilenobjektive - Serienbroschüre OPT
Datasheet · EN · 30 MB
- Download
3D-Modell OPT-MCT40/4.5-0.08X (STEP)
Technical drawing · EN · 9 MB
Description
With focal length 40 mm, aperture F4.5 - F22, image circle Ø60 mm, OPT-MCT40/4.5-0.08X belongs to the series “Coloretto Line Scan Lenses” by OPT Machine Vision. Further key data: working distance 4146.4 (0.01 ×) | 522.4 (0.08 ×) | 162.7 (0.26 ×), M42 / M58 / M72.
The Coloretto series is designed for line scan cameras with 7 µm pixels and image circles up to 30 mm. The achromatic design over 400 to 700 nm keeps the color channels congruent, and the relative distortion stays below 0.6 %. It is used on line scan cameras for web material, print, films and wood - wherever color and geometry have to be right at the same time.
When choosing a lens, what counts is the interplay of sensor size, pixel size, field of view and working distance - the focal length alone says little. If you tell us your camera and inspection task, we check the combination and, if needed, suggest suitable lighting to go with it. The dimensional drawing and the STEP model are included.
