OPT-MHK40/4.2-0.10X M72 lens
Manufacturer part number: OPT-MHK40/4.2-0.10X
Series: Hawk-Zeilenobjektive
- Objektivbauart
- Zeilen-Festbrennweitenobjektiv
- Zeilenkamera
- 8k / 16k at 3.5 µm/7 µm µm
- Bildkreis
- Ø58 mm
- Abbildungsmaßstab
- 0.04 – 0.18 ×
- Focal length
- 40 mm
- Arbeitsabstand
- 217.5 – 996.9 mm
- Mount
- M72
- Aperture
- F4.2 - F22
- Verzeichnung
- 0.87 % | 0.85 % | 0.82 %
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-MHK40/4.2-0.10X |
|---|---|
| Zeilenauflösung | 16k (3.5 µm) | 8k (7 µm) |
| Focal Length(mm) | 40 mm |
| Working Distance(mm) | 217.5 – 996.9 mm |
| Aperture(F/#) | F4.2 – F22 |
| Magnification（X） | 0.04 – 0.18 × |
| Coaxial | no |
| Image Circle Ø(mm) | Ø58 mm |
| Distortion | 0.87 % | 0.85 % | 0.82 % |
| Flange Focal Distance(mm) | 12 mm |
| Object To Image Distance(mm) | 1121.6 mm | 522.7 mm | 347.7 mm |
| Mount | M72 |
| Filter Thread | M72×0.75-6H |
| Lens Type | Zeilenkameraobjektiv |
| Auflösungsvermögen | 3.5 µm |
| Gewicht | 1.00 kg |
| Abmessungen | 78 × 119 |
| Betriebstemperatur | -20 °C – +60 °C |
| Lens type | Zeilenobjektiv |
| Bauart | Line Scan |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

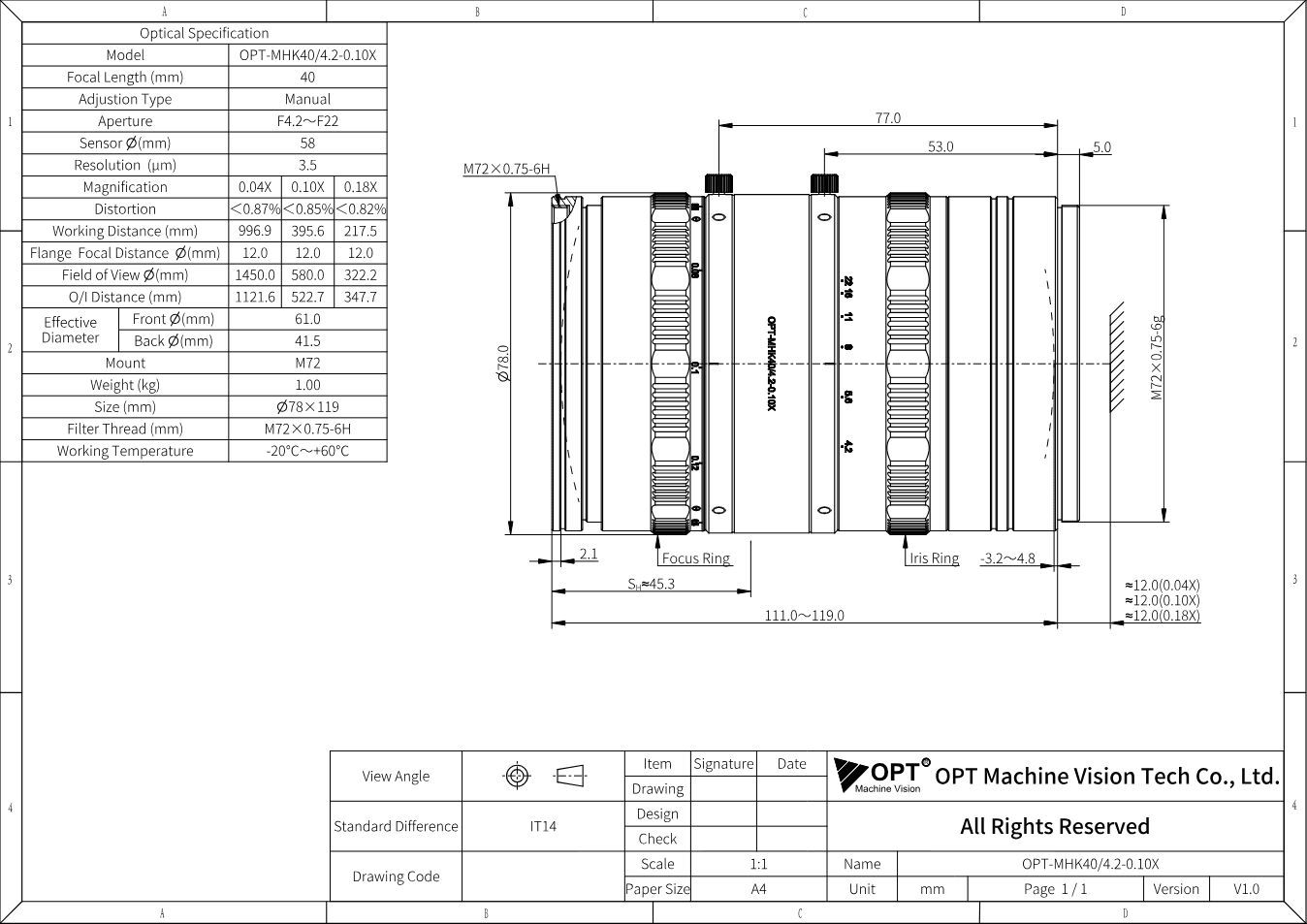

Dimensional drawing
Documents
- Download datasheet
Datasheet mit Maßzeichnung OPT-MHK40/4.2-0.10X (PDF)
Datasheet · EN · 204 KB
- Download datasheet
Optische Daten (MTF) OPT-MHK40/4.2-0.10X
Datasheet · EN · 3893 KB
- Download datasheet
Hawk-Zeilenobjektive - Serienbroschüre OPT
Datasheet · EN · 1576 KB
- Download
3D-Modell OPT-MHK40/4.2-0.10X (STEP)
Technical drawing · EN · 6798 KB
Description
With focal length 40 mm, aperture F4.2 - F22, image circle Ø58 mm, OPT-MHK40/4.2-0.10X belongs to the series “Hawk Line Scan Lenses” by OPT Machine Vision. Also: working distance 217.5 - 996.9 mm, M72.
With an image circle of Ø63 mm (up to Ø126 mm on the VHK116/8.6-2.0X), the Hawk series covers line scan cameras with 16k/3.5 µm, 12k/5 µm and 8k/7 µm. Magnifications from 0.02 to 2.1×, distortion down to 0.005 % and uniform illumination without edge fall-off. It is intended for high-resolution line scan cameras in display, film and battery inspection.
When choosing a lens, what counts is the interplay of sensor size, pixel size, field of view and working distance - the focal length alone says little. If you tell us your camera and inspection task, we check the combination and, if needed, suggest suitable lighting to go with it. The dimensional drawing and the STEP model are included.
