OPT-VHK116/5.4-0.67X V58 lens
Manufacturer part number: OPT-VHK116/5.4-0.67X
Series: Hawk-Zeilenobjektive
- Objektivbauart
- Zeilen-Festbrennweitenobjektiv
- Zeilenkamera
- 8k / 12k / 16k at 3.5 µm/5 µm/7 µm µm
- Bildkreis
- Ø63 mm
- Abbildungsmaßstab
- 0.64 × | 0.67 × | 0.7 ×
- Focal length
- 116 mm
- Arbeitsabstand
- 219.58 (0.64×) | 212.58 (0.67×) | 204.38 (0.7×)
- Mount
- V58 (V-Mount)
- Aperture
- F5.4 - F45
- Verzeichnung
- 0.023 % (0.64×) | 0.018 % (0.67×) | 0.058 % (0.7×)
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-VHK116/5.4-0.67X |
|---|---|
| Zeilenauflösung | 16k (3.5 µm) | 12k (5 µm) | 8k (7 µm) |
| Focal Length(mm) | 116 mm |
| Aperture(F/#) | F5.4 – F45 |
| Image Circle Ø(mm) | Ø63 mm |
| Mount | V58 |
| Weight(kg) | 0.68 kg |
| Size(mm) | Ø68.00 × 67.00 |
| Filter Thread | M58×P0.75 |
| Working Temperature | -20 °C – 60 °C |
| Distortion | 0.023 % (0.64 ×) | 0.018 % (0.67 ×) | 0.058 % (0.7 ×) |
| Magnification（X） | 0.64 × | 0.67 × | 0.7 × |
| Working Distance(mm) | 219.58 (0.64 ×) | 212.58 (0.67 ×) | 204.38 (0.7 ×) |
| Flange Focal Distance(mm) | 168 (0.64 ×) | 171 (0.67 ×) | 174.8 (0.7 ×) |
| Object To Image Distance(mm) | 454.6 (0.64 ×) | 450.6 (0.67 ×) | 446.2 (0.7 ×) |
| Coaxial | no |
| Lens Type | Zeilenkameraobjektiv |
| Lens type | Zeilenobjektiv |
| Bauart | Line Scan |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

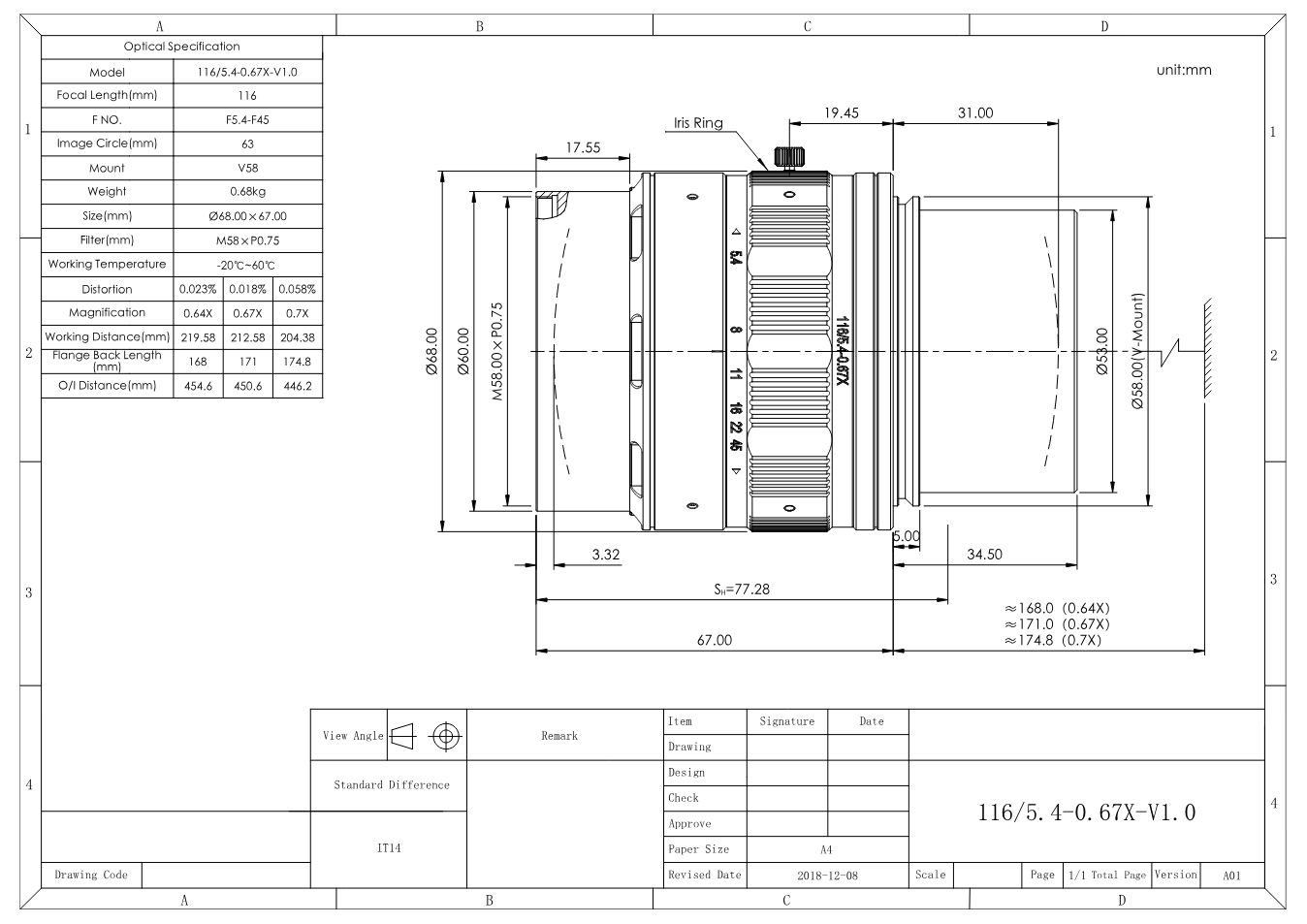

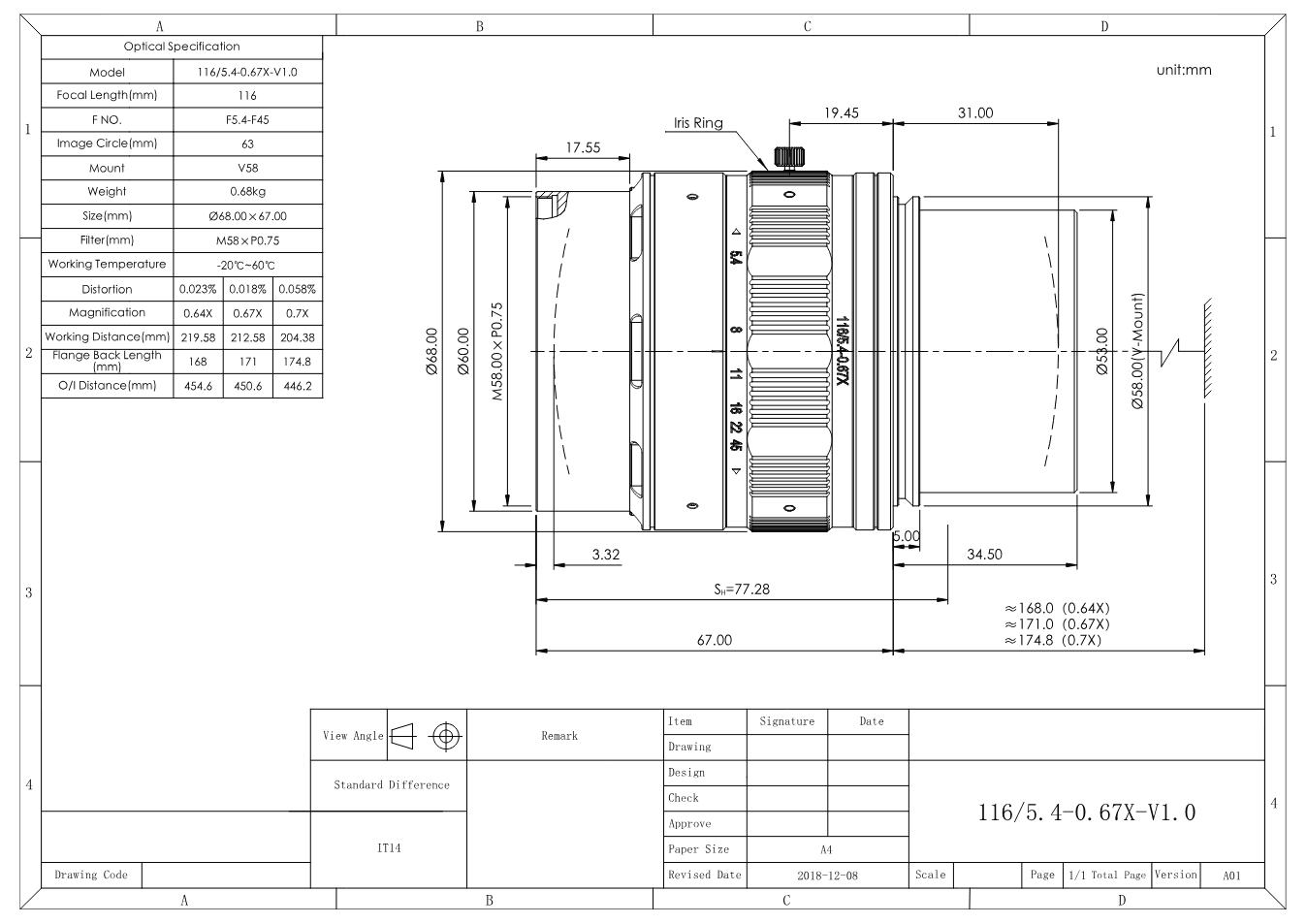

Dimensional drawing
Documents
- Download datasheet
Datasheet mit Maßzeichnung OPT-VHK116/5.4-0.67X (PDF)
Datasheet · EN · 93 KB
- Download datasheet
Optische Daten (MTF) OPT-VHK116/5.4-0.67X
Datasheet · EN · 364 KB
- Download datasheet
Hawk-Zeilenobjektive - Serienbroschüre OPT
Datasheet · EN · 2 MB
- Download
3D-Modell OPT-VHK116/5.4-0.67X (STEP)
Technical drawing · EN · 6 MB
Description
The OPT-VHK116/5.4-0.67X is listed in OPT's series “Hawk Line Scan Lenses” with focal length 116 mm, aperture F5.4 - F45, image circle Ø63 mm. In addition: working distance 219.58 (0.64 ×) | 212.58 (0.67 ×) | 204.38 (0.7 ×), V58.
With an image circle of Ø63 mm (up to Ø126 mm on the VHK116/8.6-2.0X), the Hawk series covers line scan cameras with 16k/3.5 µm, 12k/5 µm and 8k/7 µm. Magnifications from 0.02 to 2.1×, distortion down to 0.005 % and uniform illumination without edge fall-off. It is intended for high-resolution line scan cameras in display, film and battery inspection.
When choosing a lens, what counts is the interplay of sensor size, pixel size, field of view and working distance - the focal length alone says little. If you tell us your camera and inspection task, we check the combination and, if needed, suggest suitable lighting to go with it. The dimensional drawing and the STEP model are included.
