OPT-C3514-5M-IR C-Mount lens
Manufacturer part number: OPT-C3514-5M-IR
Series: 5-MP-IR-Objektive mit langem Arbeitsabstand
- Focal length
- 35 mm
- Max. Sensorformat
- 2/3" (3.45 µm)
- Mount
- C-Mount
- Mindestobjektdistanz (MOD)
- 390 mm
- Aperture
- F1.4 - F16
- Filtergewinde
- M30.5 × 0.5
- Resolution
- 5 MP
- Fokusbereich (ab Objektivvorderseite)
- 390 mm up to ∞
- Fokuseinstellung
- Manual
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-C3514-5M-IR |
|---|---|
| Image Resolution(µm) | 3.45 µm |
| Mount | C-Mount |
| Sensor Format | 2/3" |
| Focal Length(mm) | 35 mm |
| Adjustion Type | manuell |
| Aperture(F/#) | F1.4 – F16 |
| Working Distance(mm) | 390 mm – ∞ |
| Distortion | <0.1 % |
| Weight(kg) | 0.13 kg |
| Back Focal Length(mm) | 12.75 mm |
| Size(mm) | Ø37.00 × 52.00 |
| Filter Thread | M30.5×P0.5 |
| Working Temperature | -20 °C – +60 °C |
| Field Angle | 1/3": 7.7°×5.9°×9.7° (H×V×D) | 1/2.5": 9.3°×7.0°×11.6° (H×V×D) | 1/1.8": 11.6°×8.9°×14.5° (H×V×D) | 2/3": 13.7°×11.4°×17.8° (H×V×D) |
| Max. Field Of View（H*V） | 1/3": 7.7°×5.9° | 1/2.5": 9.3°×7.0° | 1/1.8": 11.6°×8.9° | 2/3": 13.7°×11.4° |
| Max. Sensorformat | 2/3" |
| Auflösung | 5 MP |
| Pixelgröße | 3.45 µm |
| Mindestobjektdistanz (MOD) | 390 mm |
| Spektralbereich | Nicht angegeben |
| Verzeichnung (max.) | < 0.1 % |
| Bildkreis | Nicht angegeben |
| Blendensteuerung | Nicht angegeben |
| Vibrationsfest | No |
| Baulänge | 52 mm |
| Durchmesser | Ø 37 mm |
| Lens type | Entocentric |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

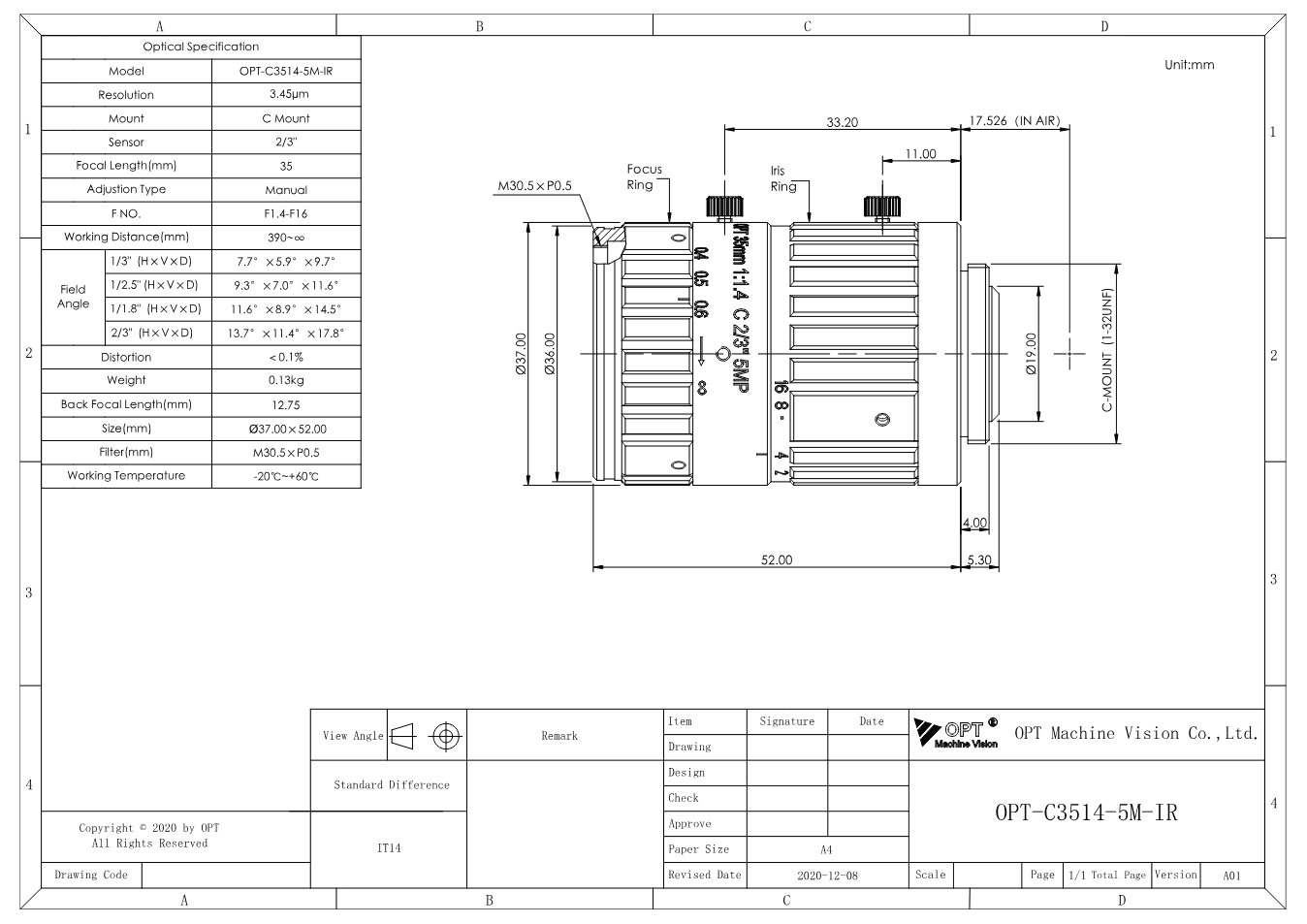

Dimensional drawing
Documents
- Download datasheet
Datasheet mit Maßzeichnung OPT-C3514-5M-IR (PDF)
Datasheet · EN · 148 KB
Description
The OPT-C3514-5M-IR is listed in OPT's series “5 MP IR Lenses with Long Working Distance” with focal length 35 mm, aperture F1.4 - F16, sensor up to 2/3". Further key data: working distance 390 mm - ∞, C-Mount.
These variants of the 5 MP series are designed for long working distances - depending on the model from 390 mm, 600 mm, 1 m or 5 m to infinity - and corrected for 2/3" sensors with 3.45 µm pixels. Distortion is in the hundredths of a percent range. They are used when the camera has to sit far from the object: above conveyor belts, on gantries, behind protective windows.
When choosing a lens, what counts is the interplay of sensor size, pixel size, field of view and working distance - the focal length alone says little. If you tell us your camera and inspection task, we check the combination and, if needed, suggest suitable lighting to go with it. The dimensional drawing is included.
