OPT-C5024-10M C-Mount lens
Manufacturer part number: OPT-C5024-10M
Series: 10-MP-Festbrennweiten
- Focal length
- 50 mm
- Max. Sensorformat
- 2/3" | 1.1" (3.45 µm)
- Mount
- C-Mount
- Mindestobjektdistanz (MOD)
- 550 mm
- Aperture
- F2.4 - F22
- Filtergewinde
- M37.5 × 0.5
- Resolution
- 10 MP
- Fokusbereich (ab Objektivvorderseite)
- 550 mm up to ∞
- Fokuseinstellung
- Manual
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-C5024-10M |
|---|---|
| Image Resolution(µm) | 3.45 µm |
| Mount | C-Mount |
| Sensor Format | 2/3" | 1.1" |
| Focal Length(mm) | 50 mm |
| Adjustion Type | manuell |
| Aperture(F/#) | F2.4 – F22 |
| Working Distance(mm) | 550 mm – ∞ |
| Distortion | <0.1 % |
| Weight(kg) | 0.13 kg |
| Back Focal Length(mm) | 16.24 mm |
| Size(mm) | Ø40.00 × 49.10 |
| Filter Thread | M37.5×P0.5 |
| Working Temperature | -20 °C – +60 °C |
| Field Angle | 2/3": 10.0°×7.6°×12.2° (H×V×D) | 1.1": 15.6°×11.8°×19.4° (H×V×D) |
| Magnification（X） | 0 – 0.091 × |
| Coaxial | no |
| Image Circle Ø(mm) | Ø17.6 mm (1.1") |
| Max. Field Of View（H*V） | 10.0°×7.6° | 15.6°×11.8° |
| Flange Focal Distance(mm) | 17.526 mm |
| Max. Sensorformat | 2/3" | 1.1" |
| Auflösung | 10 MP |
| Pixelgröße | 3.45 µm |
| Mindestobjektdistanz (MOD) | 550 mm |
| Spektralbereich | Nicht angegeben |
| Verzeichnung (max.) | < 0.1 % |
| Blendensteuerung | Nicht angegeben |
| Vibrationsfest | No |
| Baulänge | 49.1 mm |
| Durchmesser | Ø 40 mm |
| Lens type | Entocentric |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

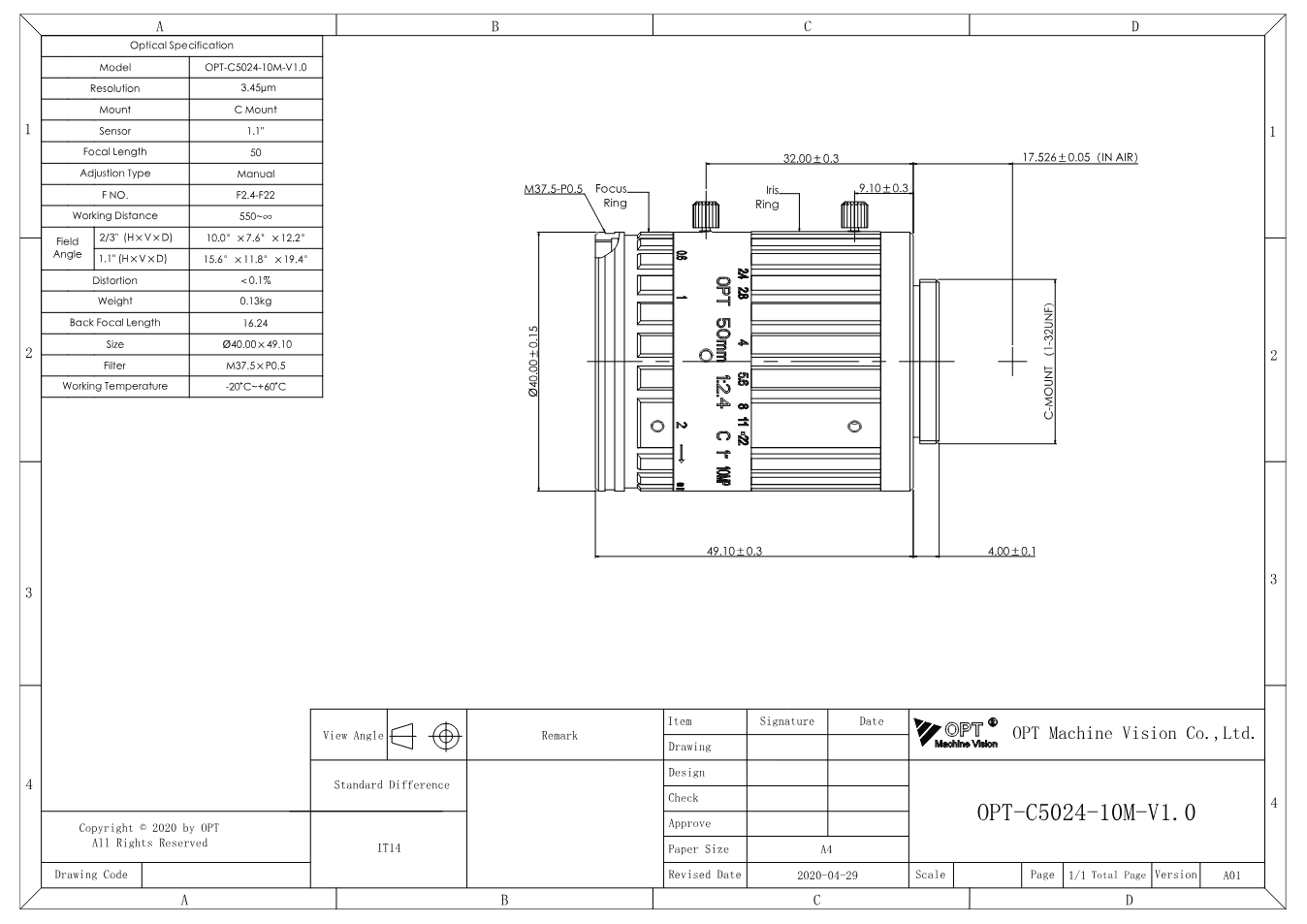

Dimensional drawing
Documents
- Download datasheet
Datasheet mit Maßzeichnung OPT-C5024-10M (PDF)
Datasheet · EN · 66 KB
- Download datasheet
Optische Daten (MTF) OPT-C5024-10M
Datasheet · EN · 2 MB
- Download datasheet
10-MP-Festbrennweiten - Serienbroschüre OPT
Datasheet · EN · 1012 KB
- Download
3D-Modell OPT-C5024-10M (STEP)
Technical drawing · EN · 4 MB
Description
The OPT-C5024-10M is listed in OPT's series “10 MP Fixed Focal Length Lenses” with focal length 50 mm, aperture F2.4 - F22, image circle Ø17.6 mm (1.1"). Also: working distance 550 mm - ∞, C-Mount.
The 10 MP series suits most 10 megapixel industrial cameras and 12 MP cameras with pixels from 3.45 µm on sensors up to 1.1". The floating focus keeps the resolution consistently high from infinity to the close-up limit. Typical tasks are large-area measurements, electronics and display inspection, and applications in which one camera has to capture a large field with fine detail.
When choosing a lens, what counts is the interplay of sensor size, pixel size, field of view and working distance - the focal length alone says little. If you tell us your camera and inspection task, we check the combination and, if needed, suggest suitable lighting to go with it. The dimensional drawing and the STEP model are included.
