HIKROBOT
lens MVL-LF3540M-M58-65MP
Manufacturer part number: MVL-LF3540M-M58-65MP · 310102877
- Focal length
- 35 mm
- Mount
- M58 × P0.75
- Mindestobjektdistanz (MOD)
- 150 mm
- Aperture
- F4.0 - F22
- Filtergewinde
- M67 × 0.75
- Resolution
- 65 MP
- Fokusbereich (ab Objektivvorderseite)
- 150 mm up to ∞
- Fokuseinstellung
- Manual
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MVL-LF3540M-M58-65MP |
|---|---|
| Focal length | 35 mm |
| Resolution | 65 MP |
| Pixel size | 3.6 µm (calculated) |
| Mount | M58 × P0.75 |
| Flange back length | 11.48 mm |
| Working distance | 150 mm to inf mm (tolerance: ±5 mm) |
| Magnification | 0.001x to 0.2x |
| F-number | F4.0 to F22 |
| Field of view | D 61.9° (calculated) |
| Optical distortion | 0.5 % |
| Image size | Ø42 mm |
| Filter thread | M67 × P0.75 |
| Iris control | Manual |
| Focus control | Manual |
| Length | 131.1 mm |
| Diameter | Ø69.4 mm |
| Weight | 760.84 g (1.7 lb.) |
| Temperature | −10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Minimum object distance (MOD) | 150 mm |
| Lens type | Entocentric |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

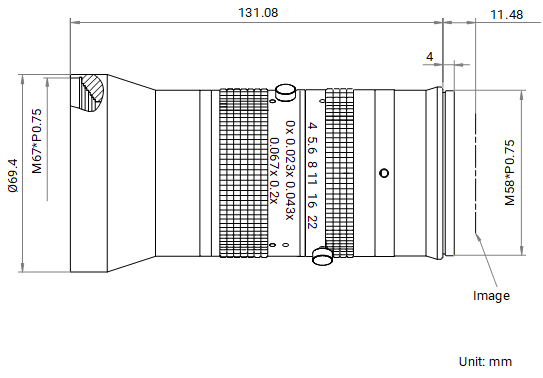

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Objektiv MVL-LF3540M-M58-65MP
Datasheet · DE · 387 KB
- Download
Technical drawing HikRobot Objektiv MVL-LF3540M-M58-65MP
Technical drawing · DE · 3 MB
More HIKROBOT products in this category
Description
Key Feature - Adopts high-precision lens for 65MP area scan cameras. - Provides excellent consistency of image clarity and low distortion. - Provides max. image size Ø42 mm.
