HIKROBOT
lens MVL-KF3540-25MP
Manufacturer part number: MVL-KF3540-25MP · 310102163
- Focal length
- 35 mm
- Max. Sensorformat
- 1.2"
- Mount
- C-Mount
- Mindestobjektdistanz (MOD)
- 120 mm
- Aperture
- F4.0
- Filtergewinde
- M35.5 × 0.5
- Resolution
- 25 MP
- Fokuseinstellung
- Manual
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MVL-KF3540-25MP |
|---|---|
| Focal length | 35 mm |
| Max. sensor format | 1.2" |
| Resolution | 25 MP |
| Pixel size | 2.7 µm (calculated) |
| Mount | C-mount |
| Flange back length | 17.526 mm |
| Minimum object distance | 0.12 m |
| F-number | F4.0 |
| Field of view | D (19.3 mm): 29.3°; H (14.6 mm): 22.4°; V (12.63 mm): 19.5° |
| Optical distortion | −0.03 % |
| Image size | Ø19.3 mm (1.2”) |
| Filter thread | M35.5 × P0.5 |
| Iris control | Fixed |
| Focus control | Manual |
| Vibration resistant | Yes |
| Length | 45.06 mm to 58.05 mm |
| Diameter | Ø38 mm |
| Weight | 135.5 g (0.3 lb.) |
| Temperature | −10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Lens type | Entocentric |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

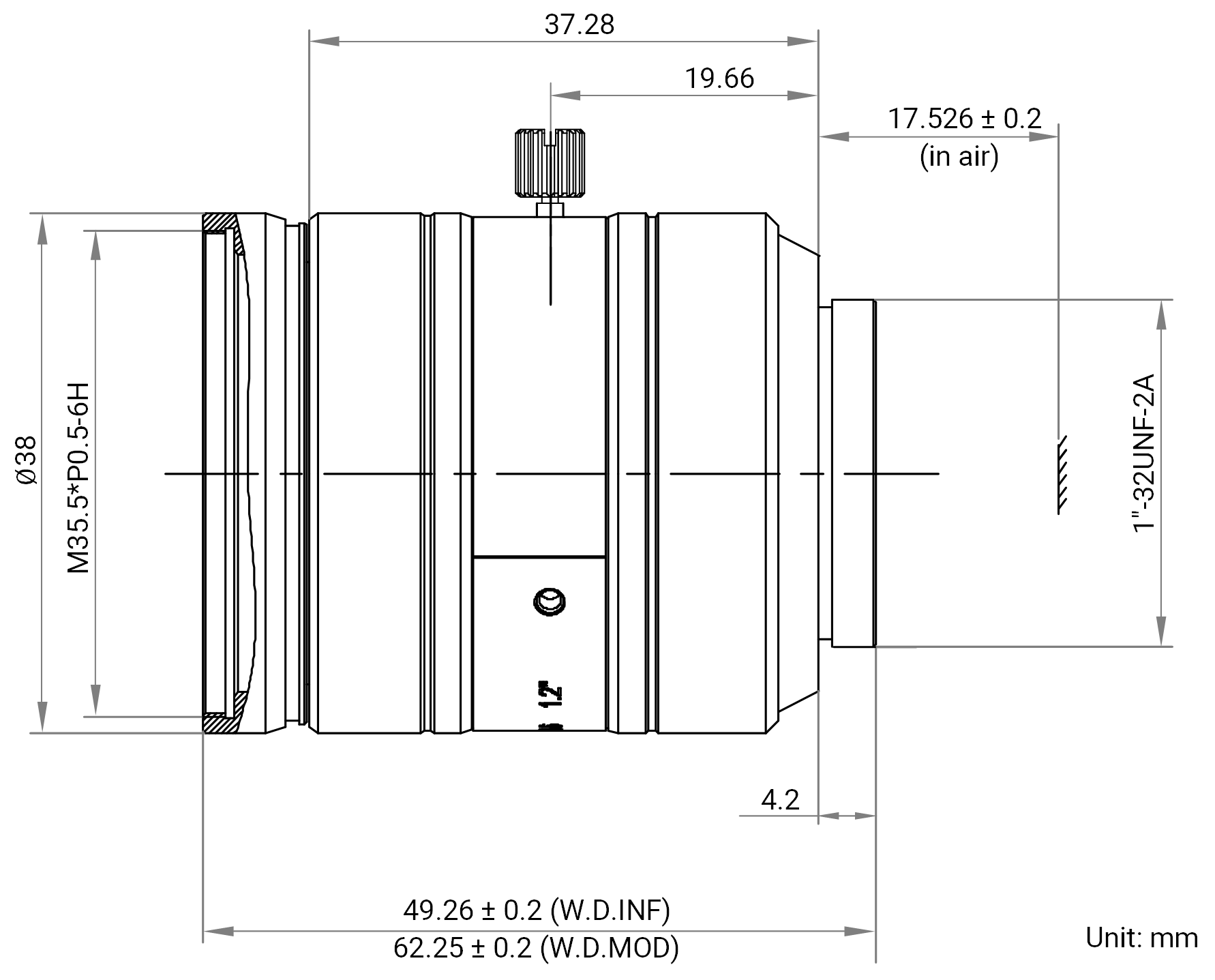

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Objektiv MVL-KF3540-25MP
Datasheet · DE · 518 KB
- Download
Technical drawing HikRobot Objektiv MVL-KF3540-25MP
Technical drawing · DE · 2 MB
Accessories
More HIKROBOT products in this category
Description
Key Feature - Ultra high resolution, high consistency in image center and edge clarity - 1.2" image size, F4 fixed iris, structurally stable - Ultra low distortion, high peripheral brightness ratio - Maintain excellent optical properties at different object distances - Excellent resistance to vibration, impact, and high and low temperature stability
