HIKROBOT
lens MVL-KF7528M-12MP
Manufacturer part number: MVL-KF7528M-12MP · 102204408
- Focal length
- 75 mm
- Max. Sensorformat
- 1"
- Mount
- C-Mount
- Mindestobjektdistanz (MOD)
- 500 mm
- Aperture
- F2.8 - F22
- Filtergewinde
- M39 × 0.5
- Resolution
- 12 MP
- Fokuseinstellung
- Manual
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MVL-KF7528M-12MP |
|---|---|
| Focal length | 75 mm |
| Max. sensor format | 1" |
| Resolution | 12 MP |
| Pixel size | 3.2 µm (calculated) |
| Mount | C-mount |
| Flange back length | 17.526 mm |
| Minimum object distance | 0.5 m |
| F-number | F2.8 to F22 |
| Field of view | D (15.86 mm): 12.2°; H (12.45 mm): 9.8°; V (9.83 mm): 7.3° |
| Optical distortion | 0.75 % |
| Image size | Ø16 mm (1") |
| Filter thread | M39 × 0.5 |
| Iris control | Manual |
| Focus control | Manual |
| Length | 60.3 mm |
| Diameter | Ø42 mm |
| Weight | 187 g (0.4 lb.) |
| Temperature | −10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Lens type | Entocentric |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

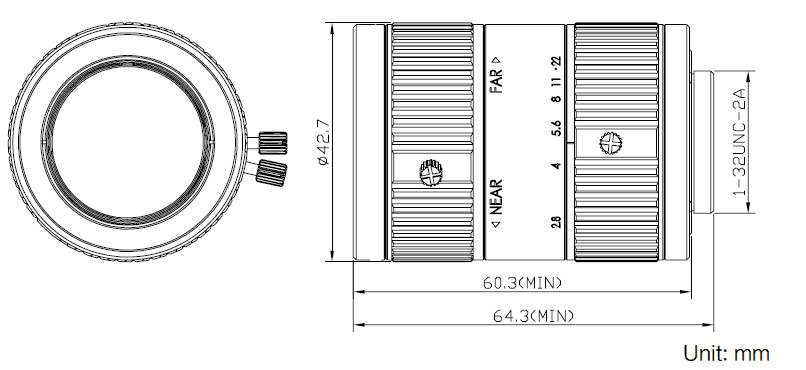

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Objektiv MVL-KF7528M-12MP
Datasheet · DE · 386 KB
- Download
Technical drawing HikRobot Objektiv MVL-KF7528M-12MP
Technical drawing · DE · 2 MB
Accessories
More HIKROBOT products in this category
Description
Key Feature - Provides high resolution and consistency of image clarity. - Provides low distortion and high peripheral brightness ratio. - Provides maximum image size Φ16mm. - Maintains excellent optical characteristics at different object distances
