HIKROBOT
lens MVL-HF1624M-10MP
Manufacturer part number: MVL-HF1624M-10MP · 310100682
- Focal length
- 16 mm
- Max. Sensorformat
- 1/1.8"
- Mount
- C-Mount
- Mindestobjektdistanz (MOD)
- 100 mm
- Aperture
- F2.4 - F16
- Filtergewinde
- M27 × 0.5
- Resolution
- 10 MP
- Fokuseinstellung
- Manual
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MVL-HF1624M-10MP |
|---|---|
| Focal length | 16 mm |
| Max. sensor format | 1/1.8" |
| Resolution | 10 MP |
| Pixel size | 2.0 µm (calculated) |
| Mount | C-mount |
| Flange back length | 17.526 mm |
| Minimum object distance | 0.1 m |
| F-number | F2.4 to F16 |
| Field of view | D (8.96 mm): 30.17°; H (7.38 mm): 25.07°; V (4.92 mm): 16.92° |
| Spectral range | Visible and near-infrared |
| Optical distortion | −0.02 % |
| Image size | Ø9 mm (1/1.8") |
| Filter thread | M27 × 0.5 |
| Iris control | Manual |
| Focus control | Manual |
| Vibration resistant | Yes |
| Length | 38.36 mm |
| Diameter | Ø29 mm |
| Weight | 70.2 g (0.2 lb.) |
| Temperature | −10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Lens type | Entocentric |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

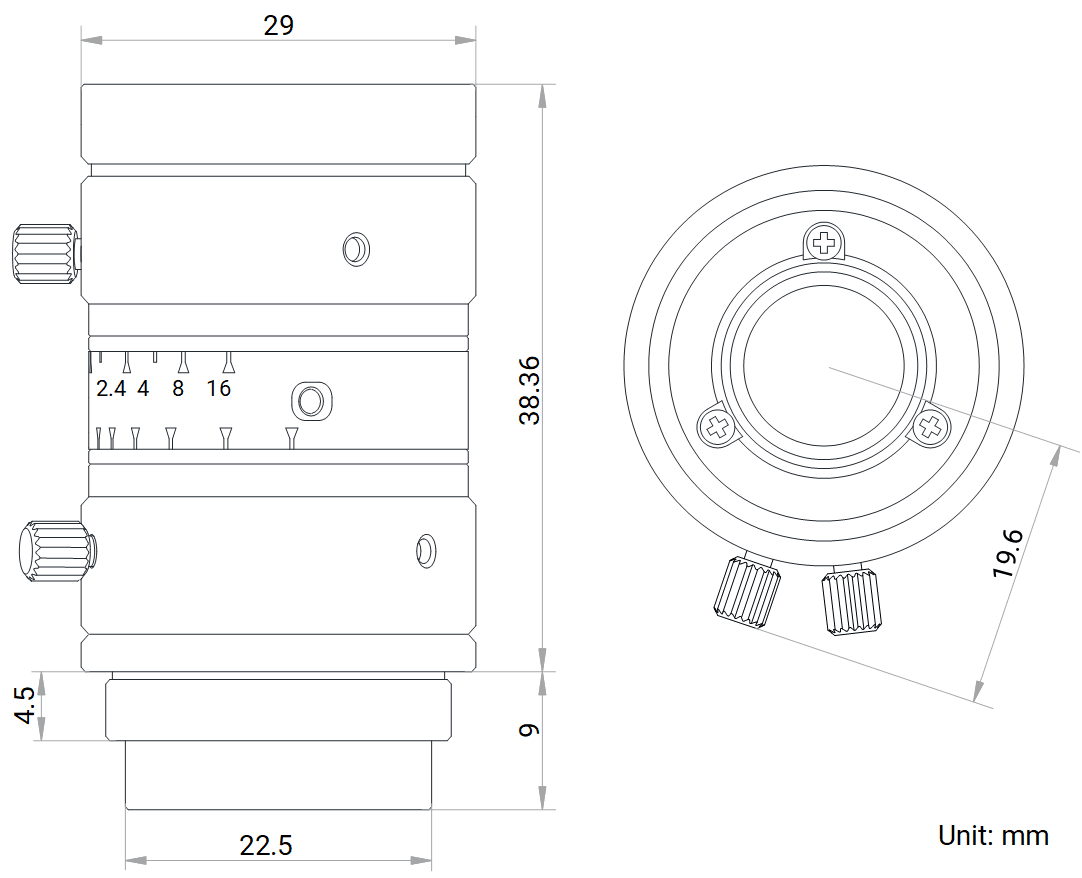

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Objektiv MVL-HF1624M-10MP
Datasheet · DE · 1 MB
- Download
Technical drawing HikRobot Objektiv MVL-HF1624M-10MP
Technical drawing · DE · 758 KB
Accessories
More HIKROBOT products in this category
Description
Key Feature - Ultra high resolution and consistency of image clarity - Bigger aperture, lower distortion and higher relative illumination rate - Achromatic optical system design, Better imaging performance with color camera - Excellent vibration resistance performance, optical axis shifting within pixel level - Good stability at high and low temperature - Multilayer and broadband coating design, compatible with visible and near-infrared applications
