HIKROBOT
M12-lens MVL-HF0828-05S
Manufacturer part number: MVL-HF0828-05S · 102202206
- Focal length
- 8 mm
- Max. Sensorformat
- 1/1.8"
- Mount
- S-Mount (M12)
- Mindestobjektdistanz (MOD)
- 120 mm
- Aperture
- F2.8
- Fokusbereich (ab Objektivvorderseite)
- 120 - 900 mm
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MVL-HF0828-05S |
|---|---|
| Focal length | 8 mm |
| Max. sensor format | 1/1.8" |
| Mount | S-Mount |
| TTL | 24.9 ~ 25.5 mm |
| Working distance | 120 ~ 900 mm |
| F-number | F2.8 |
| Field of view | D(8.86 mm):58°; H(7.37 mm):50°; V(4.91 mm):34° |
| TV distortion | <0.3 % |
| Image size | Φ9 mm(1/1.8") |
| Length | 19 mm |
| Diameter | Ø17 mm |
| Temperature | -10 ~ 50 °C |
| Certification | RoHS2.0 |
| Minimum object distance (MOD) | 120 mm |
| Lens type | Entocentric |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

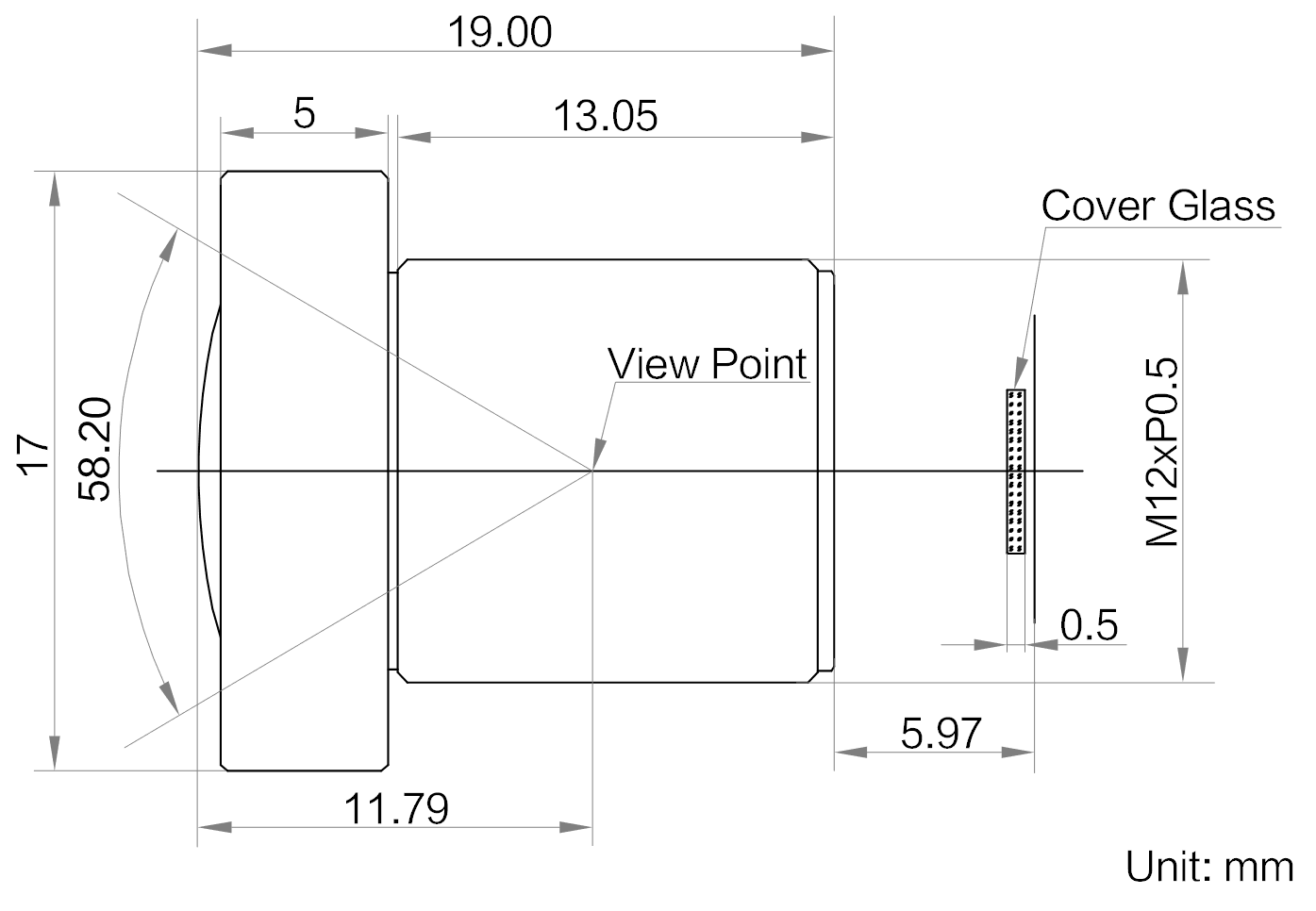

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot M12-Objektiv MVL-HF0828-05S
Datasheet · DE · 568 KB
- Download
Technical drawing HikRobot M12-Objektiv MVL-HF0828-05S
Technical drawing · DE · 227 KB
More HIKROBOT products in this category
Description
Key Feature - Optimization design for machine vision - High resolution, High consistency of picture definition - Low Distortion, High relative illumination - S-Mount (M12 * 0.5), Easy system integration
