HIKROBOT
M12-lens MVL-HF1628-05S
Manufacturer part number: MVL-HF1628-05S · 102202752
- Focal length
- 16 mm
- Max. Sensorformat
- 1/1.8"
- Mount
- S-Mount (M12)
- Mindestobjektdistanz (MOD)
- 100 mm
- Aperture
- F2.8
- Fokusbereich (ab Objektivvorderseite)
- 100 - 850 mm
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MVL-HF1628-05S |
|---|---|
| Focal length | 16 mm |
| Max. sensor format | 1/1.8" |
| Mount | S-Mount |
| TTL | 19.3 ~ 22.2 mm |
| Working distance | 100 ~ 850 mm |
| F-number | F2.8 |
| Field of view | D(8.86 mm):31°; H(7.37 mm):26°; V(4.91 mm):17° |
| TV distortion | <0.1 % |
| Image size | Φ9 mm(1/1.8") |
| Length | 13.78 mm |
| Diameter | Ø14 mm |
| Temperature | -10 ~ 50 °C |
| Certification | RoHS 2.0 |
| Minimum object distance (MOD) | 100 mm |
| Lens type | Entocentric |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

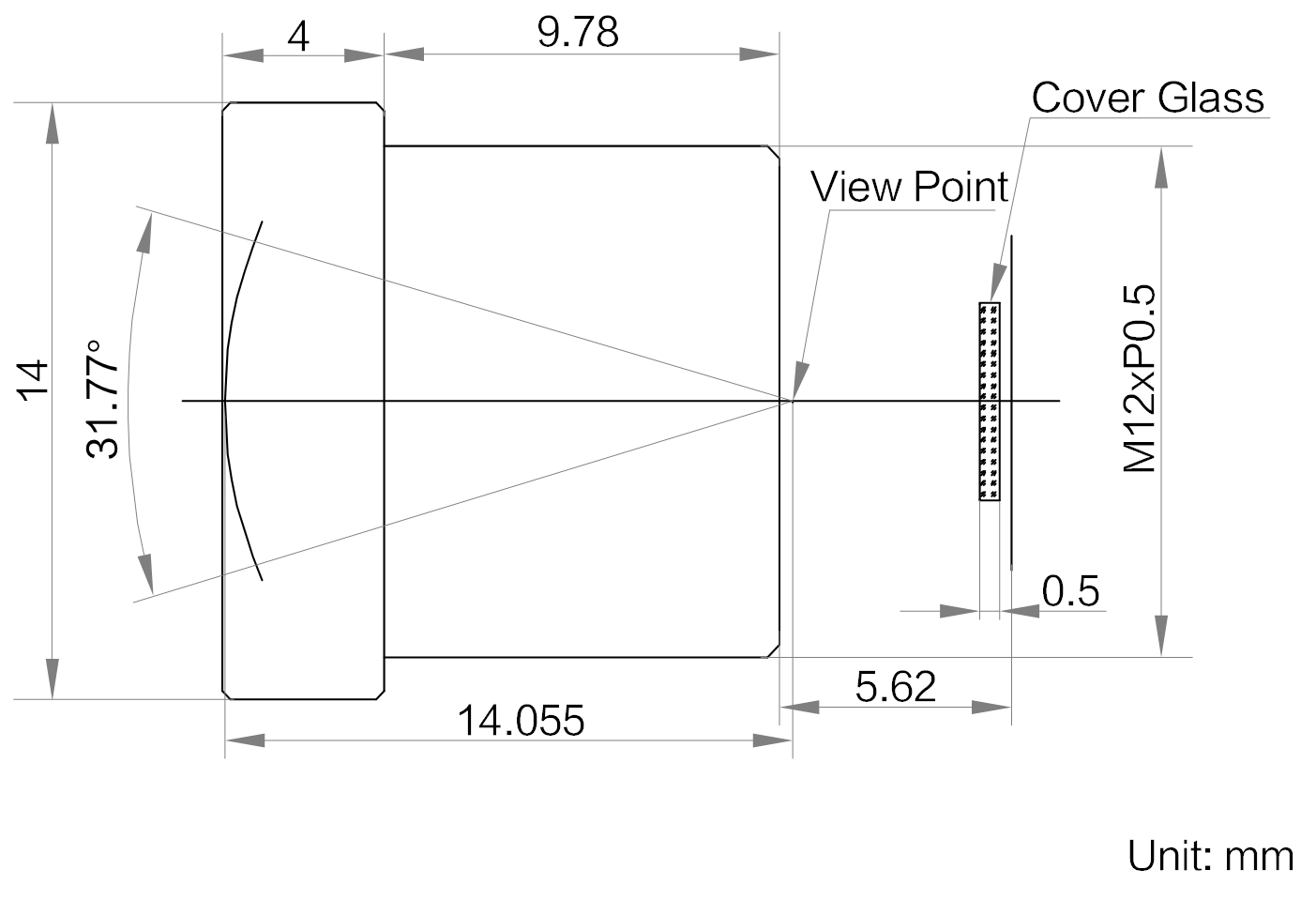

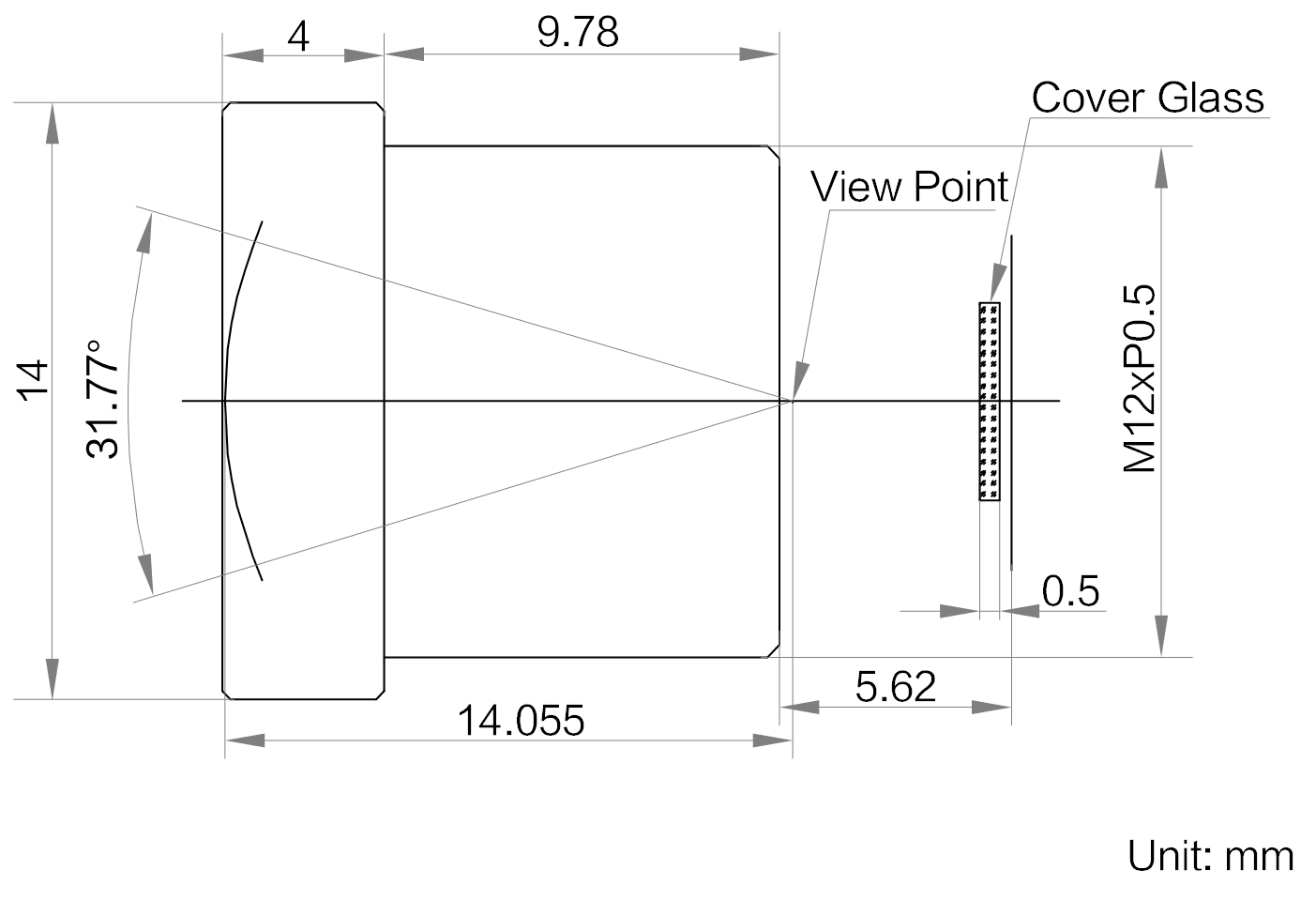

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot M12-Objektiv MVL-HF1628-05S
Datasheet · DE · 394 KB
- Download
Technical drawing HikRobot M12-Objektiv MVL-HF1628-05S
Technical drawing · DE · 268 KB
More HIKROBOT products in this category
Description
Key Feature - Optimization design for machine vision - High resolution, high consistency of picture definition - Low Distortion, high relative illumination - S-Mount (M12 * 0.5), easy system integration
