OPT-CDF02 Mehrwinkel-Objektiv von OPT

OPT

OPT-CDF02 360°-lens

Manufacturer part number: OPT-CDF02

Series: 360°-Sonderobjektive

Inspektionsart
External inspection
Prüffläche
Outer jacket
Objektivbauart
Cylindrical Multi-angle Inspection Lens (45° side view)
Prüfobjektgröße
Ø 30 – 50 mm × 5 – 20 mm
Sensor format
ab 2/3"
Arbeitsabstand
20 – 45 mm
Mount
C-Mount
Illumination
integrated (ring light)

Price and availability on request

Request this item directly by email

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part numberOPT-CDF02
Lens TypeMehrwinkel-Objektiv (45° Seitenansicht)
Sensor Format2/3"
Image Circle Ø(mm)Ø6.6 mm
Working Distance(mm)20 – 45 mm
Aperture(F/#)F6 – F16
Object Size (Selection Guide)normal object: Ø30 mm at depth <20 mm | Ø50 mm at depth <5 mm; perforated object: Ø<30 mm at depth <10 mm
AnschlussC-Mount
AbmessungenØ166 × 217.2
Integrierte BeleuchtungJa (Ringlicht im Objektivkopf)

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

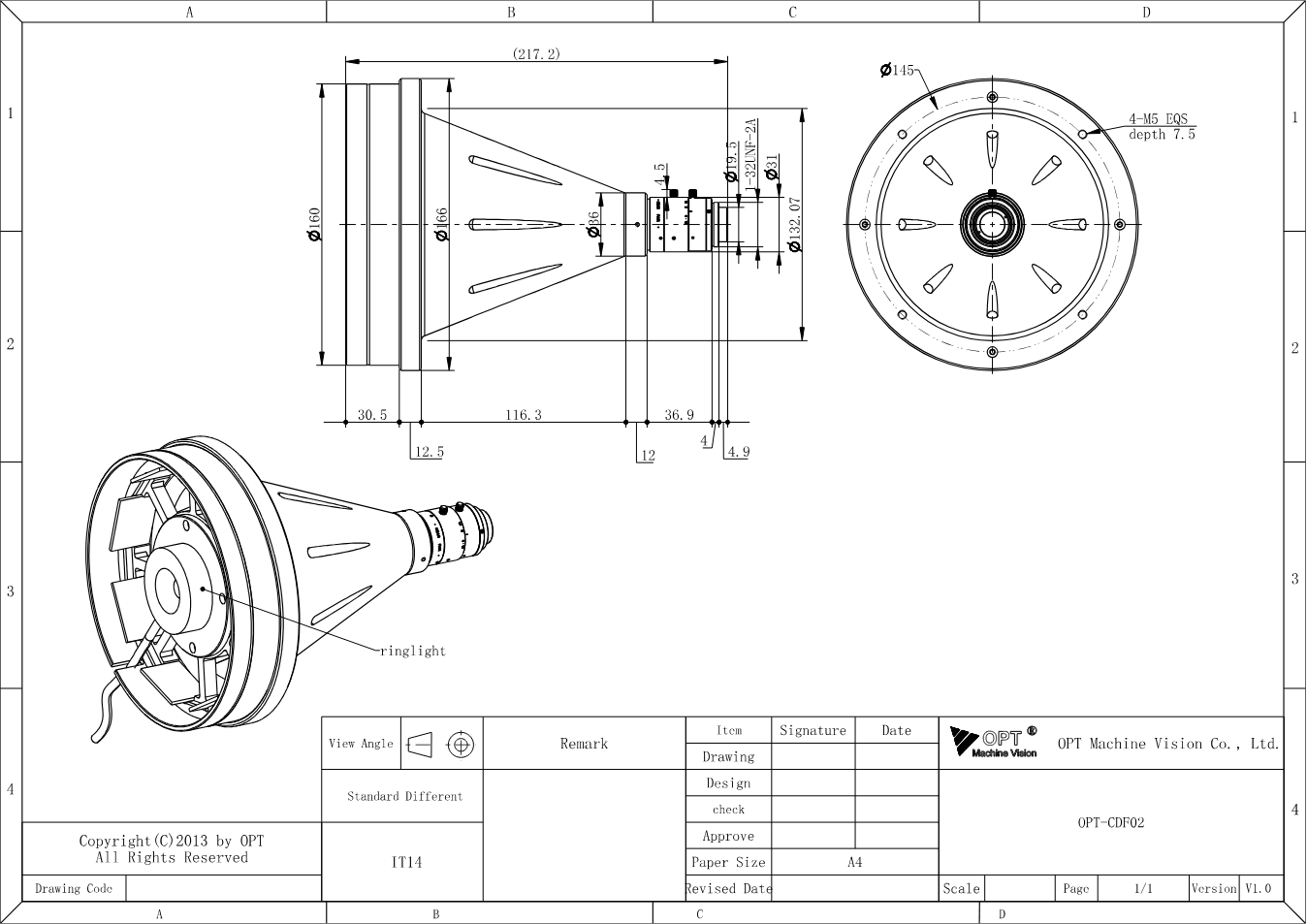

Dimensional drawing

Maßzeichnung OPT-CDF02

Documents

Description

With aperture F6 - F16, image circle Ø6.6 mm, working distance 20 - 45 mm, OPT-CDF02 belongs to the series “360° Special Lenses” by OPT Machine Vision.

The CDF lenses use catadioptric optics to image the lateral surface of an object in a single image - 360° all-round view with one camera instead of four. The CDF01 looks at the lateral surface from the side, the CDF02 additionally at the top and inner wall at 45°. Made for bottle necks, closure caps, screws, threads and pharmaceutical containers.

When choosing a lens, what counts is the interplay of sensor size, pixel size, field of view and working distance - the focal length alone says little. If you tell us your camera and inspection task, we check the combination and, if needed, suggest suitable lighting to go with it. The dimensional drawing is included.
