OPT-CDF01 360°-Objektiv von OPT

OPT

OPT-CDF01 C-Mount lens

Manufacturer part number: OPT-CDF01

Series: 360°-Sonderobjektive

Inspektionsart
External inspection
Prüffläche
Outer jacket
Objektivbauart
360° Side View Lens (catadioptric)
Prüfobjektgröße
Ø 15 – 30 mm × 12.4 – 24.7 mm
Sensor format
ab 1/2"
Arbeitsabstand
7 – 40 mm
Mount
C-Mount

Price and availability on request

Request this item directly by email

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part numberOPT-CDF01
Lens Type360°-Rundumsicht (katadioptrisch)
Sensor Format1/2"
Image Circle Ø(mm)Ø4.8 mm
Working Distance(mm)7 – 40 mm
Aperture(F/#)F6 – F16
MountC-Mount
Object Size (Selection Guide)Ø15 mm × 12.4 mm (WD 38.2, F16) | Ø20 × 16.5 (WD 30.6, F>12) | Ø25 × 20.6 (WD 23.0, F>10) | Ø30 × 24.7 (WD 15.3, F>8)
AbmessungenØ143 × 108.6

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

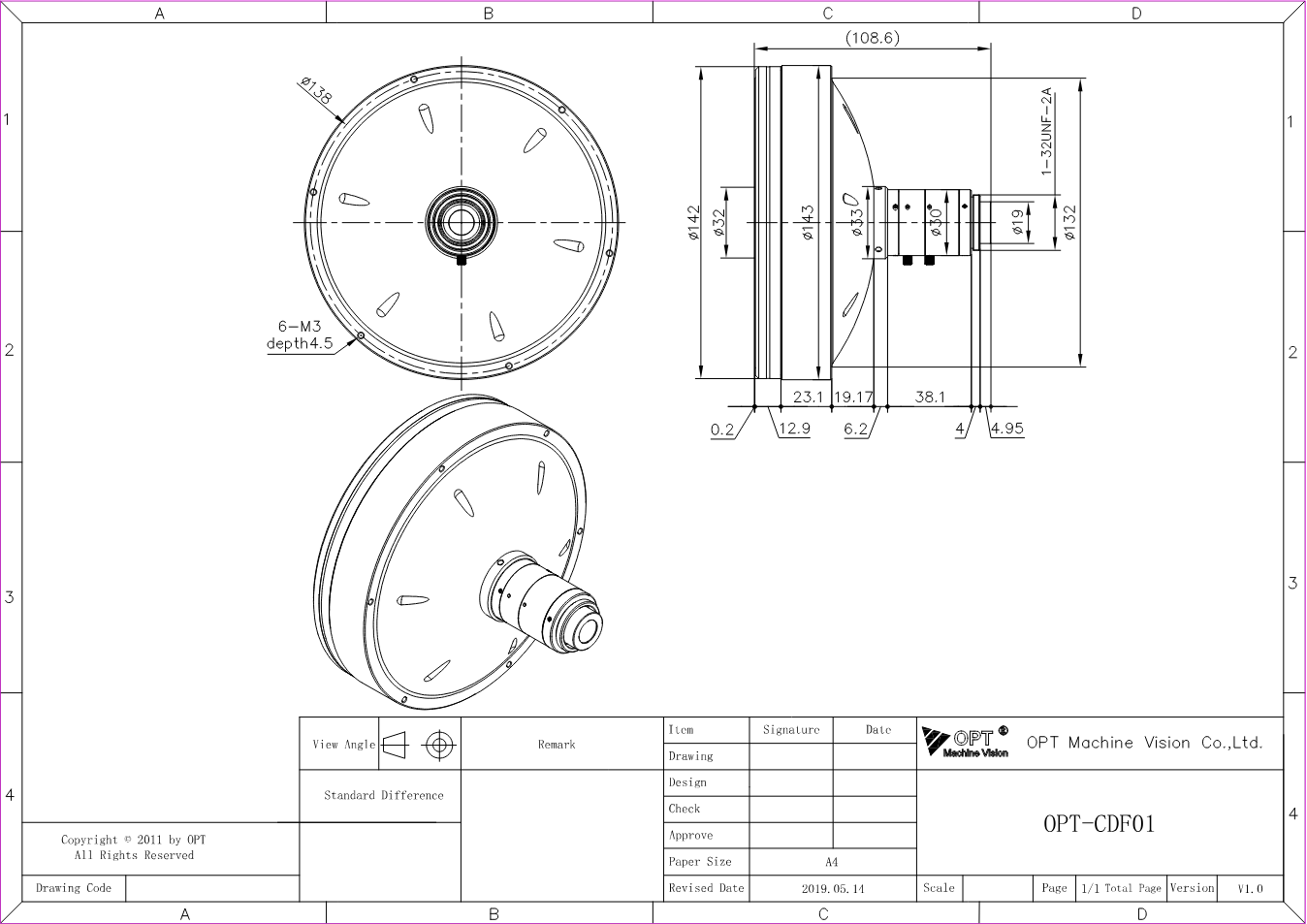

Dimensional drawing

Maßzeichnung OPT-CDF01

Documents

Description

OPT-CDF01 is a 360° lens from the series “360° Special Lenses” by OPT: aperture F6 - F16, image circle Ø4.8 mm, working distance 7 - 40 mm. In addition: C-Mount.

The CDF lenses use catadioptric optics to image the lateral surface of an object in a single image - 360° all-round view with one camera instead of four. The CDF01 looks at the lateral surface from the side, the CDF02 additionally at the top and inner wall at 45°. Made for bottle necks, closure caps, screws, threads and pharmaceutical containers.

When choosing a lens, what counts is the interplay of sensor size, pixel size, field of view and working distance - the focal length alone says little. If you tell us your camera and inspection task, we check the combination and, if needed, suggest suitable lighting to go with it. The dimensional drawing is included.
