HIKROBOT

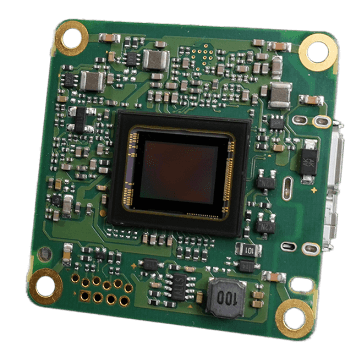

Board-level camera MV-CB120-10UC-B V4
Manufacturer part number: MV-CB120-10UC-B V4 · 306300670
- Resolution
- 12 MP
- Pixels
- 4032 × 3036
- Max. frame rate
- 30 fps
- Color / mono
- Color
- Shutter type
- Rolling Shutter
- Sensor format
- 1/1.7"
- Pixel size
- 1.85 µm × 1.85 µm
- Interface
- USB 3.0
- Lens mount
- No lens mount
- Global reset
- Yes
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CB120-10UC-B V4 |
|---|---|
| Type | 12MP Board Level Camera, USB3, IMX226, V4, Color, Bare Board |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Sony® IMX226 |
| Pixel size | 1.85 µm × 1.85 µm |
| Sensor size | 1/1.7" |
| Resolution | 4032 × 3036 |
| Max. frame rate | 30 fps @ 4032 × 3036 Bayer RG 8 |
| Dynamic range | 64.6 dB |
| SNR | 39.9 dB |
| Gain | 0 dB to 20 dB |
| Exposure time | 33 µs to 2 sec |
| Exposure mode | Supports Off/ Once/ Continuous exposure mode, and Global Reset. |
| Mono/color | Color |
| Pixel format | Mono8/10/12 Bayer RG 8/10/10Packed/12/12Packed YUV422Packed, YUV422_YUYV_Packed RGB8, BGR8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB 3.0 |
| Digital I/O | Bi-directional non-isolated I/O × 2 (Line 2, Line 5) |
| Power supply | USB 3.0 power supply |
| Power consumption | Typ. 2 W @ 5 VDC (USB power supply) |
| Lens mount | None |
| Dimension | 32.5 mm × 32.5 mm × 1.6 mm (1.3" × 1.3" × 0.1") |
| Weight | Approx. 10 g (0.02 lb.) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20 % RH to 80 % RH (no condensation) |
| Client software | MVS or third-party software with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenICam |
| Certification | CE, RoHS, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

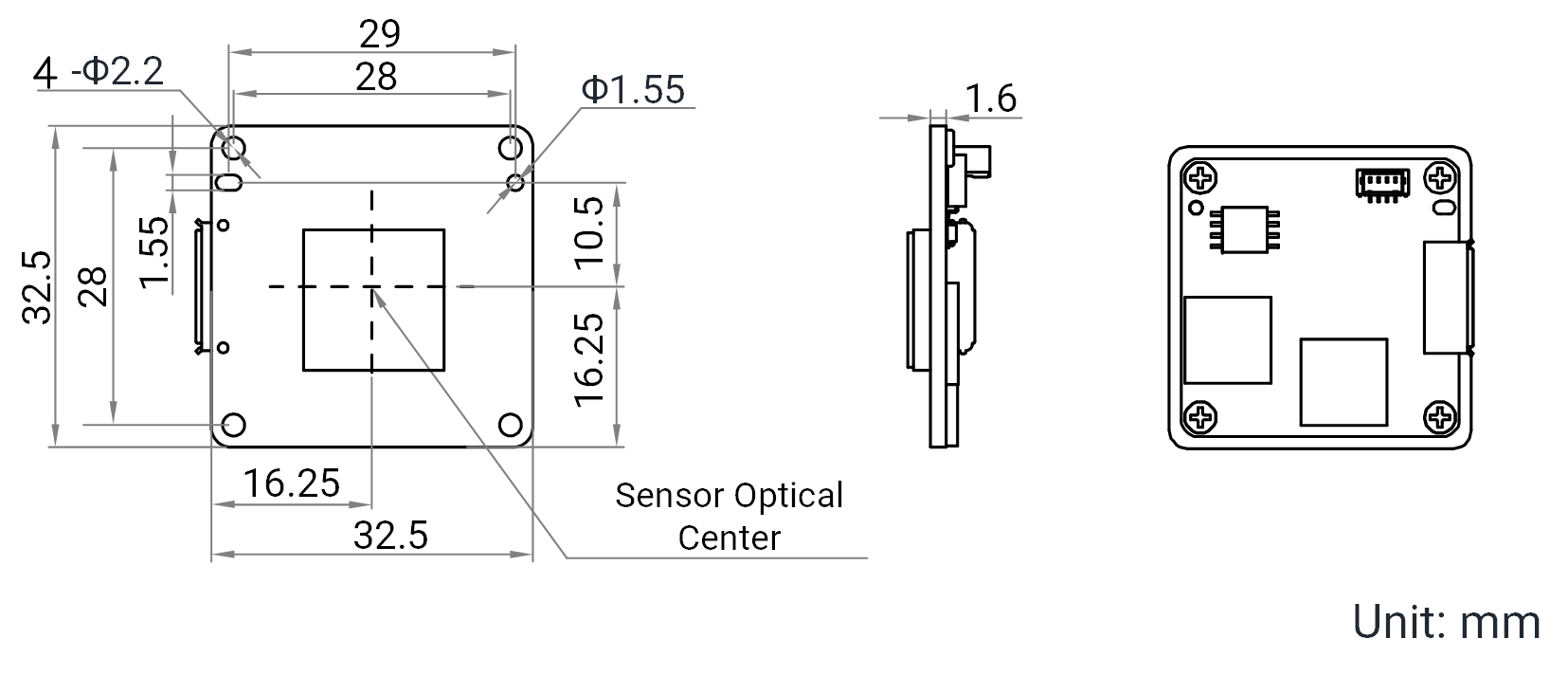

Dimensional drawing
