HIKROBOT

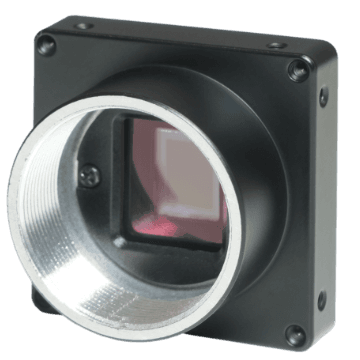

Board-level camera MV-CB060-10UC-C
Manufacturer part number: MV-CB060-10UC-C
- Resolution
- 6 MP
- Pixels
- 3072 × 2048
- Max. frame rate
- 60.9 fps
- Color / mono
- Color
- Shutter type
- Rolling Shutter
- Sensor format
- 1/1.8"
- Pixel size
- 2.4 µm × 2.4 µm
- Interface
- USB 3.0
- Lens mount
- C-Mount
- Global reset
- Yes
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CB060-10UC-C |
|---|---|
| Type | 6MP Board Level Camera, USB3, IMX178, Color, C-mount, V4 |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Sony® IMX178 |
| Pixel size | 2.4 µm × 2.4 µm |
| Sensor size | 1/1.8" |
| Resolution | 3072 × 2048 |
| Max. frame rate | 60.9 fps @ 3072 × 2048 Bayer RG 8 |
| Dynamic range | 66 dB |
| SNR | 41.5 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | 8 µs to 1 sec |
| Exposure mode | Off/ Once/ Continuous exposure mode, supports Global Reset and Trigger Rolling |
| Mono/color | Color |
| Pixel format | Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB 3.0 |
| Digital I/O | Bi-directional non-isolated I/O × 2 (Line 2, Line 5) |
| Power supply | USB 3.0 power supply |
| Power consumption | Typ. 1.8 W @ 5 VDC |
| Lens mount | C-mount |
| Dimension | 35 mm × 35 mm × 8.6 mm (1.4" × 1.4" × 0.3") |
| Weight | Approx. 30 g (0.07 lb.) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20 % to 80 % RH (no condensation) |
| Client software | MVS or third-party software with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenICam |
| Certification | CE, RoHS, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

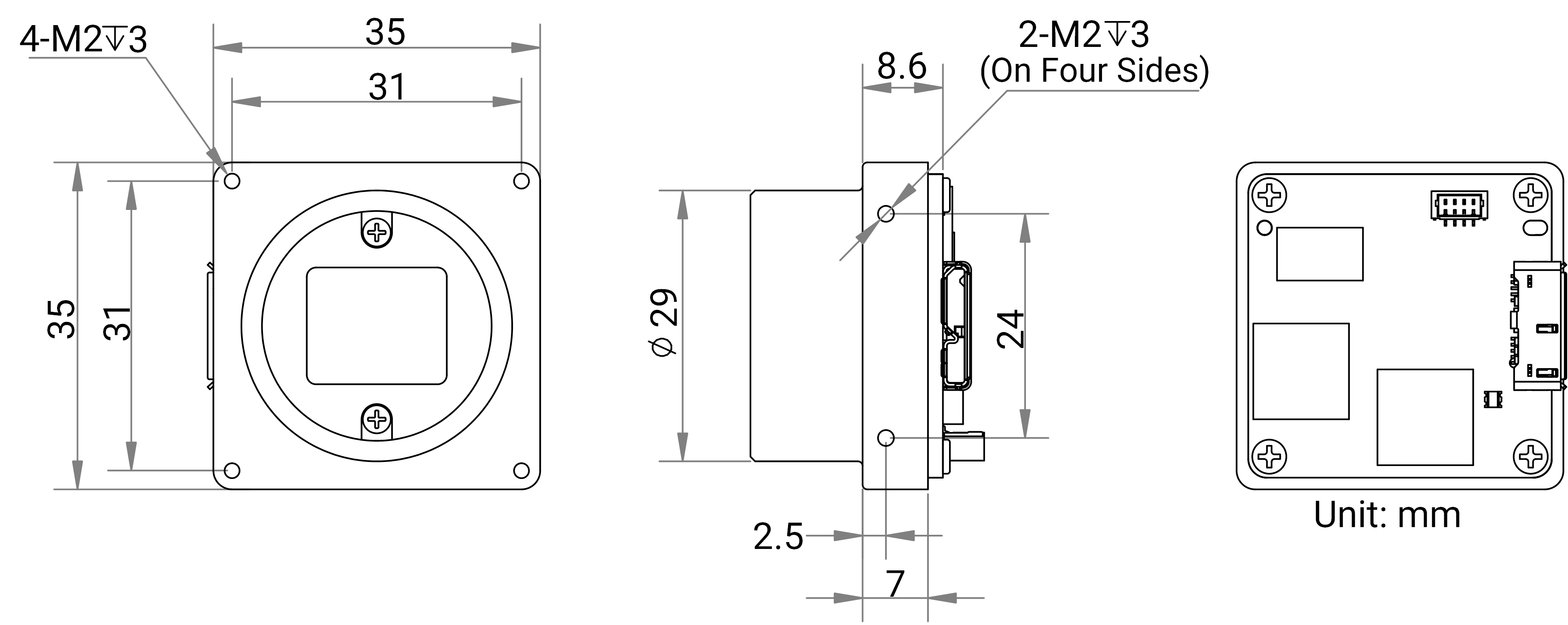

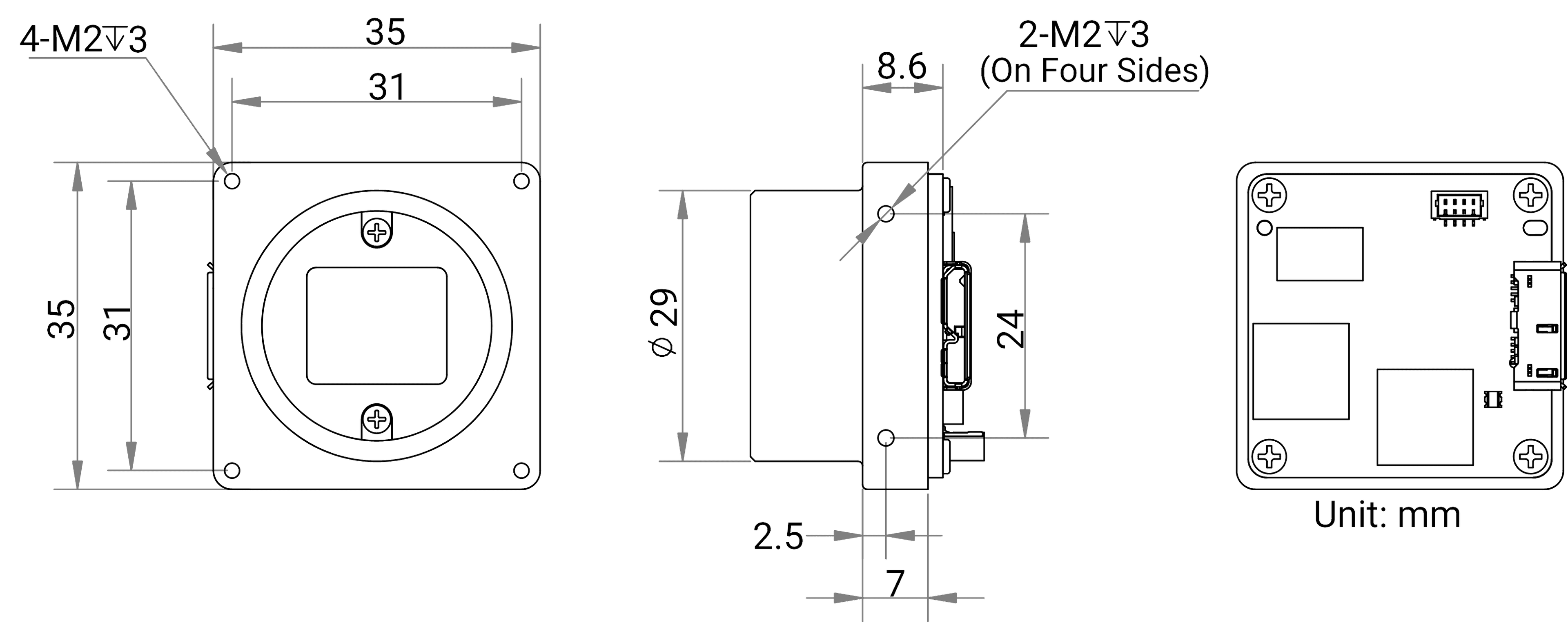

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Platinenkamera MV-CB060-10UC-C
Datasheet · EN · 721 KB
- Download
Technical drawing HikRobot Platinenkamera MV-CB060-10UC-C
Technical drawing · EN · 2 MB
Software and SDK (13)
- Download
Software / Firmware V2.0.35 HikRobot Platinenkamera MV-CB060-10UC-C
Software / firmware · EN · 986 KB
- Download
MVS V5.1.0 (Windows)
Software / firmware · EN · 738 MB
- Download
MVS V5.1.0 (Linux) (aarch64)
Software / firmware · EN · 296 MB
- Download
MVS V5.1.0 (Linux) (x86)
Software / firmware · EN · 268 MB
- Download
MVS V5.1.0 (Linux) (x86_64)
Software / firmware · EN · 368 MB
- Download
MVS V5.0.0 (MacOS)
Software / firmware · EN · 86 MB
- Download
Industrial Camera SDK V4.8.1 Runtime Package (Windows)
Software / firmware · EN · 75 MB
- Download
Industrial Camera SDK V4.8.1 Runtime Package (Linux)
Software / firmware · EN · 146 MB
- Download
VisionMaster V4.4.0 Sample File
Software / firmware · EN · 956 MB
- Download
VisionMaster V4.4.0 Basic Package
Software / firmware · EN · 1775 MB
- Download
VisionMaster V4.4.0 DL Package (Supplemental) (2,7 GB)
Software / firmware · EN
- Download
MVS V5.0.2 (Windows)
Software / firmware · EN · 456 MB
- Download
MVS V5.0.2 (Linux)
Software / firmware · EN · 778 MB
- Download
Manual HikRobot Platinenkamera MV-CB060-10UC-C
Manual · EN · 3 MB
Accessories
Data cables(15)
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B-USB-A), 1 m
Micro-B male (with screw) · 1 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B-USB-A), 3 m
Micro-B male (with screw) · 3 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B-USB-A), 0,5 m
Micro-B male (with screw) · 0.5 m
Datenkabel
HIKROBOT
USB 3.0 Flexkabel (Micro-B-USB-A), 3 m
Micro-B male (with screw) · 3 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B-USB-A), 2 m
Micro-B male (with screw) · 2 m
Datenkabel
HIKROBOT
SuperFlex USB 3.0 Datenkabel (Micro-B-USB-A), 15 m
Micro-B male (with screw) · 15 m
Datenkabel
HIKROBOT
SuperFlex USB 3.0 Datenkabel (Micro-B-USB-A), 5 m
Micro-B male (with screw) · 5 m
Datenkabel
HIKROBOT
SuperFlex USB 3.0 Datenkabel (Micro-B-USB-A), 3 m
Micro-B male (with screw) · 3 m
Datenkabel
HIKROBOT
SuperFlex USB 3.0 Datenkabel (Micro-B-USB-A), 20 m
Micro-B male (with screw) · 20 m
Datenkabel
HIKROBOT
SuperFlex USB 3.0 Datenkabel (Micro-B-USB-A), 7 m
Micro-B male (with screw) · 7 m
Datenkabel
HIKROBOT
SuperFlex USB 3.0 Datenkabel (Micro-B-USB-A), 10 m
Micro-B male (with screw) · 10 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B Winkel-USB-A), 3 m
Micro-B male (with screw) ,Angle (down) · 3 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B Winkel-USB-A), 0,5 m
Micro-B male (with screw) ,Angle (down) · 0.5 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B Winkel-USB-A), 1 m
Micro-B male (with screw) ,Angle (down) · 1 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B Winkel-USB-A), 2 m
Micro-B male (with screw) ,Angle (down) · 2 m
Datenkabel
Description
Key Feature - Compact design for flexible installation. - Supports auto or manual adjustment of gain, exposure time, and white balance, and manual adjustment of Gamma correction, LUT, etc. - Supports HDR function with different exposure time and gain. - Supports hardware trigger, software trigger, free run, etc. - Compatible with USB3 Vision Protocol, GenlCam standard, and the third-party software based on these protocol and standard.
