Board-level camera MV-CB020-61UM-S-F
Manufacturer part number: MV-CB020-61UM-S-F
- Resolution
- 2 MP
- Pixels
- 1624 × 1240
- Max. frame rate
- 99 fps
- Color / mono
- Mono
- Shutter type
- Global Shutter
- Sensor format
- 1/1.7"
- Pixel size
- 4.5 µm × 4.5 µm
- Interface
- USB 3.0
- Lens mount
- S-Mount (M12)
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CB020-61UM-S-F |
|---|---|
| Type | 2MP Board Level Camera, USB3.0, FPC, Mono, M12-mount |
| Sensor type | CMOS, global shutter |
| Sensor model | Stacked BSI |
| Pixel size | 4.5 µm × 4.5 µm |
| Sensor size | 1/1.7" |
| Resolution | 1624 × 1240 |
| Max. frame rate | 99 fps @ 1624 × 1240 Mono 8 |
| Dynamic range | 73.9 dB |
| SNR | 42.4 dB |
| Gain | High full well capacity: 0 dB to 12.8 dB High sensitivity: 0 dB to 24 dB |
| Exposure time | High full well capacity: 30 µs to 10 sec High sensitivity: 5 µs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode, supports Trigger Width |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | Bi-directional non-isolated I/O × 2 (Line 2, Line 5) |
| Power supply | 5 V, USB 3.0 power supply |
| Power consumption | Typ. 1.5 W @ 5 VDC (USB power supply) |
| Lens mount | M12-mount |
| Dimension | 29 mm × 29 mm × 31.3 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 37 g (0.08 lb.) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20 % RH to 80 % RH (no condensation) |
| Client software | MVS or third-party software with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenICam |
| Certification | KC, CE, RoHS |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

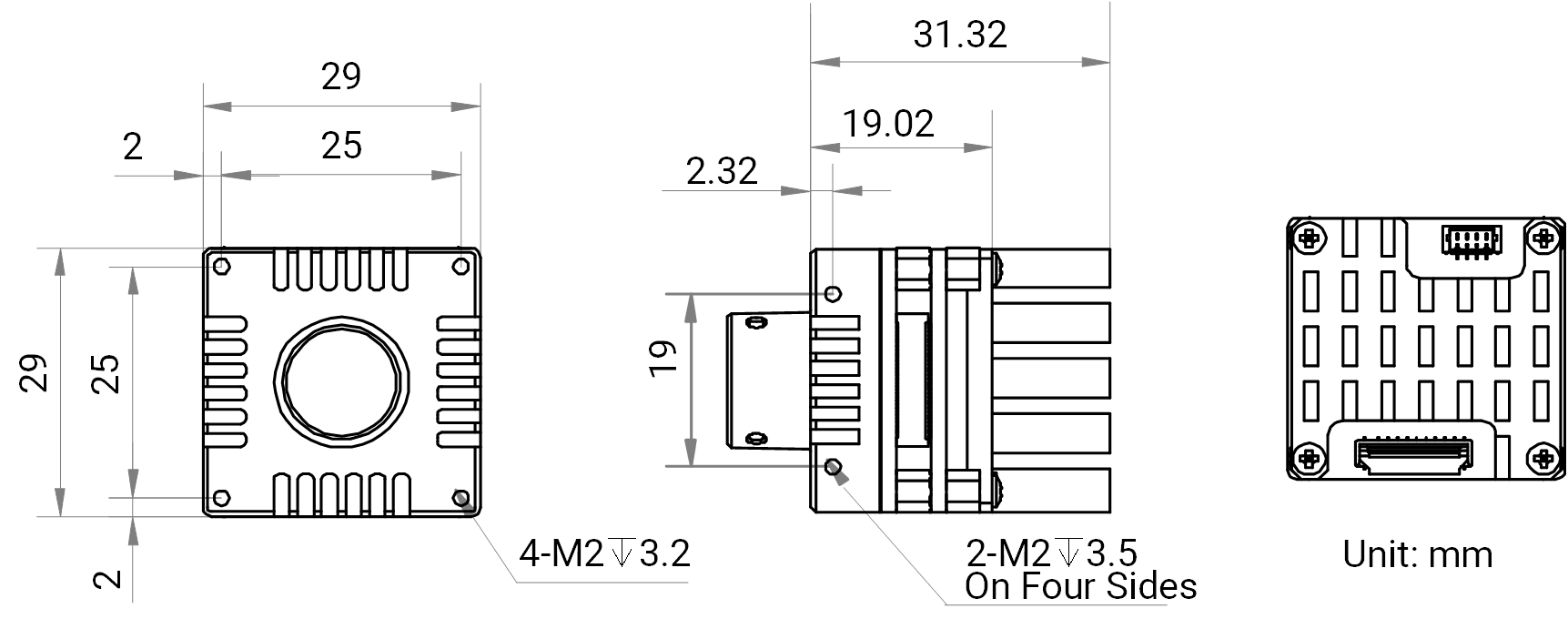

Dimensional drawing
