HIKROBOT
Area scan camera MV-CH050-60UM
Manufacturer part number: MV-CH050-60UM · 306302591
- Resolution
- 5 MP
- Pixels
- 2448 × 2048
- Max. frame rate
- 79 fps
- Color / mono
- Mono
- Shutter type
- Global Shutter
- Sensor format
- 2/3"
- Pixel size
- 3.45 µm × 3.45 µm
- Interface
- USB 3.0
- Lens mount
- C-Mount
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CH050-60UM |
|---|---|
| Type | 5MP Area Scan Camera, USB3, Mono |
| Sensor type | CMOS, global shutter |
| Sensor model | Stacked BSI |
| Pixel size | 3.45 µm × 3.45 µm |
| Sensor size | 2/3" |
| Resolution | 2448 × 2048 |
| Max. frame rate | 79 fps @ 2448 × 2048 Mono 8 |
| Dynamic range | 73.9 dB |
| SNR | 42.4 dB |
| Gain | LCG: 0 dB to 13 dB HCG: 0 dB to 24 dB |
| Exposure time | LCG: 30 µs to 10 sec HCG: 5 µs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports USB 3.0 power supply |
| Power consumption | Typ. 1.9 W @ 5 VDC (USB 3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 80 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 50 °C (–14 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Client software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenICam |
| Certification | CE, RoHS, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

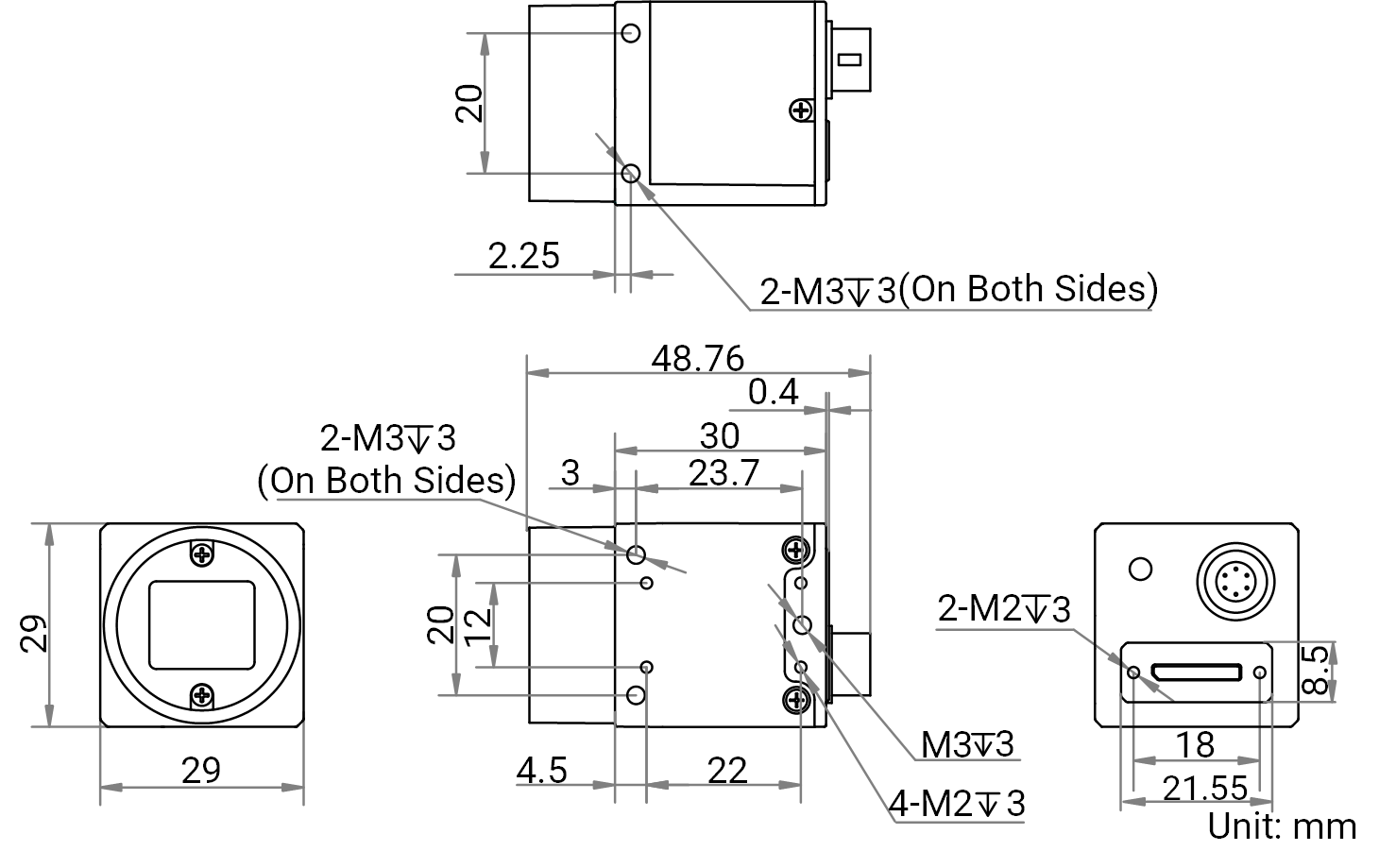

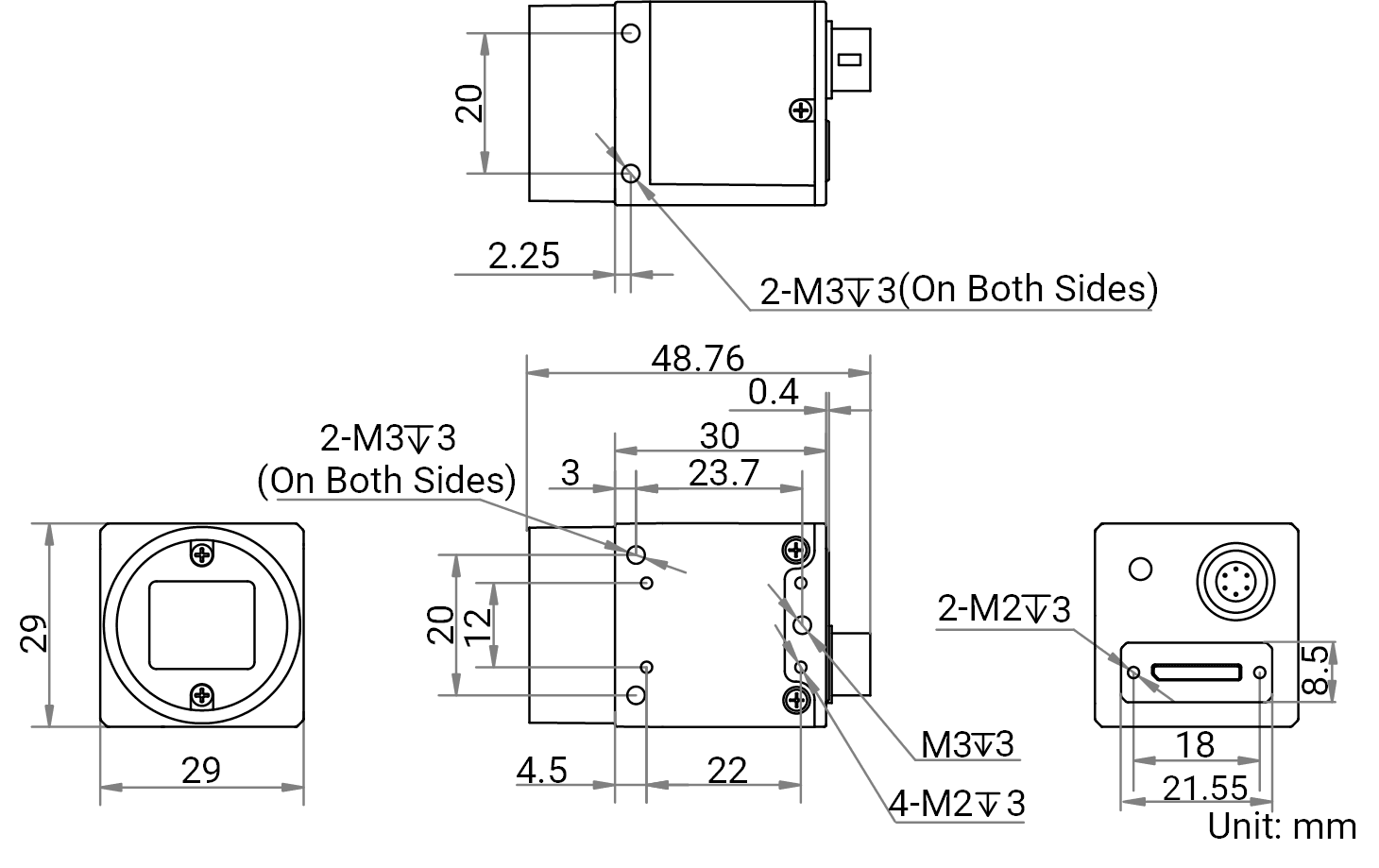

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Flächenkamera MV-CH050-60UM
Datasheet · EN · 575 KB
- Download
Technical drawing HikRobot Flächenkamera MV-CH050-60UM
Technical drawing · EN · 22 MB
Software and SDK (13)
- Download
Software / Firmware V2.2.5 HikRobot Flächenkamera MV-CH050-60UM
Software / firmware · EN · 1 MB
- Download
MVS V5.1.0 (Windows)
Software / firmware · EN · 738 MB
- Download
MVS V5.1.0 (Linux) (aarch64)
Software / firmware · EN · 296 MB
- Download
MVS V5.1.0 (Linux) (x86)
Software / firmware · EN · 268 MB
- Download
MVS V5.1.0 (Linux) (x86_64)
Software / firmware · EN · 368 MB
- Download
MVS V5.0.0 (MacOS)
Software / firmware · EN · 86 MB
- Download
Industrial Camera SDK V4.8.1 Runtime Package (Windows)
Software / firmware · EN · 75 MB
- Download
Industrial Camera SDK V4.8.1 Runtime Package (Linux)
Software / firmware · EN · 146 MB
- Download
MVS V5.0.2 (Windows)
Software / firmware · EN · 456 MB
- Download
MVS V5.0.2 (Linux)
Software / firmware · EN · 778 MB
- Download
VisionMaster V4.4.0 Sample File
Software / firmware · EN · 956 MB
- Download
VisionMaster V4.4.0 Basic Package
Software / firmware · EN · 1775 MB
- Download
VisionMaster V4.4.0 DL Package (Supplemental) (2,7 GB)
Software / firmware · EN
- Download
Manual HikRobot Flächenkamera MV-CH050-60UM
Manual · EN · 4 MB
Accessories
Data cables(15)
HIKROBOT
Standard USB 3.0 data cable (Micro-B-USB-A), 1 m
Micro-B male (with screw) · 1 m
Data cable
HIKROBOT
Standard USB 3.0 data cable (Micro-B-USB-A), 3 m
Micro-B male (with screw) · 3 m
Data cable
HIKROBOT
Standard USB 3.0 data cable (Micro-B-USB-A), 0,5 m
Micro-B male (with screw) · 0.5 m
Data cable
HIKROBOT
USB 3.0 Flex cable (Micro-B-USB-A), 3 m
Micro-B male (with screw) · 3 m
Data cable
HIKROBOT
Standard USB 3.0 data cable (Micro-B-USB-A), 2 m
Micro-B male (with screw) · 2 m
Data cable
HIKROBOT
SuperFlex USB 3.0 data cable (Micro-B-USB-A), 15 m
Micro-B male (with screw) · 15 m
Data cable
HIKROBOT
SuperFlex USB 3.0 data cable (Micro-B-USB-A), 5 m
Micro-B male (with screw) · 5 m
Data cable
HIKROBOT
SuperFlex USB 3.0 data cable (Micro-B-USB-A), 3 m
Micro-B male (with screw) · 3 m
Data cable
HIKROBOT
SuperFlex USB 3.0 data cable (Micro-B-USB-A), 20 m
Micro-B male (with screw) · 20 m
Data cable
HIKROBOT
SuperFlex USB 3.0 data cable (Micro-B-USB-A), 7 m
Micro-B male (with screw) · 7 m
Data cable
HIKROBOT
SuperFlex USB 3.0 data cable (Micro-B-USB-A), 10 m
Micro-B male (with screw) · 10 m
Data cable
HIKROBOT
Standard USB 3.0 data cable (Micro-B angled-USB-A), 3 m
Micro-B male (with screw) ,Angle (down) · 3 m
Data cable
HIKROBOT
Standard USB 3.0 data cable (Micro-B angled-USB-A), 0,5 m
Micro-B male (with screw) ,Angle (down) · 0.5 m
Data cable
HIKROBOT
Standard USB 3.0 data cable (Micro-B angled-USB-A), 1 m
Micro-B male (with screw) ,Angle (down) · 1 m
Data cable
HIKROBOT
Standard USB 3.0 data cable (Micro-B angled-USB-A), 2 m
Micro-B male (with screw) ,Angle (down) · 2 m
Data cable
More HIKROBOT products in this category
- Area scan camera MV-CE120-10UC
- Area scan camera MV-CE120-10UM
- Area scan camera MV-CE200-10UM
- Area scan camera MV-CH050-10UC
- Area scan camera MV-CH050-10UM
- Area scan camera MV-CH050-60UC
- Area scan camera MV-CH089-10UC
- Area scan camera MV-CH089-10UM
- Area scan camera MV-CH100-60UC
- Area scan camera MV-CH100-60UM
- Area scan camera MV-CH120-10UC
- Area scan camera MV-CH120-10UC V5
Description
Key Feature - Adopts brand new structure design and supports installation from four sides. - Supports Sequencer, Super Palette and Super Bayer to provide high-quality images. - Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc. - Supports hard trigger, software trigger, free run, etc. - Supports customized ROI, horizontal and vertical reverse image output. - Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
