Area scan camera MV-CH100-60UM
Manufacturer part number: MV-CH100-60UM · 306302202
- Resolution
- 10 MP
- Pixels
- 4096 × 2460
- Max. frame rate
- 36 fps
- Color / mono
- Mono
- Shutter type
- Global Shutter
- Sensor format
- 1"
- Pixel size
- 3.45 µm × 3.45 µm
- Interface
- USB 3.0
- Lens mount
- C-Mount
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CH100-60UM |
|---|---|
| Type | 10MP Area Scan Camera, Mono |
| Sensor type | CMOS, global shutter |
| Sensor model | Stacked BSI |
| Pixel size | 3.45 µm × 3.45 µm |
| Sensor size | 1" |
| Resolution | 4096 × 2460 |
| Max. frame rate | 36 fps @ 4096 × 2460 Mono 8 |
| Dynamic range | 58.2 dB |
| SNR | 43 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | 80 µs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports USB power supply |
| Power consumption | Typ. 3.6 W @ 5 VDC (USB 3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3") |
| Weight | Approx. 113 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Client software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenICam |
| Certification | CE, RoHS, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

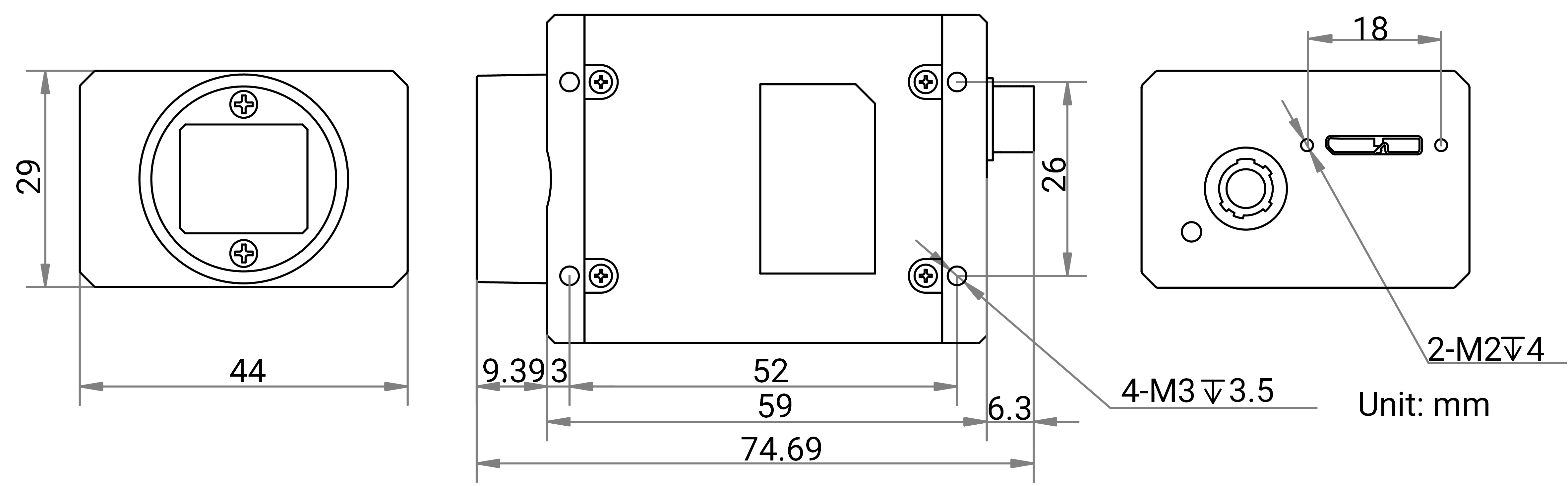

Dimensional drawing
