HIKROBOT
Area scan camera MV-CH050-10UC
Manufacturer part number: MV-CH050-10UC
- Resolution
- 5 MP
- Pixels
- 2448 × 2048
- Max. frame rate
- 74.1 fps
- Color / mono
- Color
- Shutter type
- Global Shutter
- Sensor format
- 2/3"
- Pixel size
- 3.45 µm × 3.45 µm
- Interface
- USB 3.0
- Lens mount
- C-Mount
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CH050-10UC |
|---|---|
| Type | 5MP Area Scan Camera, USB3, IMX250, Color, V4 |
| Sensor type | CMOS, global shutter |
| Sensor model | Sony® IMX250 |
| Pixel size | 3.45 µm × 3.45 µm |
| Sensor size | 2/3" |
| Resolution | 2448 × 2048 |
| Max. frame rate | 74.1 fps @2448 × 2048 Bayer RG 8 |
| Dynamic range | 71 dB |
| SNR | 40 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | UltraShort exposure mode: 1 µs to 14 µs Standard exposure mode: 15 µs to 10 sec |
| Mono/color | Color |
| Exposure mode | Off/Once/Continuous exposure mode |
| Pixel format | Mono 8/10/12, Bayer RG 8/10//10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports USB3.0 power supply |
| Power consumption | Typ. 2.8 W@5 VDC (USB3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 80 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Client software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | USB3 Vision, GenICam |
| Certification | CE, RoHS, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

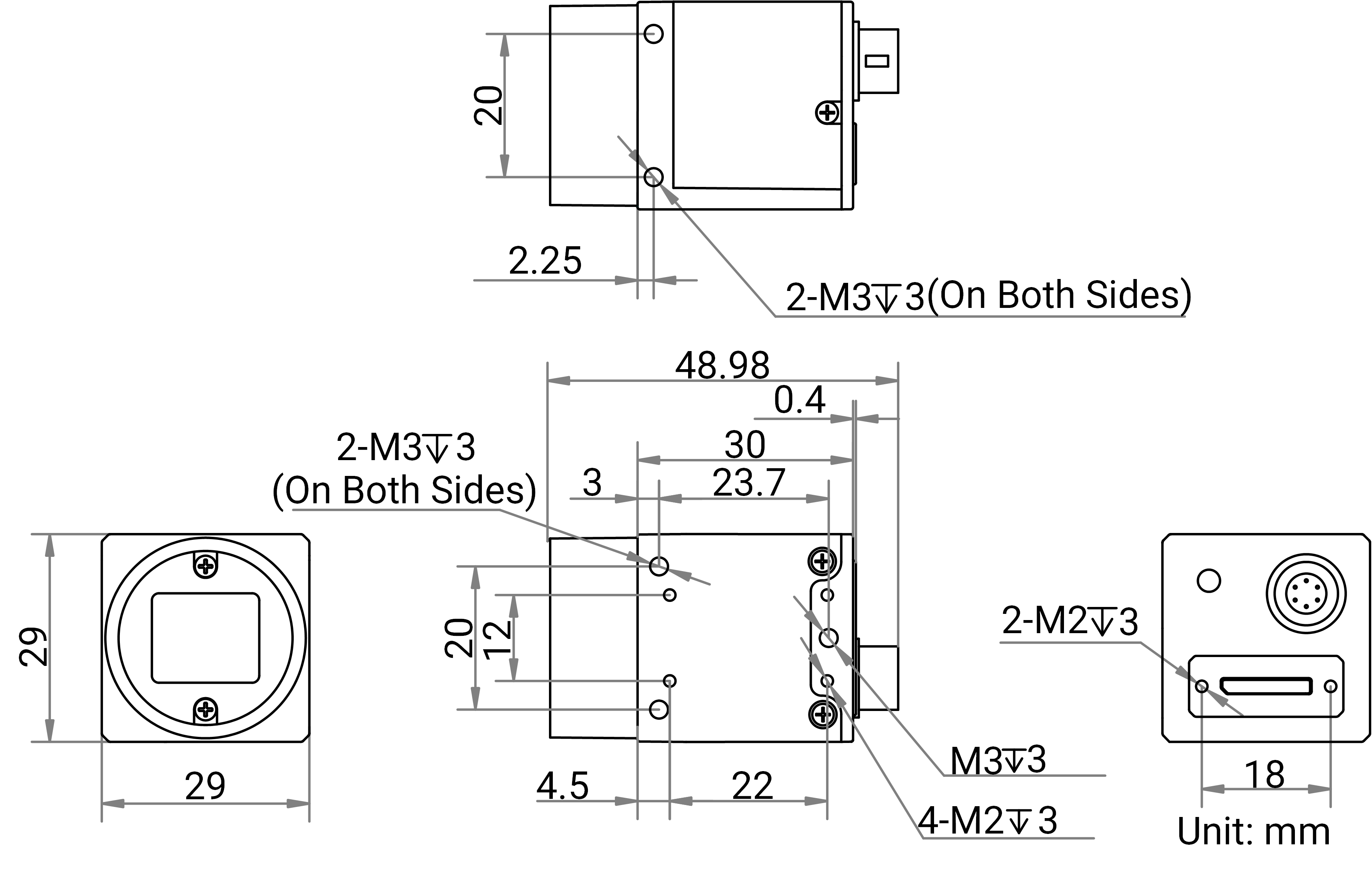

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Flächenkamera MV-CH050-10UC
Datasheet · EN · 533 KB
- Download
Technical drawing HikRobot Flächenkamera MV-CH050-10UC
Technical drawing · EN · 1301 KB
- Download
Software / Firmware V2.2.0 HikRobot Flächenkamera MV-CH050-10UC
Software / firmware · EN · 1684 KB
- Download
Manual HikRobot Flächenkamera MV-CH050-10UC
Manual · EN · 3739 KB
Accessories
Data cables(15)
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B-USB-A), 1 m
Micro-B male (with screw) · 1 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B-USB-A), 3 m
Micro-B male (with screw) · 3 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B-USB-A), 0,5 m
Micro-B male (with screw) · 0.5 m
Datenkabel
HIKROBOT
USB 3.0 Flexkabel (Micro-B-USB-A), 3 m
Micro-B male (with screw) · 3 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B-USB-A), 2 m
Micro-B male (with screw) · 2 m
Datenkabel
HIKROBOT
SuperFlex USB 3.0 Datenkabel (Micro-B-USB-A), 15 m
Micro-B male (with screw) · 15 m
Datenkabel
HIKROBOT
SuperFlex USB 3.0 Datenkabel (Micro-B-USB-A), 5 m
Micro-B male (with screw) · 5 m
Datenkabel
HIKROBOT
SuperFlex USB 3.0 Datenkabel (Micro-B-USB-A), 3 m
Micro-B male (with screw) · 3 m
Datenkabel
HIKROBOT
SuperFlex USB 3.0 Datenkabel (Micro-B-USB-A), 20 m
Micro-B male (with screw) · 20 m
Datenkabel
HIKROBOT
SuperFlex USB 3.0 Datenkabel (Micro-B-USB-A), 7 m
Micro-B male (with screw) · 7 m
Datenkabel
HIKROBOT
SuperFlex USB 3.0 Datenkabel (Micro-B-USB-A), 10 m
Micro-B male (with screw) · 10 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B Winkel-USB-A), 3 m
Micro-B male (with screw) ,Angle (down) · 3 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B Winkel-USB-A), 0,5 m
Micro-B male (with screw) ,Angle (down) · 0.5 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B Winkel-USB-A), 1 m
Micro-B male (with screw) ,Angle (down) · 1 m
Datenkabel
HIKROBOT
Standard USB 3.0 Datenkabel (Micro-B Winkel-USB-A), 2 m
Micro-B male (with screw) ,Angle (down) · 2 m
Datenkabel
Description
Key Feature - Compact design with mounting holes on panels for flexible mounting from 4 sides. - Supports LSC, Sequencer, Super Palette, etc. - Supports customized ROI, horizontal and vertical reverse image output. - Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.
