Area scan camera MV-CA023-10UM
Manufacturer part number: MV-CA023-10UM
- Resolution
- 2.3 MP
- Pixels
- 1920 × 1200
- Max. frame rate
- 41 fps
- Shutter type
- Global Shutter
- Sensor format
- 1/1.2"
- Pixel size
- 5.86 µm × 5.86 µm
- Interface
- USB 3.0
- Lens mount
- C-Mount
End of life announced - still orderable
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CA023-10UM |
|---|---|
| Type | 2.3MP Area Scan Camera, USB3,IMX249,Mono |
| Sensor type | CMOS, global shutter |
| Sensor model | Sony® IMX249 |
| Pixel size | 5.86 µm × 5.86 µm |
| Sensor size | 1/1.2" |
| Resolution | 1920 × 1200 |
| Max. frame rate | 41 fps @1920 × 1200 |
| Dynamic range | 70 dB |
| SNR | 40 dB |
| Gain | 0 dB to 20 dB |
| Exposure time | 34 µs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono | Mono |
| Pixel format | Mono 8/10/10p/12/12p |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2) |
| Power supply | 12 VDC, supports USB 3.0 power supply |
| Power consumption | Typ. 2.5 W @ 5 VDC (USB3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 56 g (0.12 lb.) |
| Ingress protection | IP30 (under correct lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20 % RH to 80 % RH (no condensation) |
| Client software | MVS or third-party software compatible with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 32/64-bit Linux |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Input voltage | 12 VDC, supports USB 3.0 power supply |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

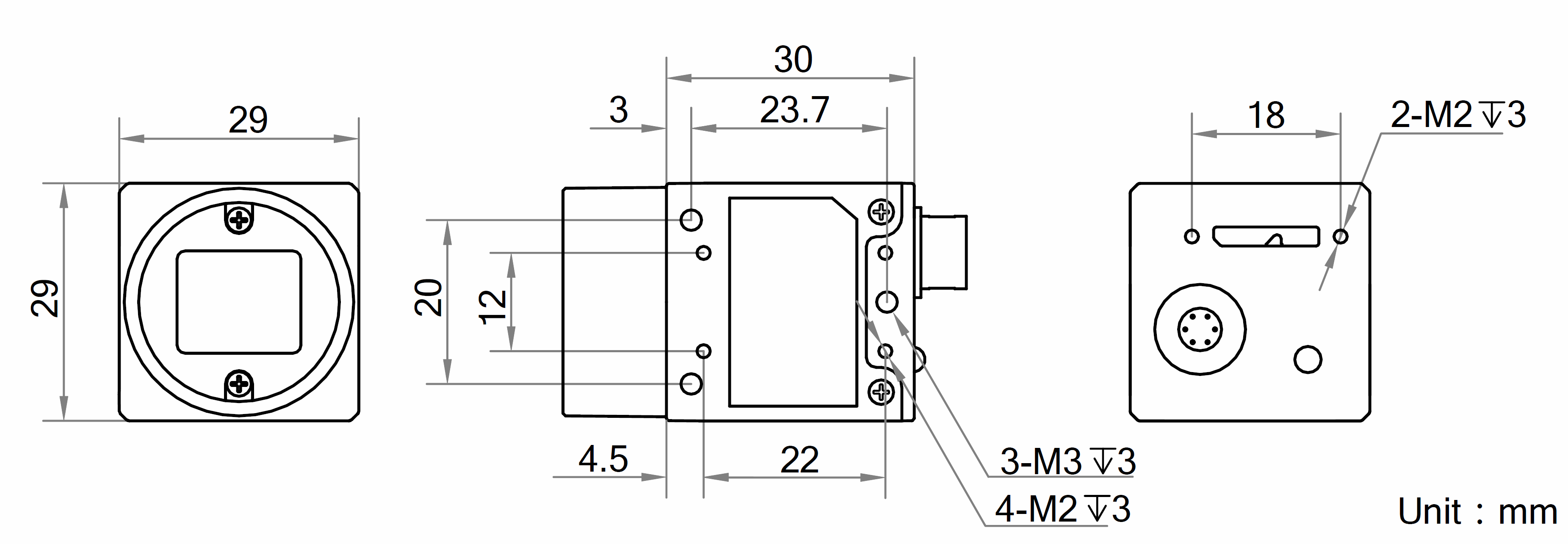

Dimensional drawing
Documents
- Download datasheet
Datasheet Hikrobot Flächenkamera MV-CA023-10UM
Datasheet · EN · 1097 KB
- Download
Technical drawing Hikrobot Flächenkamera MV-CA023-10UM
Technical drawing · EN · 1857 KB
- Download
Manual Hikrobot Flächenkamera MV-CA023-10UM
Manual · EN · 3739 KB
Description
Key Feature
- Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc.
- Supports hardware triggering, software triggering and free run mode.
- Adopts M2 screw holes for securing cable that connects USB3.0 interface.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.
