HIKROBOT
Area scan camera MV-CA050-20UM
Manufacturer part number: MV-CA050-20UM
- Resolution
- 5.3 MP
- Pixels
- 2592 × 2048
- Max. frame rate
- 71.8 fps
- Shutter type
- Global Shutter
- Sensor format
- 1"
- Pixel size
- 4.8 µm × 4.8 µm
- Interface
- USB 3.0
- Lens mount
- C-Mount
End of life announced - still orderable
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CA050-20UM |
|---|---|
| Type | 5MP Area Scan Camera, USB3,PYTHON5000,Mono |
| Sensor type | CMOS, global shutter |
| Sensor model | PYTHON5000 |
| Pixel size | 4.8 µm × 4.8 µm |
| Sensor size | 1" |
| Resolution | 2592 × 2048 |
| Max. frame rate | 71.8 fps @ 2592 × 2048 |
| Dynamic range | 57.5 dB |
| SNR | 39.5 dB |
| Gain | 0 dB to 15 dB |
| Exposure time | 59 µs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono | Mono |
| Pixel format | Mono 8/10/10p/12/12p |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Image buffer | 128 MB |
| Data interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2) |
| Power supply | 12 VDC, supports USB3.0 power supply |
| Power consumption | Typ. 3.5 W @ 5 VDC (USB3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 56 g (0.12 lb.) |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20 % RH to 80 % RH (no condensation) |
| Client software | MVS or third-party software meeting with USB3.0 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 32/64-bit Linux |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Input voltage | 12 VDC, supports USB3.0 power supply |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

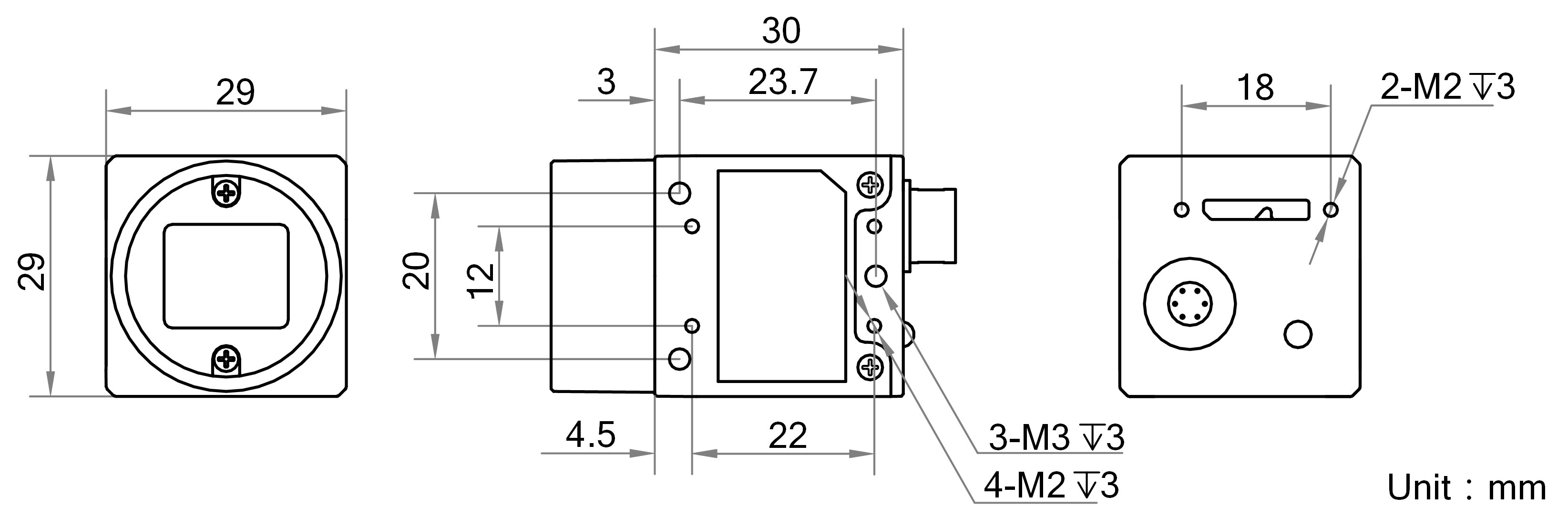

Dimensional drawing
Documents
- Download datasheet
Datasheet Hikrobot Flächenkamera MV-CA050-20UM
Datasheet · EN · 1122 KB
- Download
Technical drawing Hikrobot Flächenkamera MV-CA050-20UM
Technical drawing · EN · 1861 KB
- Download
Manual Hikrobot Flächenkamera MV-CA050-20UM
Manual · EN · 3739 KB
Description
Key Feature
- Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc.
- Supports hardware triggering, software triggering and free run mode.
- Adopts M2 screw holes for securing cable that connects USB3.0 interface.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.
