HIKROBOT
Microscope camera MV-CM3040C-1H(MSD)
Manufacturer part number: MV-CM3040C-1H(MSD) · 306303043
- Resolution
- 4 MP
- Pixels
- 2560 × 1440
- Max. frame rate
- 30 fps
- Color / mono
- Color
- Shutter type
- Rolling Shutter
- Sensor format
- 1/1.88"
- Pixel size
- 2.9 µm × 2.9 µm
- Interface
- HDMI
- Lens mount
- C-Mount
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CM3040C-1H(MSD) |
|---|---|
| Type | 4MP Measurement HDMI Camera with Micro Software Dongle |
| Sensor type | CMOS, rolling shutter |
| Pixel size | 2.9 µm × 2.9 µm |
| Sensor size | 1/1.88" |
| Resolution | 2560 × 1440 |
| Max. frame rate | 30 fps |
| Gain | 0 dB to 18 dB |
| Exposure time | 300 µs to 100 ms |
| Mono/color | Color |
| Exposure mode | Auto/manual |
| Vision tool | Image process: White balance, brightness, sharpness, contrast, saturation, digital gain, Gamma correction, digital WDR, noise reduction. Auxiliary functions: Image reverse, cross line, grid line, ruler, scale, image freezing, capture, recording, storage. Measurement: Report export, calibration, point measurement, line measurement, circle measurement, angle measurement, polygon measurement, polyline measurement, curve measurement, line/circle auto measurement. |
| Transmission interface | HDMI |
| Control interface | USB 2.0 × 2, USB 3.0 × 1, micro SD card interface × 1 |
| Power supply | 12 VDC to 24 VDC, independent power supply required |
| Power consumption | Typ. 3.6 W @ 12 VDC |
| Lens mount | C-mount |
| Dimension | 75 mm × 75 mm × 86.9 mm (3.0" × 3.0" × 3.4") |
| Weight | Approx. 430 g (0.9 lb.) |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Certification | CE, RoHS |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

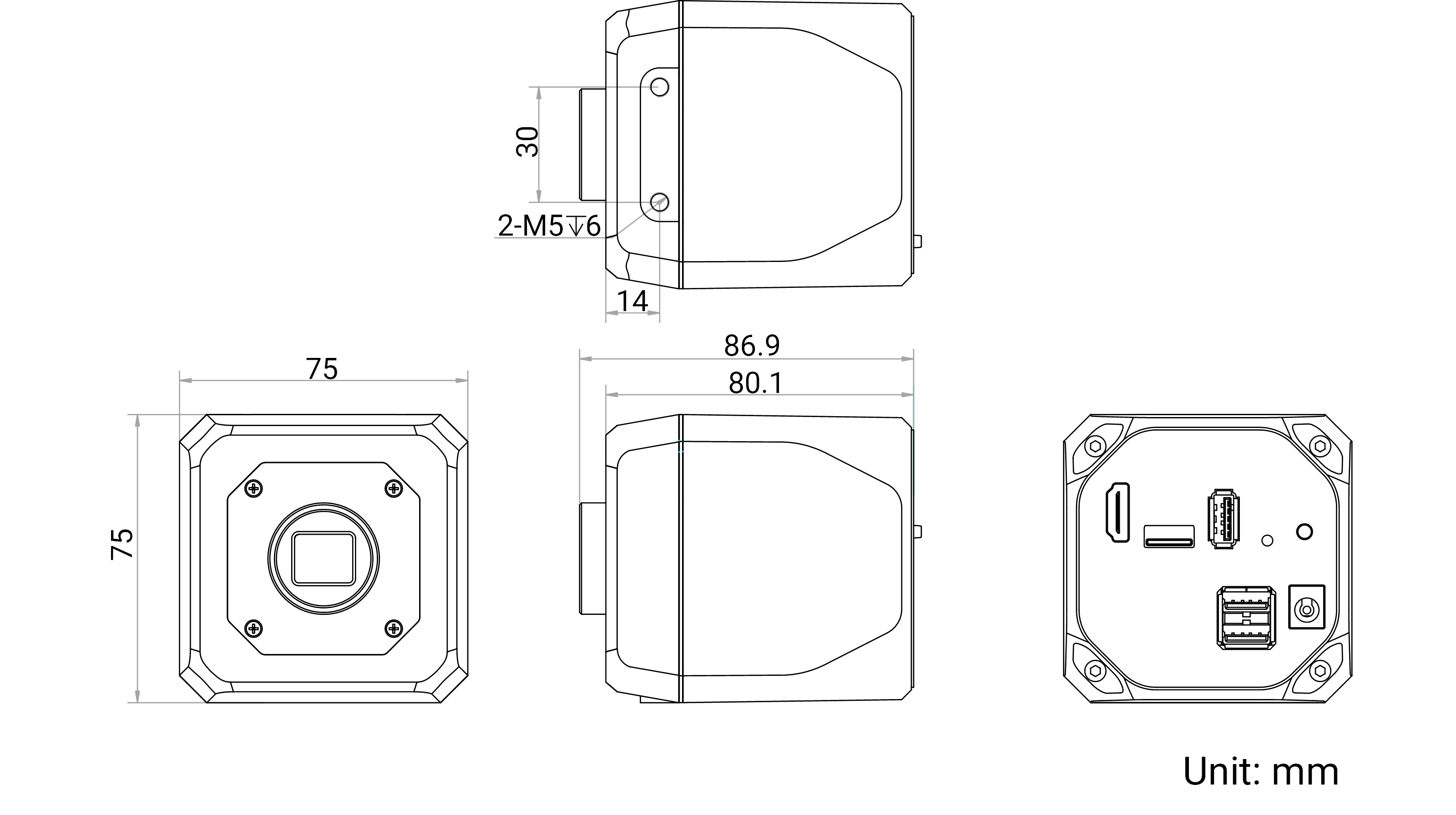

Dimensional drawing
Documents
- Download datasheet
Datasheet Hikrobot Mikroskopkamera MV-CM3040C-1H(MSD)
Datasheet · EN · 645 KB
- Download
Technical drawing Hikrobot Mikroskopkamera MV-CM3040C-1H(MSD)
Technical drawing · EN · 8397 KB
- Download
Manual Hikrobot Mikroskopkamera MV-CM3040C-1H(MSD)
Manual · EN · 3004 KB
Description
Key Feature - Supports 4 MP high-quality image and 30 fps frame rate. - Provides HDMI interface to connect to a monitor directly. - Provides USB interface to connect to a mouse or a USB flash disk. - Provides USB 3.0 interface to connect to the PC for operation on the client software. - Supports image storage and image-related parameter adjustment. - Supports measurement functions and report generation.
