HIKROBOT
Microscope camera MV-CM2020C-0H
Manufacturer part number: MV-CM2020C-0H · 306302556
- Resolution
- 2 MP
- Pixels
- 1920 × 1080
- Max. frame rate
- 60 fps
- Color / mono
- Color
- Shutter type
- Rolling Shutter
- Sensor format
- 1/2"
- Pixel size
- 3.75 µm × 3.75 µm
- Interface
- HDMI
- Lens mount
- C-Mount
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CM2020C-0H |
|---|---|
| Type | 2MP HDMI Camera |
| Sensor type | CMOS, rolling shutter |
| Pixel size | 3.75 µm × 3.75 µm |
| Sensor size | 1/2" |
| Resolution | 1920 × 1080 |
| Max. frame rate | 60 fps |
| Gain | 0 dB to 42 dB |
| Exposure time | 300 µs to 100 ms |
| Mono/color | Color |
| Exposure mode | Auto/manual |
| Reverse image | Supports horizontal and vertical reverse image output |
| Transmission interface | HDMI |
| Control interface | USB 2.0 |
| Power supply | 12 VDC to 24 VDC, independent power supply required |
| Power | Typ. 1.9 W @ 12 VDC |
| Lens mount | C-mount |
| Dimension | 50 mm × 50 mm × 55.4 mm (2.0" × 2.0" × 2.2") |
| Weight | 220 g (0.5 lb.) |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Certification | CE, RoHS |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

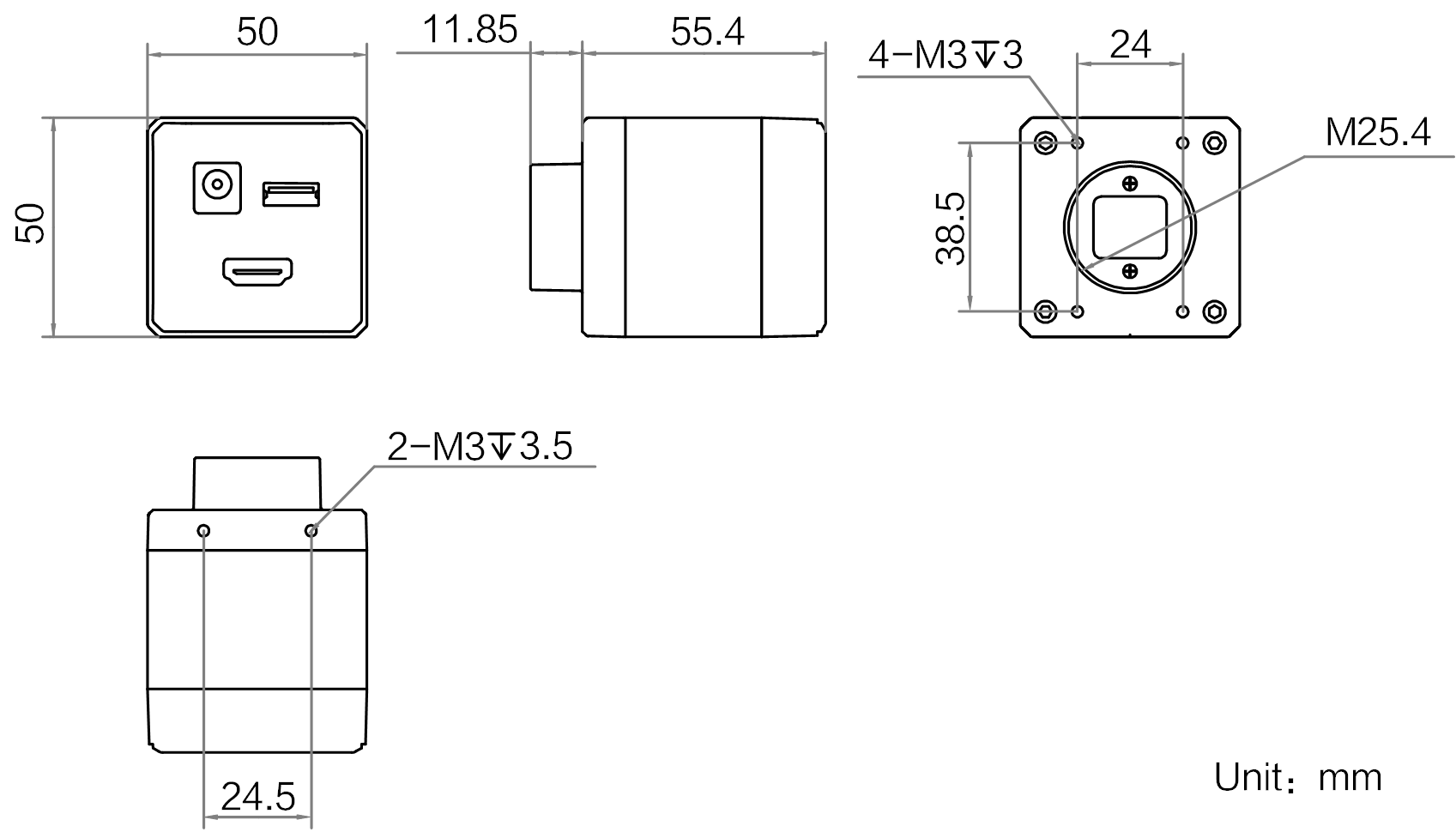

Dimensional drawing
Documents
- Download datasheet
Datasheet Hikrobot Mikroskopkamera MV-CM2020C-0H
Datasheet · EN · 605 KB
- Download
Technical drawing Hikrobot Mikroskopkamera MV-CM2020C-0H
Technical drawing · EN · 1315 KB
- Download
Manual Hikrobot Mikroskopkamera MV-CM2020C-0H
Manual · EN · 2145 KB
Description
Key Feature - Supports 2 MP high-quality image and 60 fps frame rate. - Provides HDMI interface to connect to a monitor directly. - Provides USB 2.0 interface to connect to a mouse. - Supports cross line on the image, and horizontal and vertical reverse image output. - Supports image adjustment, such as white balance, brightness, sharpness, 2D noise reduction, saturation, contrast, Gamma correction, and digital WDR.
