HIKROBOT

Area scan camera MV-CS032-10GM

Manufacturer part number: MV-CS032-10GM

Resolution: 3.1 MP
Pixels: 2048 × 1536
Max. frame rate: 38.1 fps
Color / mono: Mono
Shutter type: Global Shutter
Sensor format: 1/1.8"
Pixel size: 3.45 µm × 3.45 µm
Interface: GigE
Lens mount: C-Mount

The manufacturer has announced end of life (EoL preparation) for this product. It is still regularly orderable; we will inform you in good time once a successor has been confirmed.

End of life announced - still orderable

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	MV-CS032-10GM
Type	3.2MP Area Scan Camera, GigE, IMX265, 2nd Generation,Mono
Sensor type	CMOS, global shutter
Sensor model	Sony® IMX265
Pixel size	3.45 µm × 3.45 µm
Sensor size	1/1.8"
Resolution	2048 × 1536
Max. frame rate	38.1 fps @ 2048 × 1536 Mono 8
Dynamic range	71.5 dB
SNR	40 dB
Gain	0 dB to 24 dB
Exposure time	UltraShort exposure mode: 1 µs to 14 µs Standard exposure mode: 15 µs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Mono
Pixel format	Mono 8/10/10Packed/12/12Packed
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2
Reverse image	Supports horizontal and vertical reverse image output
Data interface	Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2).
Power supply	9 VDC to 24 VDC, supports PoE
Power consumption	Typ. 2.2 W @ 12 VDC
Lens mount	C-mount
Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2")
Weight	Approx. 100 g (0.2 lb.)
Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20 % RH to 95 % RH (no condensation)
Client software	MVS or third-party software meeting with GigE Vision Protocol
Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
Compatibility	GigE Vision V2.0, GenICam
Certification	CE, RoHS, KC
Input voltage	9 VDC to 24 VDC, supports PoE

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

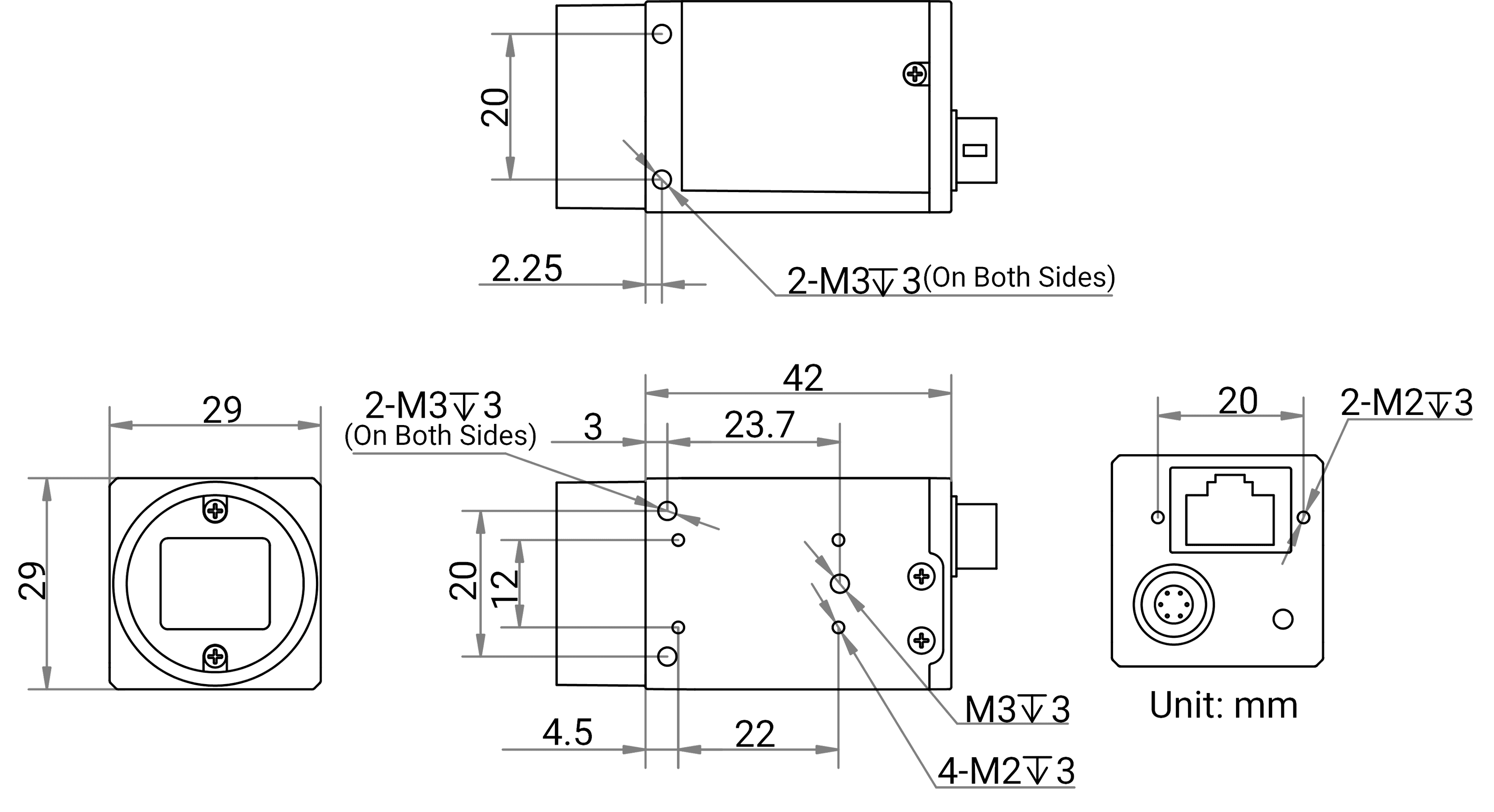

Dimensional drawing

Documents

Datasheet Hikrobot Flächenkamera MV-CS032-10GM
Datasheet · EN · 1 MB
Download datasheet
Technical drawing Hikrobot Flächenkamera MV-CS032-10GM
Technical drawing · EN · 8 MB
Download

Software and SDK (12)

MVS V5.1.0 (Windows)
Software / firmware · EN · 738 MB
Download
MVS V5.1.0 (Linux) (aarch64)
Software / firmware · EN · 296 MB
Download
MVS V5.1.0 (Linux) (x86)
Software / firmware · EN · 268 MB
Download
MVS V5.1.0 (Linux) (x86_64)
Software / firmware · EN · 368 MB
Download
MVS V5.0.0 (MacOS)
Software / firmware · EN · 86 MB
Download
Industrial Camera SDK V4.8.1 Runtime Package (Windows)
Software / firmware · EN · 75 MB
Download
Industrial Camera SDK V4.8.1 Runtime Package (Linux)
Software / firmware · EN · 146 MB
Download
VisionMaster V4.4.0 Sample File
Software / firmware · EN · 956 MB
Download
VisionMaster V4.4.0 Basic Package
Software / firmware · EN · 1775 MB
Download
VisionMaster V4.4.0 DL Package (Supplemental) (2,7 GB)
Software / firmware · EN
Download
MVS V5.0.2 (Windows)
Software / firmware · EN · 456 MB
Download
MVS V5.0.2 (Linux)
Software / firmware · EN · 778 MB
Download

Manual Hikrobot Flächenkamera MV-CS032-10GM
Manual · EN · 4 MB
Download

Description

Key Feature

- Adopts brand new design to reduce power consumption.

- Supports multiple ISP functions like CCM to provide high-quality images.

- Compact design with mounting holes on panels for flexible mounting from 4 sides.

- Adopts GigE interface and max. transmission distance of 100 meters without relay.

- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
