HIKROBOT

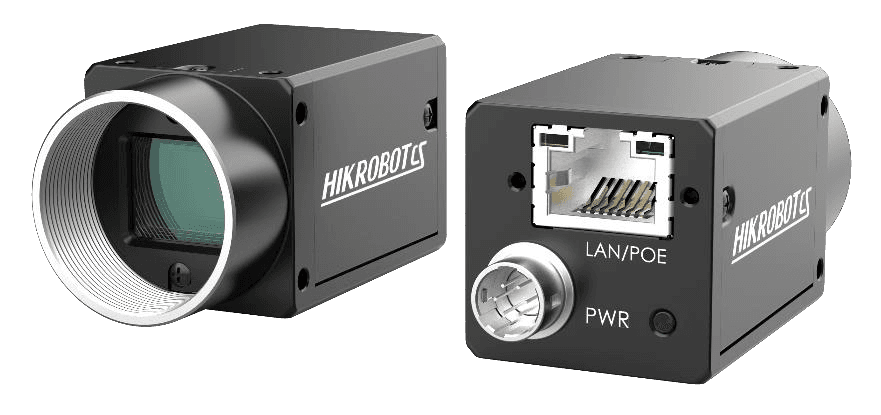

Area scan camera MV-CS020-61GM V5.0

Manufacturer part number: MV-CS020-61GM V5.0

Resolution: 2 MP
Pixels: 1624 × 1240
Max. frame rate: 60.7 fps
Color / mono: Mono
Shutter type: Global Shutter
Sensor format: 1/1.7"
Pixel size: 4.5 µm × 4.5 µm
Interface: GigE
Lens mount: C-Mount

Price and availability on request

Quantity

No obligation · we usually reply within 24 hours on business days

Request this item directly by email

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	MV-CS020-61GM V5.0
Type	2 MP CMOS GigE Area Scan Camera
Sensor type	CMOS, global shutter
Sensor model	Stacked BSI
Pixel size	4.5 µm × 4.5 µm
Sensor size	1/1.7"
Resolution	1624 × 1240
Max. frame rate	60.7 fps @ 1624 × 1240 Mono 8
Dynamic range	76.1 dB
SNR	44.8 dB
Gain	High full well capacity: 0 dB to 12.8 dB High sensitivity: 0 dB to 24 dB
Exposure time	High full well capacity: 30 µs to 10 sec High sensitivity: 5 µs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Mono
Pixel format	Mono 8/10/10Packed/12/12Packed
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output
Data interface	Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto- isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply	9 VDC to 24 VDC, supports PoE
Power consumption	Typ. 1.6 W @ 12 VDC
Lens mount	C-mount
Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
Weight	Approx. 100 g (0.2 lb.)
Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20 % RH to 95 % RH (no condensation)
Client software	MVS or third-party software meeting with GigE Vision Protocol
Operating system	32/64-bit Windows 7/10/11 and 32/64-bit Linux
Compatibility	GigE Vision V2.0, GenICam
Certification	CE, RoHS, KC
Input voltage	9 VDC to 24 VDC, supports PoE

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

Documents

Datasheet Hikrobot Flächenkamera MV-CS020-61GM V5.0
Datasheet · EN · 561 KB
Download datasheet

Software and SDK (12)

MVS V5.1.0 (Windows)
Software / firmware · EN · 738 MB
Download
MVS V5.1.0 (Linux) (aarch64)
Software / firmware · EN · 296 MB
Download
MVS V5.1.0 (Linux) (x86)
Software / firmware · EN · 268 MB
Download
MVS V5.1.0 (Linux) (x86_64)
Software / firmware · EN · 368 MB
Download
MVS V5.0.0 (MacOS)
Software / firmware · EN · 86 MB
Download
Industrial Camera SDK V4.8.1 Runtime Package (Windows)
Software / firmware · EN · 75 MB
Download
Industrial Camera SDK V4.8.1 Runtime Package (Linux)
Software / firmware · EN · 146 MB
Download
MVS V5.0.2 (Windows)
Software / firmware · EN · 456 MB
Download
MVS V5.0.2 (Linux)
Software / firmware · EN · 778 MB
Download
VisionMaster V4.4.0 Sample File
Software / firmware · EN · 956 MB
Download
VisionMaster V4.4.0 Basic Package
Software / firmware · EN · 1775 MB
Download
VisionMaster V4.4.0 DL Package (Supplemental) (2,7 GB)
Software / firmware · EN
Download

More HIKROBOT products in this category

Description

The Hikrobot area scan camera MV-CS020-61GM V5.0 is a 2 MP monochrome camera of the CS series with GigE interface. It is based on the Stacked BSI sensor (CMOS, global shutter, 1/1.7") and delivers up to 60.7 fps at 1624 × 1240 pixels (pixel size 4.5 µm × 4.5 µm). Lens mount C-mount, power supply 9 VDC to 24 VDC, PoE, dimensions 29 mm × 29 mm × 42 mm, weight approx. 100 g, ingress protection IP40.
