HIKROBOT
Area scan camera MV-CH650-90XC-M58S-NF
Manufacturer part number: MV-CH650-90XC-M58S-NF · 306301672
- Resolution
- 65 MP
- Pixels
- 9344 × 7000
- Max. frame rate
- 31.5 fps
- Color / mono
- Color
- Shutter type
- Global Shutter
- Sensor format
- 29.9 mm × 22.4 mm
- Pixel size
- 3.2 µm × 3.2 µm
- Interface
- CoaXPress
- Lens mount
- M58 × 0.75
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CH650-90XC-M58S-NF |
|---|---|
| Type | 65MP Area Scan Camera, CXP-6, GMAX3265, Color, M58-mount, with fan |
| Sensor type | CMOS, global shutter |
| Sensor model | Gpixel GMAX3265 |
| Pixel size | 3.2 µm × 3.2 µm |
| Sensor size | 29.9 mm × 22.4 mm |
| Resolution | 9344 × 7000 |
| Max. frame rate | 31.5 fps @ 9344 × 7000 |
| Dynamic range | 66 dB |
| SNR | 40 dB |
| Gain | 1.25x to 6x |
| Exposure time | 14 µs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Bayer BG 8/10/12 |
| Binning | Supports 1 ×1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 ×1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | CoaXPress with DIN interface |
| Digital I/O | 12-pin P10 connector provides I/O: opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Power supply | 9 VDC to 24 VDC |
| Power consumption | Typ. 10.2 W @ 24 VDC |
| Lens mount | M58*0.75, flange focal length 11.48 mm |
| Dimension | M58-mount with fan: 74 mm × 74 mm × 70.4 mm (2.9" × 2.9" × 2.8") |
| Weight | M58-mount with fan: approx. 470 g (1.0 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Client software | Frame grabber software meeting with CoaXPress Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 with 8 GB memory or above |
| Compatibility | CoaXPress, GenlCam |
| Certification | CE, RoHS, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

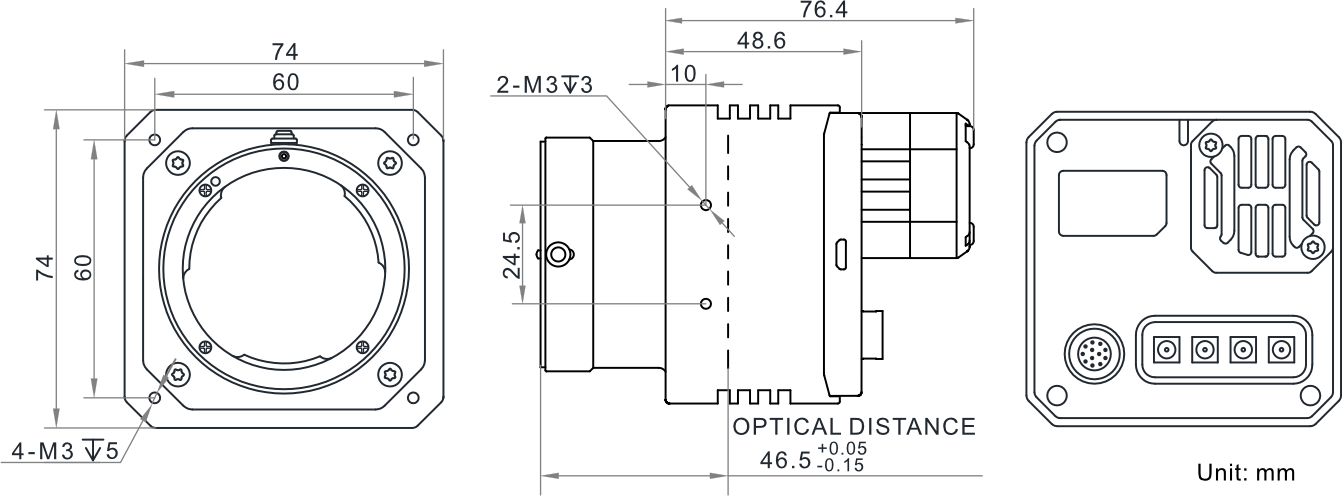

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Flächenkamera MV-CH650-90XC-M58S-NF
Datasheet · EN · 587 KB
- Download
Technical drawing HikRobot Flächenkamera MV-CH650-90XC-M58S-NF
Technical drawing · EN · 4537 KB
- Download
Software / Firmware V2.0.3 HikRobot Flächenkamera MV-CH650-90XC-M58S-NF
Software / firmware · EN · 2965 KB
- Download
Manual HikRobot Flächenkamera MV-CH650-90XC-M58S-NF
Manual · EN · 4129 KB
Accessories
Data cables(20)
HIKROBOT
Hochflex CXP-6 Datenkabel (DIN-DIN), 5 m
DIN 1.0/2.3 · 5 m
Datenkabel
HIKROBOT
Hochflex CXP-6 Datenkabel (DIN-BNC), 5 m
DIN 1.0/2.3 · 5 m
Datenkabel
HIKROBOT
Standard CXP-6 Datenkabel (DIN-BNC), 10 m
DIN 1.0/2.3 · 10 m
Datenkabel
HIKROBOT
Hochflex CXP-12 Datenkabel (HDBNC-HDBNC), 10 m
HD-BNC · 10 m
HIKROBOT
Standard CXP-6 Datenkabel (DIN-DIN), 10 m
DIN 1.0/2.3 · 10 m
Datenkabel
HIKROBOT
Standard CXP-6 Datenkabel (DIN-BNC), 3 m
DIN 1.0/2.3 · 3 m
Datenkabel
HIKROBOT
Standard CXP-6 Datenkabel (DIN-BNC), 5 m
DIN 1.0/2.3 · 5 m
Datenkabel
HIKROBOT
Hochflex CXP-6 Datenkabel (DIN-DIN), 3 m
DIN 1.0/2.3 · 3 m
Datenkabel
HIKROBOT
Hochflex CXP-6 Datenkabel (DIN-BNC), 3 m
DIN 1.0/2.3 · 3 m
Datenkabel
HIKROBOT
Hochflex CXP-12 Datenkabel (HDBNC-HDBNC), 5 m
HD-BNC · 5 m
HIKROBOT
Hochflex CXP-6 Datenkabel (DIN-HDBNC), 5 m
DIN 1.0/2.3 · 5 m
Datenkabel
HIKROBOT
Hochflex CXP-6 Datenkabel (DIN-HDBNC), 10 m
DIN 1.0/2.3 · 10 m
Datenkabel
HIKROBOT
Hochflex CXP-6 Datenkabel (DIN-BNC), 10 m
DIN 1.0/2.3 · 10 m
Datenkabel
HIKROBOT
Standard CXP-6 Datenkabel (DIN-DIN), 3 m
DIN 1.0/2.3 · 3 m
Datenkabel
HIKROBOT
Hochflex CXP-12 Datenkabel (HDBNC-HDBNC), 3 m
HD-BNC · 3 m
HIKROBOT
Standard CXP-12 Datenkabel (HDBNC-HDBNC), 3 m
HD-BNC · 3 m
HIKROBOT
Standard CXP-12 Datenkabel (HDBNC-HDBNC), 5 m
HD-BNC · 5 m
HIKROBOT
Hochflex CXP-6 Datenkabel (DIN-DIN), 10 m
DIN 1.0/2.3 · 10 m
Datenkabel
HIKROBOT
Standard CXP-12 Datenkabel (HDBNC-HDBNC), 10 m
HD-BNC · 10 m
HIKROBOT
Hochflex CXP-6 Datenkabel (DIN-HDBNC), 3 m
DIN 1.0/2.3 · 3 m
Datenkabel
Description
Key Feature - Resolution of 9344 × 7000, and pixel size of 3.2 µm × 3.2 µm. - Adopts global shutter CMOS to provide high dynamic range, SNR, and high-quality image. - Adopts CXP-6 interface to transmit data. - Compatible with CoaXPress Protocol and GenlCam Standard.
