HIKROBOT
Area scan camera MV-CH250-90YC-M58S-NN
Manufacturer part number: MV-CH250-90YC-M58S-NN
- Resolution
- 25 MP
- Pixels
- 5120 × 5120
- Max. frame rate
- 150 fps
- Color / mono
- Color
- Shutter type
- Global Shutter
- Sensor format
- 1.1"
- Pixel size
- 2.5 µm × 2.5 µm
- Interface
- CoaXPress
- Lens mount
- M58 × 0.75
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CH250-90YC-M58S-NN |
|---|---|
| Type | 25MP Area Scan Camera, CXP-12, GMAX0505, Color, V2, M58-mount |
| Sensor type | CMOS, global shutter |
| Sensor model | Gpixel GMAX0505 |
| Pixel size | 2.5 µm × 2.5 µm |
| Sensor size | 1.1" |
| Resolution | 5120 × 5120 |
| Max. frame rate | 150 fps @5120 × 5120 Bayer BG 8 |
| Dynamic range | 63 dB |
| SNR | 36 dB |
| Gain | 2.5 × |
| Exposure time | UltraShort exposure mode: 3 µs to 8 µs Standard exposure mode: 10 µs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono | Color |
| Pixel format | Bayer BG 8/10/12 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | CoaXPress with micro-BNC interface |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Power supply | 12 VDC to 24 VDC, CXP-0 and CXP-1 support PoCXP |
| Power consumption | Typ. 10 W @ 12 VDC |
| Lens mount | M58*0.75, flange back length 11.48 mm |
| Dimension | 60 mm × 60 mm × 59 mm (2.4" × 2.4" × 2.3") (cooling fins are optional) |
| Weight | M58-mount without fan, approx. 285 g (0.6 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Client software | MVS or third-party software meeting with CoaXPress Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | CoaXPress, GenlCam |
| Certification | CE, RoHS, KC, UL |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

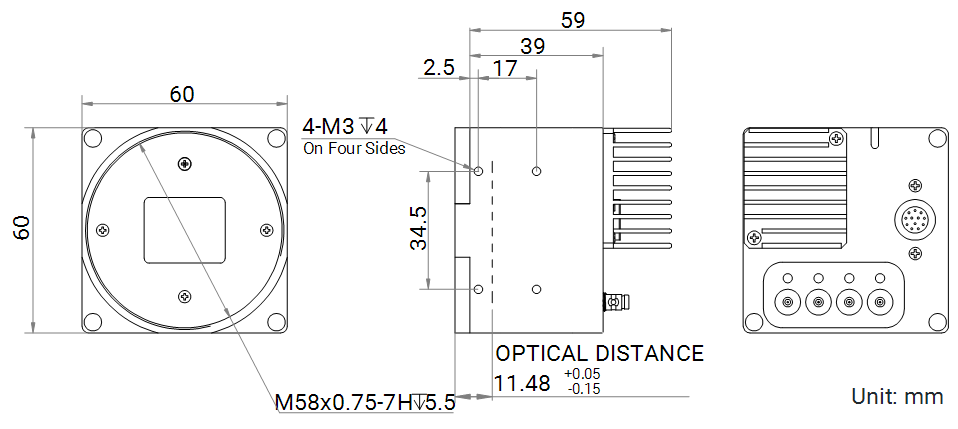

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Flächenkamera MV-CH250-90YC-M58S-NN
Datasheet · EN · 590 KB
- Download
Technical drawing HikRobot Flächenkamera MV-CH250-90YC-M58S-NN
Technical drawing · EN · 1930 KB
- Download
Software / Firmware V4.0.10 HikRobot Flächenkamera MV-CH250-90YC-M58S-NN
Software / firmware · EN · 9566 KB
- Download
Manual HikRobot Flächenkamera MV-CH250-90YC-M58S-NN
Manual · EN · 4129 KB
Accessories
Data cables(20)
HIKROBOT
Hochflex CXP-6 Datenkabel (DIN-DIN), 5 m
DIN 1.0/2.3 · 5 m
HIKROBOT
Hochflex CXP-6 Datenkabel (DIN-BNC), 5 m
DIN 1.0/2.3 · 5 m
HIKROBOT
Standard CXP-6 Datenkabel (DIN-BNC), 10 m
DIN 1.0/2.3 · 10 m
HIKROBOT
Hochflex CXP-12 Datenkabel (HDBNC-HDBNC), 10 m
HD-BNC · 10 m
Datenkabel
HIKROBOT
Standard CXP-6 Datenkabel (DIN-DIN), 10 m
DIN 1.0/2.3 · 10 m
HIKROBOT
Standard CXP-6 Datenkabel (DIN-BNC), 3 m
DIN 1.0/2.3 · 3 m
HIKROBOT
Standard CXP-6 Datenkabel (DIN-BNC), 5 m
DIN 1.0/2.3 · 5 m
HIKROBOT
Hochflex CXP-6 Datenkabel (DIN-DIN), 3 m
DIN 1.0/2.3 · 3 m
HIKROBOT
Hochflex CXP-6 Datenkabel (DIN-BNC), 3 m
DIN 1.0/2.3 · 3 m
HIKROBOT
Hochflex CXP-12 Datenkabel (HDBNC-HDBNC), 5 m
HD-BNC · 5 m
Datenkabel
HIKROBOT
Hochflex CXP-6 Datenkabel (DIN-HDBNC), 5 m
DIN 1.0/2.3 · 5 m
Datenkabel
HIKROBOT
Hochflex CXP-6 Datenkabel (DIN-HDBNC), 10 m
DIN 1.0/2.3 · 10 m
Datenkabel
HIKROBOT
Hochflex CXP-6 Datenkabel (DIN-BNC), 10 m
DIN 1.0/2.3 · 10 m
HIKROBOT
Standard CXP-6 Datenkabel (DIN-DIN), 3 m
DIN 1.0/2.3 · 3 m
HIKROBOT
Hochflex CXP-12 Datenkabel (HDBNC-HDBNC), 3 m
HD-BNC · 3 m
Datenkabel
HIKROBOT
Standard CXP-12 Datenkabel (HDBNC-HDBNC), 3 m
HD-BNC · 3 m
Datenkabel
HIKROBOT
Standard CXP-12 Datenkabel (HDBNC-HDBNC), 5 m
HD-BNC · 5 m
Datenkabel
HIKROBOT
Hochflex CXP-6 Datenkabel (DIN-DIN), 10 m
DIN 1.0/2.3 · 10 m
HIKROBOT
Standard CXP-12 Datenkabel (HDBNC-HDBNC), 10 m
HD-BNC · 10 m
Datenkabel
HIKROBOT
Hochflex CXP-6 Datenkabel (DIN-HDBNC), 3 m
DIN 1.0/2.3 · 3 m
Datenkabel
Description
Key Feature - Resolution of 5120 × 5120, pixel size of 2.5 µm × 2.5 µm. - Adopts global shutter CMOS sensor to provide high dynamic range and high-quality image. - Adopts CXP-12 interface to transmit data. - Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
