Area scan camera MV-CH250-90YM-M58S-NN
Manufacturer part number: MV-CH250-90YM-M58S-NN
- Resolution
- 25 MP
- Pixels
- 5120 × 5120
- Max. frame rate
- 150 fps
- Color / mono
- Mono
- Shutter type
- Global Shutter
- Sensor format
- 1.1"
- Pixel size
- 2.5 µm × 2.5 µm
- Interface
- CoaXPress
- Lens mount
- M58 × 0.75
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CH250-90YM-M58S-NN |
|---|---|
| Type | 25MP Area Scan Camera, CXP-12, GMAX0505, Mono, V2, M58-mount |
| Sensor type | CMOS, global shutter |
| Sensor model | Gpixel GMAX0505 |
| Pixel size | 2.5 µm × 2.5 µm |
| Sensor size | 1.1" |
| Resolution | 5120 × 5120 |
| Max. frame rate | 150 fps @ 5120 × 5120 Mono 8 |
| Dynamic range | 63 dB |
| SNR | 36 dB |
| Gain | 2.5 × |
| Exposure time | UltraShort exposure mode: 3 µs to 8 µs Standard exposure mode: 10 µs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono | Mono |
| Pixel format | Mono 8/10/12 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | CoaXPress with micro-BNC interface |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Power supply | 12 VDC to 24 VDC, CXP-0 and CXP-1 support PoCXP |
| Power consumption | Typ. 9.9 W @ 12 VDC |
| Lens mount | M58*0.75, flange back length 11.48 mm |
| Dimension | 60 mm × 60 mm × 59 mm (2.4" × 2.4" × 2.3") (cooling fins are optional) |
| Weight | M58-mount without fan, approx. 285 g (0.6 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Client software | MVS or third-party software meeting with CoaXPress Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | CoaXPress, GenlCam |
| Certification | CE, RoHS, KC, UL |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

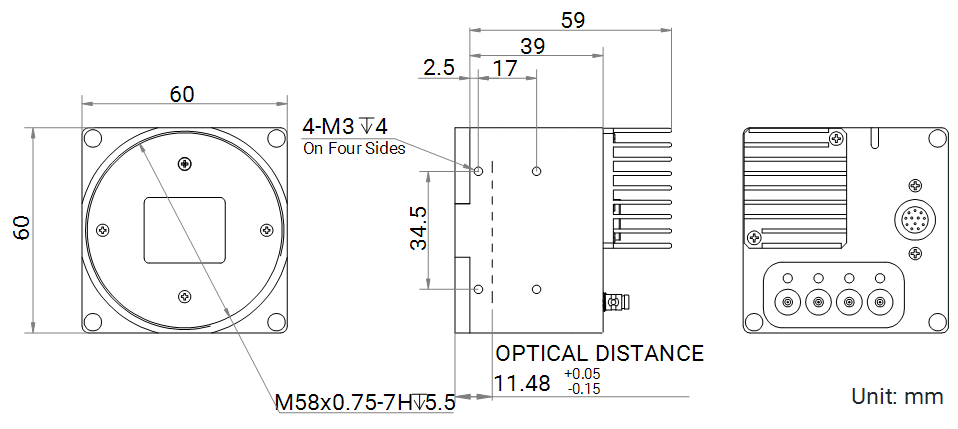

Dimensional drawing
