HIKROBOT
Area scan camera MV-CH210-90YC-M58S-NN
Manufacturer part number: MV-CH210-90YC-M58S-NN · 306301779
- Resolution
- 21 MP
- Pixels
- 5120 × 4096
- Max. frame rate
- 222 fps
- Color / mono
- Color
- Shutter type
- Global Shutter
- Sensor format
- 23.04 mm × 18.43 mm
- Pixel size
- 4.5 µm × 4.5 µm
- Interface
- CoaXPress
- Lens mount
- M58 × 0.75
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CH210-90YC-M58S-NN |
|---|---|
| Type | 21MP Area Scan Camera, Gsprint4521, CXP-12, M58-mount, Fanless, Color |
| Sensor type | CMOS, global shutter |
| Sensor model | Gpixel Gsprint4521 |
| Pixel size | 4.5 µm × 4.5 µm |
| Sensor size | 23.04 mm × 18.43 mm |
| Resolution | 5120 × 4096 |
| Max. frame rate | 222 fps @ 5120 × 4096 Bayer GB 8 |
| Dynamic range | 65 dB |
| SNR | 43 dB |
| Gain | 1.0 ×, 2.0 ×, 4.0 × |
| Exposure time | 4 µs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Bayer GB 8/10/12 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | CoaXPress with Micro-BNC interface |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Power supply | 12 VDC to 24 VDC, CXP-0 and CXP-1 connectors support PoCXP |
| Power consumption | With fan: Typ. 18.7 W @ 24 VDC Without fan: Typ. 16.3 W @ 24 VDC |
| Lens mount | M58*0.75 |
| Dimension | With fan: 84 mm × 84 mm × 75 mm (3.3" × 3.3" × 3.0") Without fan: 84 mm × 84 mm × 92.5 mm (3.3" × 3.3" × 3.6") |
| Weight | With fan: Approx. 790 g (1.7 lb.) Without fan: Approx. 650 g (1.4 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Client software | MVS or frame grabber software meeting with CoaXPress Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 |
| Compatibility | CoaXPress, GenlCam |
| Certification | CE, RoHS, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

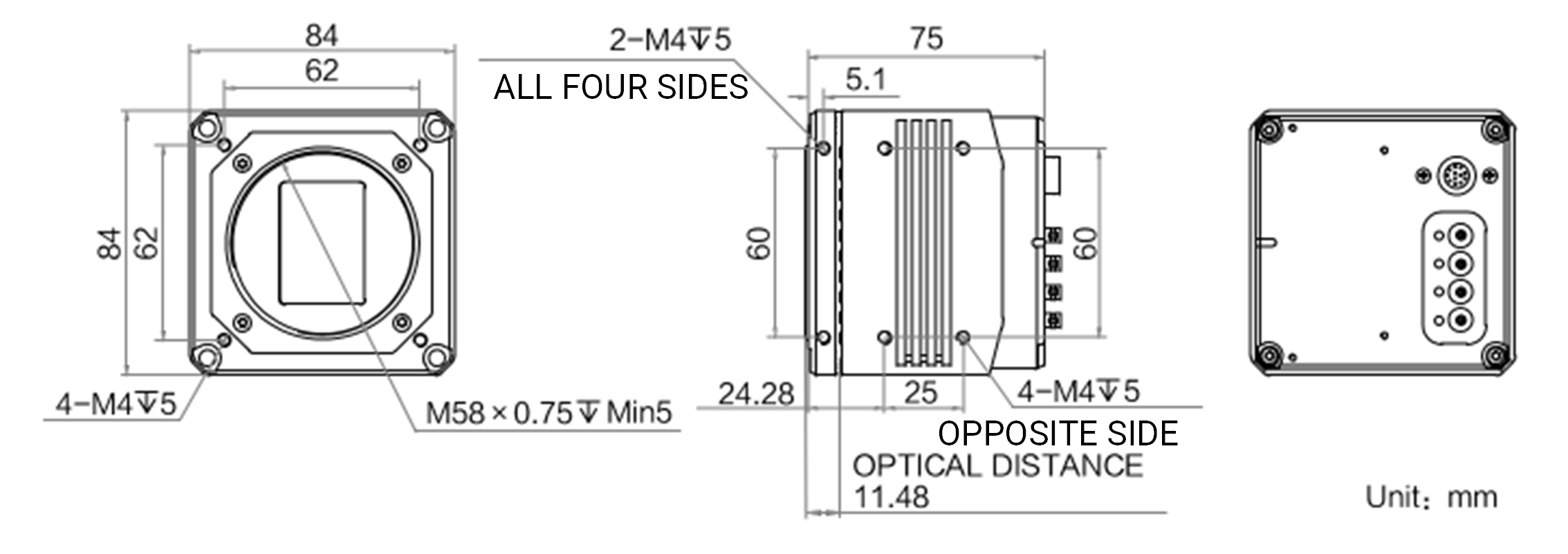

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Flächenkamera MV-CH210-90YC-M58S-NN
Datasheet · EN · 893 KB
- Download
Technical drawing HikRobot Flächenkamera MV-CH210-90YC-M58S-NN
Technical drawing · EN · 2 MB
Software and SDK (13)
- Download
Software / Firmware V4.0.1 HikRobot Flächenkamera MV-CH210-90YC-M58S-NN
Software / firmware · EN · 15 MB
- Download
MVS V5.1.0 (Windows)
Software / firmware · EN · 738 MB
- Download
MVS V5.1.0 (Linux) (aarch64)
Software / firmware · EN · 296 MB
- Download
MVS V5.1.0 (Linux) (x86)
Software / firmware · EN · 268 MB
- Download
MVS V5.1.0 (Linux) (x86_64)
Software / firmware · EN · 368 MB
- Download
MVS V5.0.0 (MacOS)
Software / firmware · EN · 86 MB
- Download
Industrial Camera SDK V4.8.1 Runtime Package (Windows)
Software / firmware · EN · 75 MB
- Download
Industrial Camera SDK V4.8.1 Runtime Package (Linux)
Software / firmware · EN · 146 MB
- Download
MVS V5.0.2 (Windows)
Software / firmware · EN · 456 MB
- Download
MVS V5.0.2 (Linux)
Software / firmware · EN · 778 MB
- Download
VisionMaster V4.4.0 Sample File
Software / firmware · EN · 956 MB
- Download
VisionMaster V4.4.0 Basic Package
Software / firmware · EN · 1775 MB
- Download
VisionMaster V4.4.0 DL Package (Supplemental) (2,7 GB)
Software / firmware · EN
- Download
Manual HikRobot Flächenkamera MV-CH210-90YC-M58S-NN
Manual · EN · 4 MB
Accessories
Data cables(20)
HIKROBOT
High-flex CXP-6 data cable (DIN-DIN), 5 m
DIN 1.0/2.3 · 5 m
HIKROBOT
High-flex CXP-6 data cable (DIN-BNC), 5 m
DIN 1.0/2.3 · 5 m
HIKROBOT
Standard CXP-6 data cable (DIN-BNC), 10 m
DIN 1.0/2.3 · 10 m
HIKROBOT
High-flex CXP-12 data cable (HDBNC-HDBNC), 10 m
HD-BNC · 10 m
Data cable
HIKROBOT
Standard CXP-6 data cable (DIN-DIN), 10 m
DIN 1.0/2.3 · 10 m
HIKROBOT
Standard CXP-6 data cable (DIN-BNC), 3 m
DIN 1.0/2.3 · 3 m
HIKROBOT
Standard CXP-6 data cable (DIN-BNC), 5 m
DIN 1.0/2.3 · 5 m
HIKROBOT
High-flex CXP-6 data cable (DIN-DIN), 3 m
DIN 1.0/2.3 · 3 m
HIKROBOT
High-flex CXP-6 data cable (DIN-BNC), 3 m
DIN 1.0/2.3 · 3 m
HIKROBOT
High-flex CXP-12 data cable (HDBNC-HDBNC), 5 m
HD-BNC · 5 m
Data cable
HIKROBOT
High-flex CXP-6 data cable (DIN-HDBNC), 5 m
DIN 1.0/2.3 · 5 m
Data cable
HIKROBOT
High-flex CXP-6 data cable (DIN-HDBNC), 10 m
DIN 1.0/2.3 · 10 m
Data cable
HIKROBOT
High-flex CXP-6 data cable (DIN-BNC), 10 m
DIN 1.0/2.3 · 10 m
HIKROBOT
Standard CXP-6 data cable (DIN-DIN), 3 m
DIN 1.0/2.3 · 3 m
HIKROBOT
High-flex CXP-12 data cable (HDBNC-HDBNC), 3 m
HD-BNC · 3 m
Data cable
HIKROBOT
Standard CXP-12 data cable (HDBNC-HDBNC), 3 m
HD-BNC · 3 m
Data cable
HIKROBOT
Standard CXP-12 data cable (HDBNC-HDBNC), 5 m
HD-BNC · 5 m
Data cable
HIKROBOT
High-flex CXP-6 data cable (DIN-DIN), 10 m
DIN 1.0/2.3 · 10 m
HIKROBOT
Standard CXP-12 data cable (HDBNC-HDBNC), 10 m
HD-BNC · 10 m
Data cable
HIKROBOT
High-flex CXP-6 data cable (DIN-HDBNC), 3 m
DIN 1.0/2.3 · 3 m
Data cable
More HIKROBOT products in this category
- Area scan camera MV-CH120-90Y1M-NN
- Area scan camera MV-CH120-90Y2C-C-NN
- Area scan camera MV-CH120-90Y2M-C-NN
- Area scan camera MV-CH140-90XM-M58S-NN
- Area scan camera MV-CH140-90YC-M58S-NF
- Area scan camera MV-CH140-90YM-M58S-NF
- Area scan camera MV-CH210-90YM-M58S-NN
- Area scan camera MV-CH240-10YM-C-NN
- Area scan camera MV-CH250-20XM-M58S-NN
- Area scan camera MV-CH250-90XC-C-NN
- Area scan camera MV-CH250-90XM-C-NN
- Area scan camera MV-CH250-90Y1C-NH
Description
Key Feature - Resolution of 5120 × 4096, and pixel size of 4.5 µm × 4.5 µm. - Adopts global shutter CMOS to provide high dynamic range, SNR, and high-quality images. - Supports LSC sequencer polling function. - Low power consumption without fans. - Adopts CXP-12 interface to transmit data. - Compatible with CoaXPress Protocol and GenlCam Standard.
