Area scan camera MV-CH120-90Y2C-C-NN
Manufacturer part number: MV-CH120-90Y2C-C-NN · 306302908
- Resolution
- 12 MP
- Pixels
- 4096 × 3008
- Max. frame rate
- 149 fps
- Color / mono
- Color
- Shutter type
- Global Shutter
- Sensor format
- 1.1"
- Pixel size
- 3.4 µm × 3.4 µm
- Interface
- CoaXPress
- Lens mount
- C-Mount
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CH120-90Y2C-C-NN |
|---|---|
| Type | 12MP Area Scan Camera, GMAX3412, 2-link CXP-12, C-mount, without fan, Color |
| Sensor type | CMOS, global shutter |
| Sensor model | Gpixel GMAX3412 |
| Pixel size | 3.4 µm × 3.4 µm |
| Sensor size | 1.1" |
| Resolution | 4096 × 3008 |
| Max. frame rate | 149 fps @ 4096 × 3008 Bayer GB 8 |
| Dynamic range | 59.7 dB |
| SNR | 39.1 dB |
| Gain | 0 dB to 6.1 dB |
| Exposure time | 6 µs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Bayer GB 8/10/12 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | CoaXPress with Micro-BNC interfaces |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Power supply | 9 VDC to 24 VDC, CXP-0 supports PoCXP |
| Power consumption | Typ. 6.1 W @ 12 VDC |
| Lens mount | C-mount |
| Dimension | 50 mm × 50 mm × 45 mm (2.0" × 2.0" × 1.8") |
| Weight | Approx. 207 g (0.5 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Client software | MVS or frame grabber software meeting with CoaXPress Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | CoaXPress, GenlCam |
| Certification | CE, RoHS, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

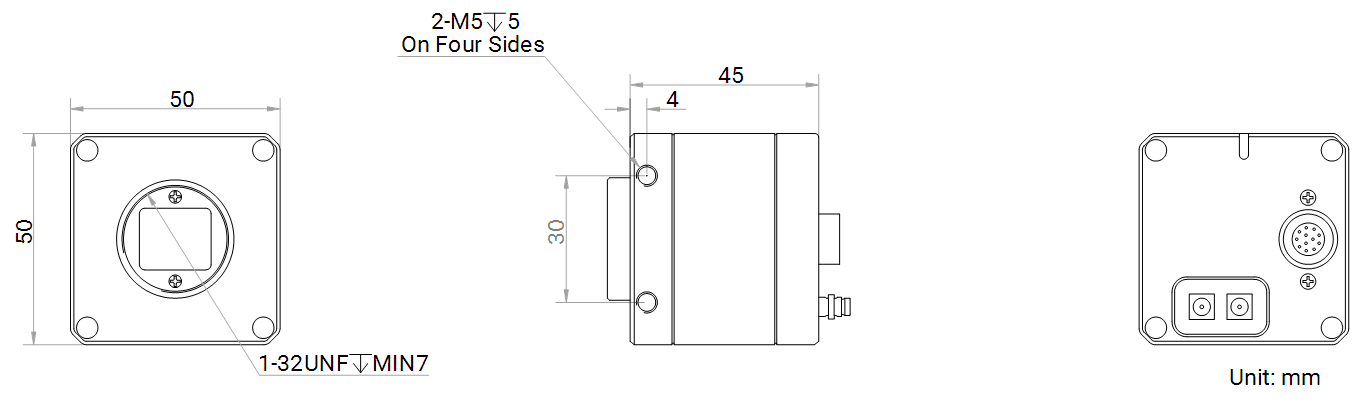

Dimensional drawing
