HIKROBOT
Area scan camera MV-CH250-90XC-C-NN
Manufacturer part number: MV-CH250-90XC-C-NN · 306302538
- Resolution
- 25 MP
- Pixels
- 5120 × 5120
- Max. frame rate
- 41.5 fps
- Color / mono
- Color
- Shutter type
- Global Shutter
- Sensor format
- 1.1"
- Pixel size
- 2.5 µm × 2.5 µm
- Interface
- CoaXPress
- Lens mount
- C-Mount
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-CH250-90XC-C-NN |
|---|---|
| Type | 25MP Area Scan Camera, GMAX0505, CXP-6, Color, C-mount, without fan |
| Sensor type | CMOS, global shutter |
| Sensor model | Gpixel GMAX0505 |
| Pixel size | 2.5 µm × 2.5 µm |
| Sensor size | 1.1" |
| Resolution | 5120 × 5120 |
| Max. frame rate | 41.5 fps @ 5120 × 5120 Bayer BG 8 |
| Dynamic range | 65 dB |
| SNR | 41 dB |
| Gain | 2.0 × to 5.0 × |
| Exposure time | UltraShort exposure mode: 3 µs to 8 µs Standard exposure mode: 10 µs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Bayer BG 8/10/12 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | CoaXPress with DIN interface |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Power supply | 9 VDC to 24 VDC, CXP-1 supports PoCXP |
| Power consumption | Typ. 6.5 W @ 12 VDC |
| Lens mount | C-mount |
| Dimension | 50 mm × 50 mm × 45 mm (2.0" × 2.0" × 1.8") |
| Weight | Approx. 207 g (0.5 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20 % RH to 95 % RH (no condensation) |
| Client software | MVS or frame grabber software meeting with CoaXPress Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | CoaXPress, GenlCam |
| Certification | CE, RoHS, KC |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

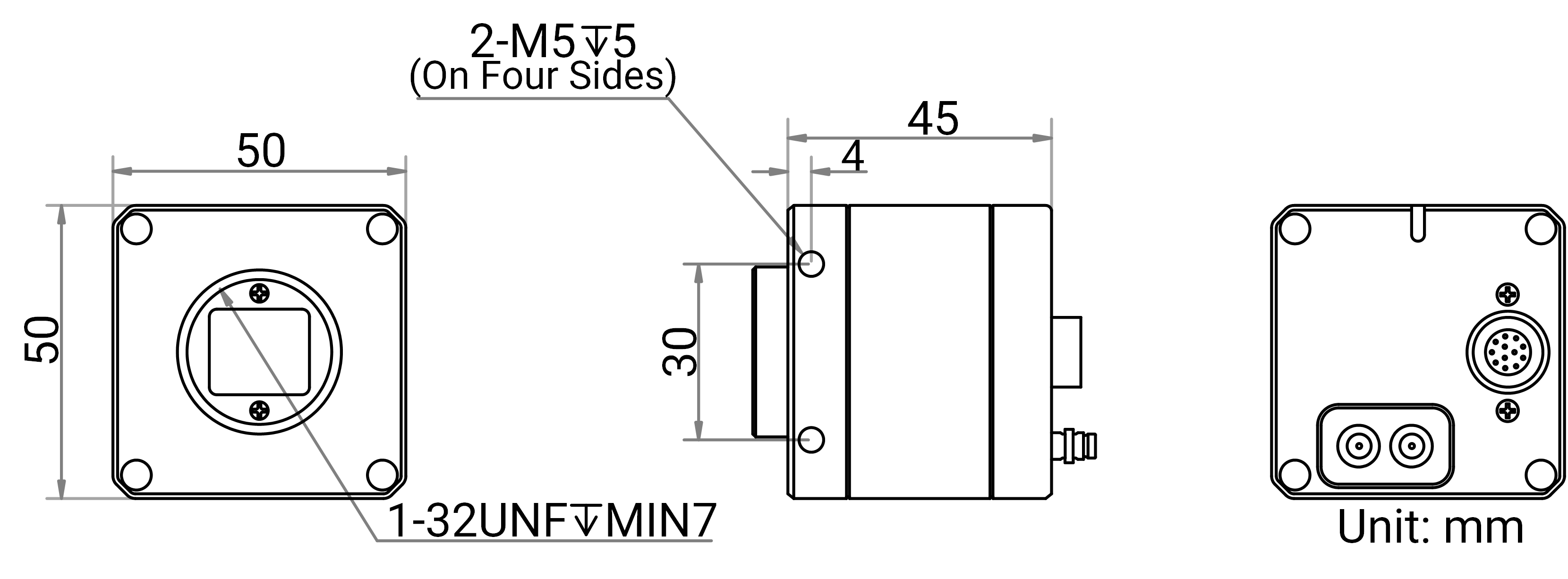

Dimensional drawing
Documents
- Download datasheet
Datasheet HikRobot Flächenkamera MV-CH250-90XC-C-NN
Datasheet · EN · 485 KB
- Download
Technical drawing HikRobot Flächenkamera MV-CH250-90XC-C-NN
Technical drawing · EN · 1 MB
Software and SDK (13)
- Download
Software / Firmware V4.1.3 HikRobot Flächenkamera MV-CH250-90XC-C-NN
Software / firmware · EN · 2 MB
- Download
MVS V5.1.0 (Windows)
Software / firmware · EN · 738 MB
- Download
MVS V5.1.0 (Linux) (aarch64)
Software / firmware · EN · 296 MB
- Download
MVS V5.1.0 (Linux) (x86)
Software / firmware · EN · 268 MB
- Download
MVS V5.1.0 (Linux) (x86_64)
Software / firmware · EN · 368 MB
- Download
MVS V5.0.0 (MacOS)
Software / firmware · EN · 86 MB
- Download
Industrial Camera SDK V4.8.1 Runtime Package (Windows)
Software / firmware · EN · 75 MB
- Download
Industrial Camera SDK V4.8.1 Runtime Package (Linux)
Software / firmware · EN · 146 MB
- Download
VisionMaster V4.4.0 Sample File
Software / firmware · EN · 956 MB
- Download
VisionMaster V4.4.0 Basic Package
Software / firmware · EN · 1775 MB
- Download
VisionMaster V4.4.0 DL Package (Supplemental) (2,7 GB)
Software / firmware · EN
- Download
MVS V5.0.2 (Windows)
Software / firmware · EN · 456 MB
- Download
MVS V5.0.2 (Linux)
Software / firmware · EN · 778 MB
- Download
Manual HikRobot Flächenkamera MV-CH250-90XC-C-NN
Manual · EN · 4 MB
Accessories
Data cables(20)
HIKROBOT
Hochflex CXP-6 Datenkabel (DIN-DIN), 5 m
DIN 1.0/2.3 · 5 m
Datenkabel
HIKROBOT
Hochflex CXP-6 Datenkabel (DIN-BNC), 5 m
DIN 1.0/2.3 · 5 m
Datenkabel
HIKROBOT
Standard CXP-6 Datenkabel (DIN-BNC), 10 m
DIN 1.0/2.3 · 10 m
Datenkabel
HIKROBOT
Hochflex CXP-12 Datenkabel (HDBNC-HDBNC), 10 m
HD-BNC · 10 m
HIKROBOT
Standard CXP-6 Datenkabel (DIN-DIN), 10 m
DIN 1.0/2.3 · 10 m
Datenkabel
HIKROBOT
Standard CXP-6 Datenkabel (DIN-BNC), 3 m
DIN 1.0/2.3 · 3 m
Datenkabel
HIKROBOT
Standard CXP-6 Datenkabel (DIN-BNC), 5 m
DIN 1.0/2.3 · 5 m
Datenkabel
HIKROBOT
Hochflex CXP-6 Datenkabel (DIN-DIN), 3 m
DIN 1.0/2.3 · 3 m
Datenkabel
HIKROBOT
Hochflex CXP-6 Datenkabel (DIN-BNC), 3 m
DIN 1.0/2.3 · 3 m
Datenkabel
HIKROBOT
Hochflex CXP-12 Datenkabel (HDBNC-HDBNC), 5 m
HD-BNC · 5 m
HIKROBOT
Hochflex CXP-6 Datenkabel (DIN-HDBNC), 5 m
DIN 1.0/2.3 · 5 m
Datenkabel
HIKROBOT
Hochflex CXP-6 Datenkabel (DIN-HDBNC), 10 m
DIN 1.0/2.3 · 10 m
Datenkabel
HIKROBOT
Hochflex CXP-6 Datenkabel (DIN-BNC), 10 m
DIN 1.0/2.3 · 10 m
Datenkabel
HIKROBOT
Standard CXP-6 Datenkabel (DIN-DIN), 3 m
DIN 1.0/2.3 · 3 m
Datenkabel
HIKROBOT
Hochflex CXP-12 Datenkabel (HDBNC-HDBNC), 3 m
HD-BNC · 3 m
HIKROBOT
Standard CXP-12 Datenkabel (HDBNC-HDBNC), 3 m
HD-BNC · 3 m
HIKROBOT
Standard CXP-12 Datenkabel (HDBNC-HDBNC), 5 m
HD-BNC · 5 m
HIKROBOT
Hochflex CXP-6 Datenkabel (DIN-DIN), 10 m
DIN 1.0/2.3 · 10 m
Datenkabel
HIKROBOT
Standard CXP-12 Datenkabel (HDBNC-HDBNC), 10 m
HD-BNC · 10 m
HIKROBOT
Hochflex CXP-6 Datenkabel (DIN-HDBNC), 3 m
DIN 1.0/2.3 · 3 m
Datenkabel
Description
Key Feature - Resolution of 5120 × 5120, pixel size of 2.5 µm × 2.5 µm. - Adopts global shutter CMOS sensor to provide high dynamic range, SNR, and high-quality image. - Adopts CXP-6 interface to transmit data. - Compatible with CoaXPress Protocol and GenlCam Standard.
