HIKROBOT

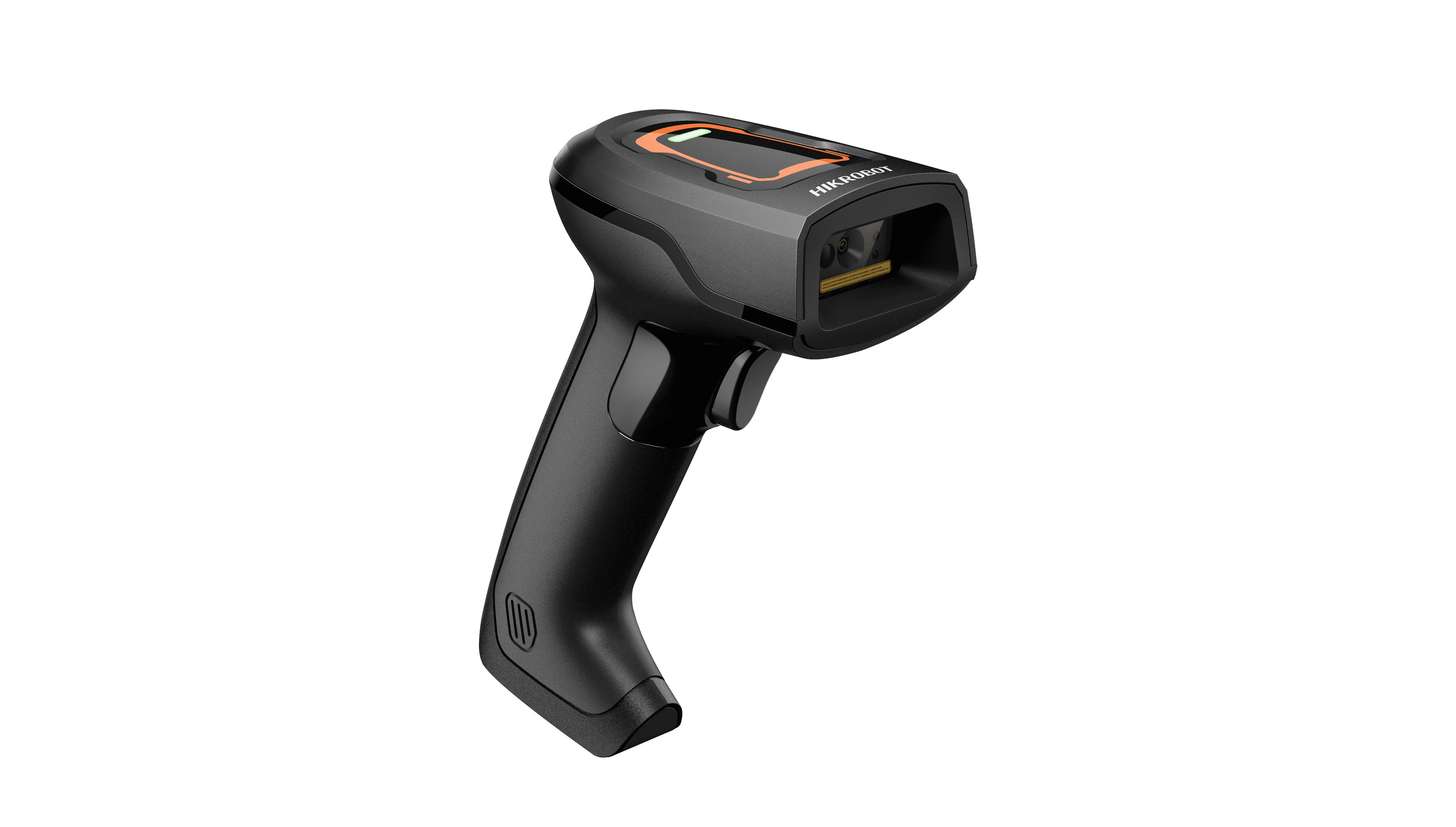

Handheld reader MV-IDH2000B/13NR/05WN
Manufacturer part number: MV-IDH2000B/13NR/05WN
- Device type
- Handscanner
- Code type
- 1D and 2D
- Reading profile
- Near Range
- Design
- Cordless
- Communication
- USB, Bluetooth
- Ingress protection
- IP42
- Weight
- 160 g
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-IDH2000B/13NR/05WN |
|---|---|
| Type | Industrial wireless handheld code reader |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D codes: QR Code, Data Matrix, MicroQR, Aztec Stacked code: PDF417 |
| Min. accuracy | 1D codes: 3 mil 2D codes: 4 mil |
| Sensor type | CMOS |
| Resolution | 1280 × 1024 |
| Depth of field | Code 128 (3 mil): 30 mm to 110 mm Code 128 (10 mil): 20 mm to 205 mm Data Matrix (5 mil): 40 mm to 85 mm QR Code (10 mil): 20 mm to 140 mm QR Code (20 mil): 20 mm to 200 mm |
| Detection angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° |
| Field of view | Horizontal 39°, vertical 29° |
| Symbol contrast | 20 % |
| Communication mode | Bluetooth BT 5.1, BLE |
| Wireless range | 80 m (open range) |
| Communication protocol | SmartSDK, Bluetooth, USB |
| Data interface | USB 2.0 (Type B) |
| Battery | 2700 mAh |
| Charging time | 6 h |
| Endurance | 12 h (interval scanning, once in 2 seconds) |
| Power supply | 5 VDC |
| Current consumption | 1.5 A (max.), 0.14 A (during standby) |
| Focal length | 4.9 mm |
| Ambient illumination | 0 lux to 100000 lux |
| Light source | White LED |
| Aiming system | Cross laser aiming |
| Prompt | LED indicator, buzzer, vibrator |
| Dimension | 66.5 mm × 94 mm × 169.5 mm (2.6" × 3.7" × 6.7") |
| Weight | Approx. 160 g (0.4 lb.) |
| Ingress protection | IP42 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) |
| Humidity | 5 % RH to 95 % RH (no condensation) |
| Laser safety class | Laser 2 |
| Wavelength | 650 nm |
| Pulse width | 8 ms |
| Maximum power | 1 mW |
| Client software | IDMVS |
| Certification | CE, KC |
| Data interface | USB 2.0 (Type B), USB 2.0 (Type A) |
| Power supply | 5 VDC |
| Dimension | 82.6 mm × 121.8 mm × 76.1 mm (3.3" × 4.8" × 3.0") |
| Weight | Approx. 120 g (0.3 lb.) |
| Ingress protection | IP40 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 5 % RH to 95 % RH (no condensation) |
| Current consumption | 1.5 A (max.), 0.01 A (during standby) |
| Input voltage | 5 VDC |
| Device type | Handscanner |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
Documents
- Download datasheet
Data Sheet HikRobot Handscanner MV-IDH2000B/13NR/05WN
Datasheet · EN · 660 KB
- Download
Drawing HikRobot Handscanner MV-IDH2000B/13NR/05WN
Technical drawing · EN · 10176 KB
- Download
Firmware HikRobot Handscanner MV-IDH2000B/13NR/05WN
Software / firmware · EN · 38634 KB
- Download
User Manual HikRobot Handscanner MV-IDH2000B/13NR/05WN
Manual · EN · 3678 KB
- Download
Industrial Protocol HikRobot Handscanner MV-IDH2000B/13NR/05WN
Communication protocol · EN · 7713 KB
Description
Key Feature - Built-in code reading algorithm for decoding different types of 1D codes and 2D codes. - Provides good robustness to read codes with spots, defects and low contrast ratio. - Supports continuous code reading, batch code reading for improving code reading efficiency. - Supports wireless communication via Bluetooth. - Adopts 2700 mAh battery with long standby time. - IP42 and drop height of 1.8 m.
