HIKROBOT

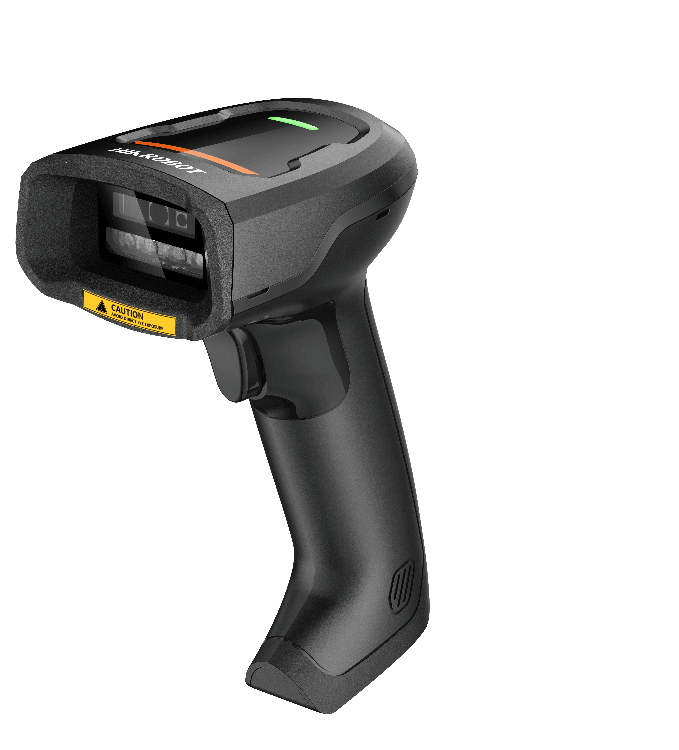

Handheld reader MV-IDH2000P/13SR/05RN/U
Manufacturer part number: MV-IDH2000P/13SR/05RN/U
- Device type
- Handscanner
- Code type
- 1D and 2D
- Reading profile
- Standard range
- Design
- Corded
- Communication
- USB, RS-232
- Ingress protection
- IP42
- Weight
- 160 g
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-IDH2000P/13SR/05RN/U |
|---|---|
| Type | Industial Wired Handheld Code Reader |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D codes: QR Code, Data Matrix, MicroQR, Aztec Stacked code: PDF417 |
| Min. accuracy | 1D codes: 3 mil 2D codes: 5 mil |
| Sensor type | CMOS |
| Resolution | 1280 × 1024 |
| Depth of field | Code 128 (3 mil): 70 mm to 155 mm Code 128 (10 mil): 30 mm to 430 mm QR Code (10 mil): 45 mm to 230 mm QR Code (15 mil): 20 mm to 350 mm QR Code (20 mil): 20 mm to 450 mm |
| Field of view | Horizontal 39°, vertical 29° |
| Detection angle | Tilt angle ± 65°, skew angle ± 65°, rotation angle 360° |
| Symbol contrast | 20 % |
| Communication protocol | SmartSDK, Serial, USB (HID/CDC) |
| Data interface | USB 2.0 |
| Power supply | 5 VDC |
| Current consumption | 0.9 A (max.), 0.5 A (typical) |
| Ambient illumination | 0 lux to 100000 lux |
| Light source | White LED, red LED, blue LED |
| Aiming system | Cross laser aiming |
| Prompt | LED indicator, buzzer, vibrator |
| Dimension | 66.5 mm × 94 mm × 169.5 mm (2.6" × 3.7" × 6.7") |
| Weight | Approx. 160 g (0.4 lb.) |
| Ingress protection | IP42 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 5 % RH to 95 % RH (no condensation) |
| Laser safety class | Laser 2 |
| Wavelength | 650 nm |
| Pulse width | 15 ms |
| Maximum power | 1 mW |
| Client software | IDMVS |
| Certification | CE, KC |
| Input voltage | 5 VDC |
| Device type | Handscanner |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
Documents
- Download datasheet
Data Sheet HikRobot Handscanner MV-IDH2000P/13SR/05RN/U
Datasheet · EN · 585 KB
- Download
Drawing HikRobot Handscanner MV-IDH2000P/13SR/05RN/U
Technical drawing · EN · 7621 KB
- Download
Firmware HikRobot Handscanner MV-IDH2000P/13SR/05RN/U
Software / firmware · EN · 38545 KB
- Download
User Manual HikRobot Handscanner MV-IDH2000P/13SR/05RN/U
Manual · EN · 2829 KB
- Download
Industrial Protocol HikRobot Handscanner MV-IDH2000P/13SR/05RN/U
Communication protocol · EN · 7713 KB
Description
Key Feature - Built-in code reading algorithm for decoding different types of 1D codes and 2D codes. - Provides good robustness to read codes with spots, defects and low contrast ratio. - Supports switching to white light, red light, or blue light, and supports polling of three-color light source, providing greater scene adaptability and enhanced code reading performance. - Supports multiple output modes, such as USB-HID, USB-CDC, and RS-232. - Easy to replace components. - IP42 and drop height of 1.8 m. - Supports displaying device status via buzzer and indicator.
