HIKROBOT

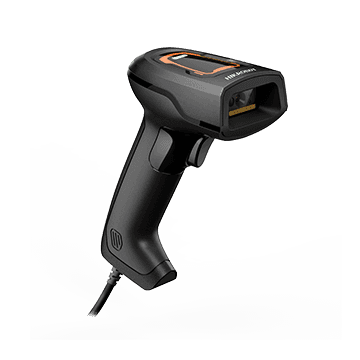

Handheld reader MV-IDH2000/13SR/05WP/U/PM
Manufacturer part number: MV-IDH2000/13SR/05WP/U/PM
- Device type
- Handscanner
- Code type
- 1D and 2D
- Reading profile
- Standard range
- Design
- Corded
- Communication
- USB, RS-232
- Ingress protection
- IP42
- Weight
- 160 g
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-IDH2000/13SR/05WP/U/PM |
|---|---|
| Type | Compact Industrial Wired Handheld Code Reader（USB） |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D codes: QR Code, Data Matrix, MicroQR, Aztec Stacked code: PDF417 |
| Min. accuracy | 4 mil 1D codes: 3 mil 2D codes: 4 mil 1D codes: 3 mil 2D codes: 5 mil 1D codes: 4 mil 2D codes: 5 mil |
| Sensor type | CMOS |
| Resolution | 640 × 480 1280 × 1024 |
| Depth of field | EAN 13 (13 mil): 30 mm to 240 mm Code 39 (5 mil): 50 mm to 100 mm Code 128 (10 mil): 30 mm to 240 mm Data Matrix (10 mil): 40 mm to 130 mm QR Code (15 mil): 15 mm to 205 mm Code 128 (3 mil): 30 mm to 110 mm Code 128 (10 mil): 20 mm to 205 mm Data Matrix (5 mil): 40 mm to 85 mm QR Code (10 mil): 20 mm to 140 mm QR Code (20 mil): 20 mm to 200 mm Code 128 (3 mil): 70 mm to 160 mm Code 128 (10 mil): 30 mm to 440 mm QR Code (10 mil): 45 mm to 235 mm QR Code (15 mil): 20 mm to 360 mm QR Code (20 mil): 20 mm to 460 mm Code 39 (5 mil): 45 mm to 175 mm Code 128 (10 mil): 10 mm to 415 mm QR Code (10 mil): 35 mm to 220 mm QR Code (15 mil): 10 mm to 350 mm QR Code (20 mil): 10 mm to 415 mm |
| Field of view | Horizontal 42°, vertical 32° Horizontal 39°, vertical 29° Horizontal 47°, vertical 39° |
| Detection angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° Tilt angle ± 65°, skew angle ± 65°, rotation angle 360° |
| Symbol contrast | 20 % |
| Communication protocol | SmartSDK, Serial, USB (HID/CDC) |
| Data interface | USB 2.0 |
| Power supply | 5 VDC |
| Current consumption | 0.9 A (max.), 0.5 A (typical) |
| Focal length | 3.1 mm 4.9 mm 3.9 mm |
| Ambient illumination | 0 lux to 100000 lux |
| Light source | White LED |
| Aiming system | Orange LED Cross laser aiming |
| Prompt | LED indicator, buzzer, vibrator |
| Dimension | 66.5 mm × 94 mm × 169.5 mm (2.6" × 3.7" × 6.7") |
| Weight | Approx. 160 g (0.4 lb.) |
| Ingress protection | IP42 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 5 % RH to 95 % RH (no condensation) |
| Laser safety class | Laser 2 |
| Wavelength | 650 nm |
| Pulse width | 8 ms |
| Maximum power | 1 mW |
| Client software | IDMVS |
| Certification | CE, KC |
| Input voltage | 5 VDC |
| Device type | Handscanner |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
Documents
- Download datasheet
Data Sheet HikRobot Handscanner MV-IDH2000/13SR/05WP/U/PM
Datasheet · EN · 634 KB
- Download
Drawing HikRobot Handscanner MV-IDH2000/13SR/05WP/U/PM
Technical drawing · EN · 7048 KB
- Download
Firmware HikRobot Handscanner MV-IDH2000/13SR/05WP/U/PM
Software / firmware · EN · 38552 KB
- Download
User Manual HikRobot Handscanner MV-IDH2000/13SR/05WP/U/PM
Manual · EN · 3076 KB
- Download
Industrial Protocol HikRobot Handscanner MV-IDH2000/13SR/05WP/U/PM
Communication protocol · EN · 7713 KB
Description
Key Feature - Built-in code reading algorithm for decoding different types of 1D codes and 2D codes. - Provides good robustness to read codes with spots, defects and low contrast ratio. - Supports multiple output modes, such as USB-HID, USB-CDC, and RS-232. - Easy to replace components. - IP42 and drop height of 1.8 m. - Supports displaying device status via buzzer and indicator.
