Line light OPT-LSNS188-B
Manufacturer part number: OPT-LSNS188-B
Series: OPT-LSNS-Serie (passiv gekühlte Zeilenbeleuchtungen)
- Illuminated area
- 170 mm?
- Light color
- Blue
- Cooling
- Passive / natural convection
- Drive / controller
- 24 V; Controller empfohlen
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-LSNS188-B |
|---|---|
| Color | Blue |
| Voltage | 24 V |
| Power | 16.8 W |
| Stock Code | 11540018100 |
| Recommended Controller | OPT-DPA2024E(B) |
| Dimensions (L x W x H) | 188 × 30 × 60 mm |
| Product series | OPT-LSNS (passively cooled) |
| Illuminated area | 170 mm |
| Cooling | Passive / natural convection |
| Connection | JST SMR-02V-B |
| Controller required | Recommended |
| Cable length | 800 ± 20 mm |
| Min. bending radius of the cable | 20 mm |
| Housing length | 188 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

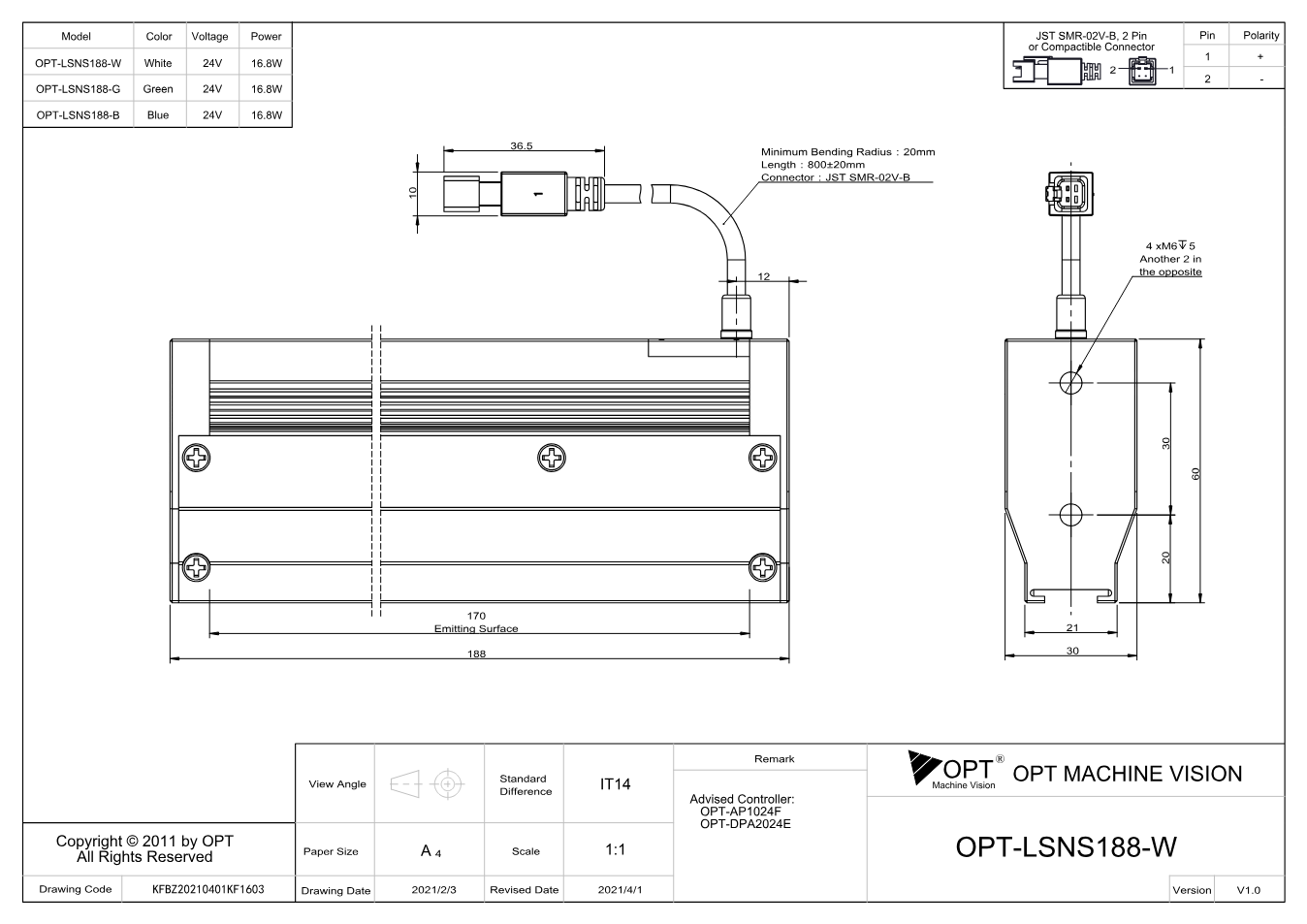

Dimensional drawing
Documents
- Download datasheet
OPT-LSNS-Serie (passiv gekühlte Zeilenbeleuchtungen): Serienbroschüre OPT (EN)
Datasheet · EN · 165 KB
- Download datasheet
OPT-LSNS-Serie (passiv gekühlte Zeilenbeleuchtungen): Serienbroschüre OPT (EN)
Datasheet · EN · 4480 KB
- Download
Maßzeichnung OPT-LSNS188 (V1.0) (PDF)
Technical drawing · EN · 161 KB
- Download
Maßzeichnung OPT-LSNS188 (V1.0U) (PDF)
Technical drawing · EN · 161 KB
Accessories
Beleuchtungskabel(12)
OPT
Verlängerungskabel 2-polig (JST) OPT-EX1M-2P-D, 1 m, Schleppkette
JST SMR-02V-B · 1 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX1M-2P-R, 1 m, Roboterkabel
JST SMR-02V-B · 1 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX2M-2P-D, 2 m, Schleppkette
JST SMR-02V-B · 2 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX2M-2P-R, 2 m, Roboterkabel
JST SMR-02V-B · 2 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX3M-2P-D, 3 m, Schleppkette
JST SMR-02V-B · 3 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX3M-2P-R, 3 m, Roboterkabel
JST SMR-02V-B · 3 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX5M-2P-D, 5 m, Schleppkette
JST SMR-02V-B · 5 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX5M-2P-R, 5 m, Roboterkabel
JST SMR-02V-B · 5 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX10M-2P-D, 10 m, Schleppkette
JST SMR-02V-B · 10 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX10M-2P-R, 10 m, Roboterkabel
JST SMR-02V-B · 10 m
OPT
Verzweigungskabel 2-polig (JST) OPT-EX1M-2P-2B, 1 m (0,5 m + 0,5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
OPT
Verzweigungskabel 2-polig (JST) OPT-EX1M-2P-4B, 1 m (0,5 m + 0,5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
Light controllers(1)
Description
OPT-LSNS188-B is a line light from the OPT-LSNS series by OPT. Key figures according to the manufacturer: illumination range 170 mm at 188 mm housing length, light color blue, power consumption 16.8 W, input voltage 24 V, passive cooling, connector JST SMR-02V-B. OPT recommends the controller OPT-DPA2024E(B).
The OPT-LSNS and OPT-LSNL series are line lights with passive cooling. The manufacturer calls the fanless design quiet and stable and recommends it for environments with special requirements regarding noise, vibration and air flow.
