Line light OPT-LSNS146-G
Manufacturer part number: OPT-LSNS146-G
Series: OPT-LSNS-Serie (passiv gekühlte Zeilenbeleuchtungen)
- Illuminated area
- 128 mm?
- Light color
- Green
- Cooling
- Passive / natural convection
- Drive / controller
- 24 V; Controller empfohlen
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-LSNS146-G |
|---|---|
| Color | Green |
| Voltage | 24 V |
| Power | 12 W |
| Stock Code | 11540013100 |
| Recommended Controller | OPT-DPA2024E(B) |
| Dimensions (L x W x H) | 146 × 30 × 60 mm |
| Product series | OPT-LSNS (passively cooled) |
| Illuminated area | 128 mm |
| Cooling | Passive / natural convection |
| Connection | JST SMR-02V-B |
| Controller required | Recommended |
| Cable length | 800 ± 20 mm |
| Min. bending radius of the cable | 20 mm |
| Housing length | 146 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

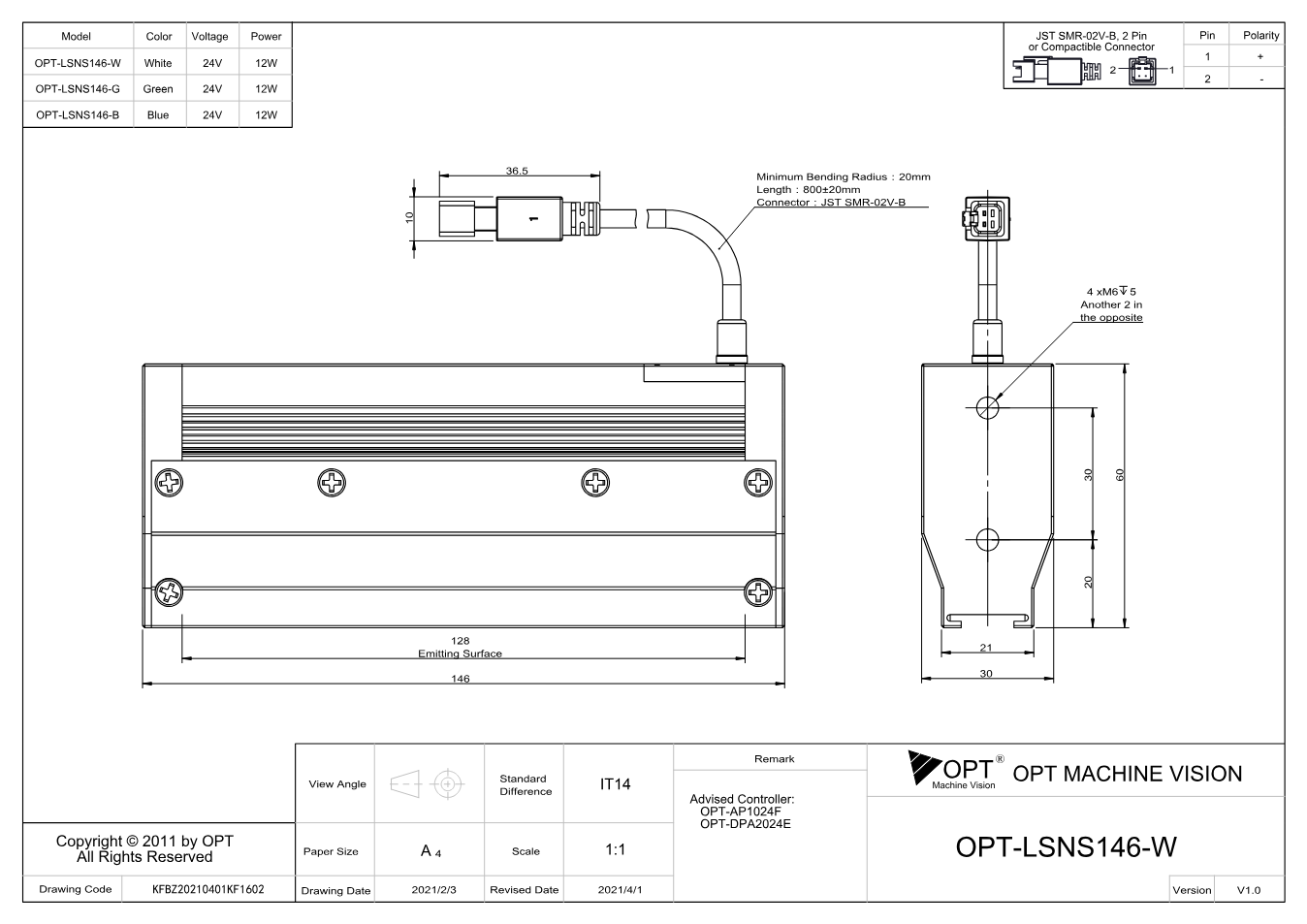

Dimensional drawing
Documents
- Download datasheet
OPT-LSNS-Serie (passiv gekühlte Zeilenbeleuchtungen): Serienbroschüre OPT (EN)
Datasheet · EN · 165 KB
- Download datasheet
OPT-LSNS-Serie (passiv gekühlte Zeilenbeleuchtungen): Serienbroschüre OPT (EN)
Datasheet · EN · 4 MB
- Download
Maßzeichnung OPT-LSNS146 (V1.0) (PDF)
Technical drawing · EN · 161 KB
- Download
Maßzeichnung OPT-LSNS146 (V1.0U) (PDF)
Technical drawing · EN · 161 KB
Accessories
Beleuchtungskabel(12)
OPT
Extension cable 2-pin (JST) OPT-EX1M-2P-D, 1 m, drag chain
JST SMR-02V-B · 1 m
OPT
Extension cable 2-pin (JST) OPT-EX1M-2P-R, 1 m, robot cable
JST SMR-02V-B · 1 m
OPT
Extension cable 2-pin (JST) OPT-EX2M-2P-D, 2 m, drag chain
JST SMR-02V-B · 2 m
OPT
Extension cable 2-pin (JST) OPT-EX2M-2P-R, 2 m, robot cable
JST SMR-02V-B · 2 m
OPT
Extension cable 2-pin (JST) OPT-EX3M-2P-D, 3 m, drag chain
JST SMR-02V-B · 3 m
OPT
Extension cable 2-pin (JST) OPT-EX3M-2P-R, 3 m, robot cable
JST SMR-02V-B · 3 m
OPT
Extension cable 2-pin (JST) OPT-EX5M-2P-D, 5 m, drag chain
JST SMR-02V-B · 5 m
OPT
Extension cable 2-pin (JST) OPT-EX5M-2P-R, 5 m, robot cable
JST SMR-02V-B · 5 m
OPT
Extension cable 2-pin (JST) OPT-EX10M-2P-D, 10 m, drag chain
JST SMR-02V-B · 10 m
OPT
Extension cable 2-pin (JST) OPT-EX10M-2P-R, 10 m, robot cable
JST SMR-02V-B · 10 m
OPT
Branch cable 2-pin (JST) OPT-EX1M-2P-2B, 1 m (0.5 m + 0.5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
OPT
Branch cable 2-pin (JST) OPT-EX1M-2P-4B, 1 m (0.5 m + 0.5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
Light controllers(1)
More variants in this series
Description
OPT-LSNS146-G is a line light from the OPT-LSNS series by OPT. Key figures according to the manufacturer: illumination range 128 mm at 146 mm housing length, light color green, power consumption 12 W, input voltage 24 V, passive cooling, connector JST SMR-02V-B. OPT recommends the controller OPT-DPA2024E(B).
The OPT-LSNS and OPT-LSNL series are line lights with passive cooling. The manufacturer calls the fanless design quiet and stable and recommends it for environments with special requirements regarding noise, vibration and air flow.
