Line light OPT-LSNLC146-W
Manufacturer part number: OPT-LSNLC146-W
Series: OPT-LSNLC-Serie (passiv gekühlte koaxiale Zeilenbeleuchtungen)
- Illuminated area
- 128 mm?
- Light color
- White
- Optical layout
- Koaxial?
- Cooling
- Passive / natural convection
- Drive / controller
- 24 V
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-LSNLC146-W |
|---|---|
| Color | white |
| Voltage | 24 V |
| Power | 21.6 W |
| Dimensions (L x W x H) | 146 × 32 × 151.5 mm |
| Product series | OPT-LSNLC (coaxial, passively cooled) |
| Optical layout | Koaxial |
| Beam characteristic | Highly directional |
| Illuminated area | 128 mm |
| Cooling | Passive / natural convection |
| Connection | JST SMR-02V-B |
| Min. bending radius of the cable | 20 mm |
| Housing length | 146 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

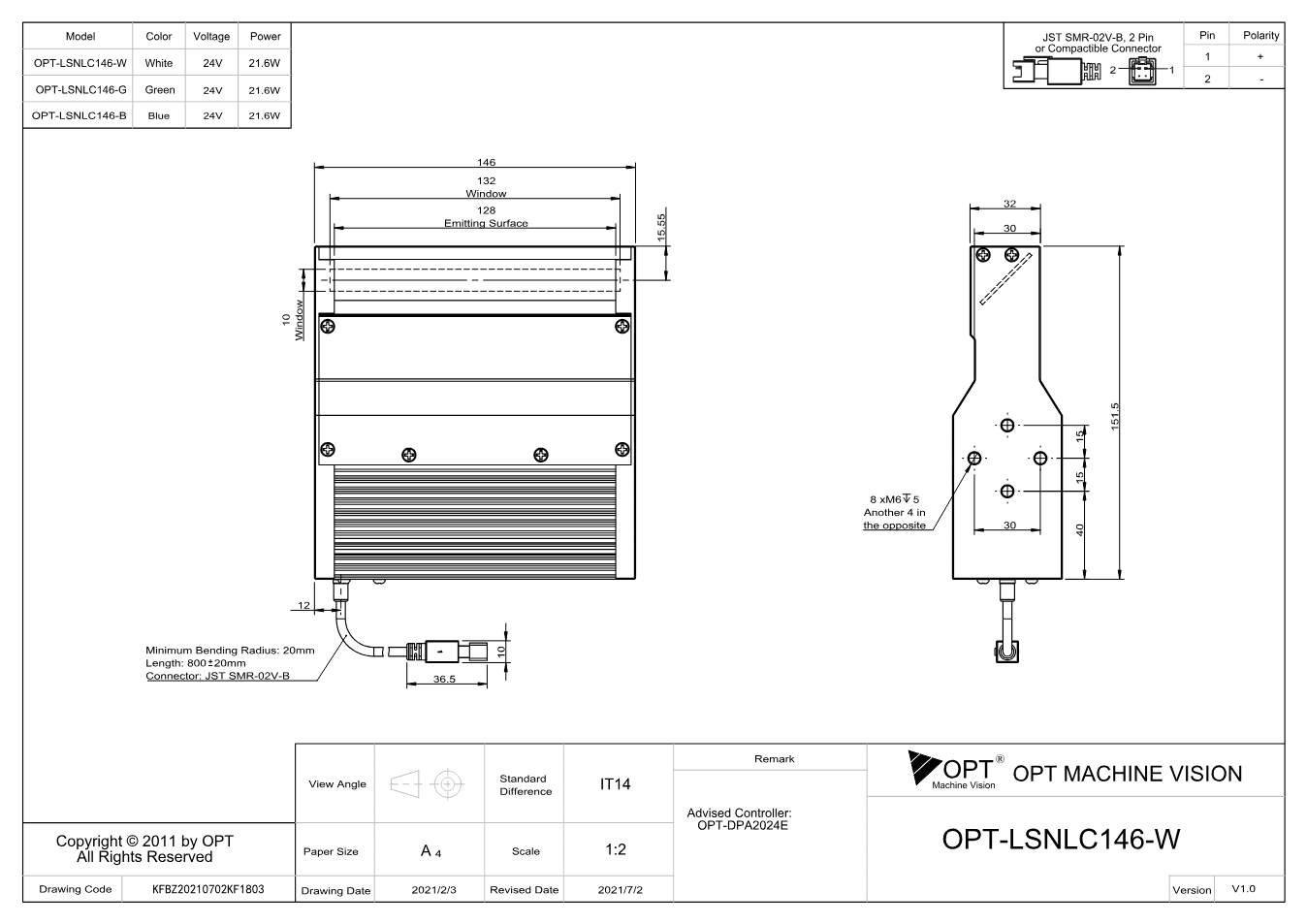

Dimensional drawing
Documents
Accessories
Beleuchtungskabel(12)
OPT
Extension cable 2-pin (JST) OPT-EX1M-2P-D, 1 m, drag chain
JST SMR-02V-B · 1 m
OPT
Extension cable 2-pin (JST) OPT-EX1M-2P-R, 1 m, robot cable
JST SMR-02V-B · 1 m
OPT
Extension cable 2-pin (JST) OPT-EX2M-2P-D, 2 m, drag chain
JST SMR-02V-B · 2 m
OPT
Extension cable 2-pin (JST) OPT-EX2M-2P-R, 2 m, robot cable
JST SMR-02V-B · 2 m
OPT
Extension cable 2-pin (JST) OPT-EX3M-2P-D, 3 m, drag chain
JST SMR-02V-B · 3 m
OPT
Extension cable 2-pin (JST) OPT-EX3M-2P-R, 3 m, robot cable
JST SMR-02V-B · 3 m
OPT
Extension cable 2-pin (JST) OPT-EX5M-2P-D, 5 m, drag chain
JST SMR-02V-B · 5 m
OPT
Extension cable 2-pin (JST) OPT-EX5M-2P-R, 5 m, robot cable
JST SMR-02V-B · 5 m
OPT
Extension cable 2-pin (JST) OPT-EX10M-2P-D, 10 m, drag chain
JST SMR-02V-B · 10 m
OPT
Extension cable 2-pin (JST) OPT-EX10M-2P-R, 10 m, robot cable
JST SMR-02V-B · 10 m
OPT
Branch cable 2-pin (JST) OPT-EX1M-2P-2B, 1 m (0.5 m + 0.5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
OPT
Branch cable 2-pin (JST) OPT-EX1M-2P-4B, 1 m (0.5 m + 0.5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
More variants in this series
- Line light OPT-LSNLC104-B
- Line light OPT-LSNLC104-G
- Line light OPT-LSNLC104-W
- Line light OPT-LSNLC128-R
- Line light OPT-LSNLC146-B
- Line light OPT-LSNLC146-G
- Line light OPT-LSNLC182-R
- Line light OPT-LSNLC188-B
- Line light OPT-LSNLC188-G
- Line light OPT-LSNLC188-W
- Line light OPT-LSNLC230-B
- Line light OPT-LSNLC230-G
Description
OPT-LSNLC146-W is a coaxial line light from the OPT-LSNLC series by OPT. Key figures according to the manufacturer: illumination range 128 mm at 146 mm housing length, light color white, power consumption 21.6 W, input voltage 24 V, passive cooling, connector JST SMR-02V-B.
The OPT-LSC series, in which OPT lists this model, is according to the manufacturer a coaxial line light with high light output. It illuminates mirror-like webs perpendicularly from the camera axis and makes surface defects visible as dark spots.
