Line light OPT-LSNLC146-G
Manufacturer part number: OPT-LSNLC146-G
Series: OPT-LSNLC-Serie (passiv gekühlte koaxiale Zeilenbeleuchtungen)
- Illuminated area
- 128 mm?
- Light color
- Green
- Optical layout
- Koaxial?
- Cooling
- Passive / natural convection
- Drive / controller
- 24 V
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-LSNLC146-G |
|---|---|
| Color | green |
| Voltage | 24 V |
| Power | 21.6 W |
| Dimensions (L x W x H) | 146 × 32 × 151.5 mm |
| Product series | OPT-LSNLC (coaxial, passively cooled) |
| Optical layout | Koaxial |
| Beam characteristic | Highly directional |
| Illuminated area | 128 mm |
| Cooling | Passive / natural convection |
| Connection | JST SMR-02V-B |
| Min. bending radius of the cable | 20 mm |
| Housing length | 146 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

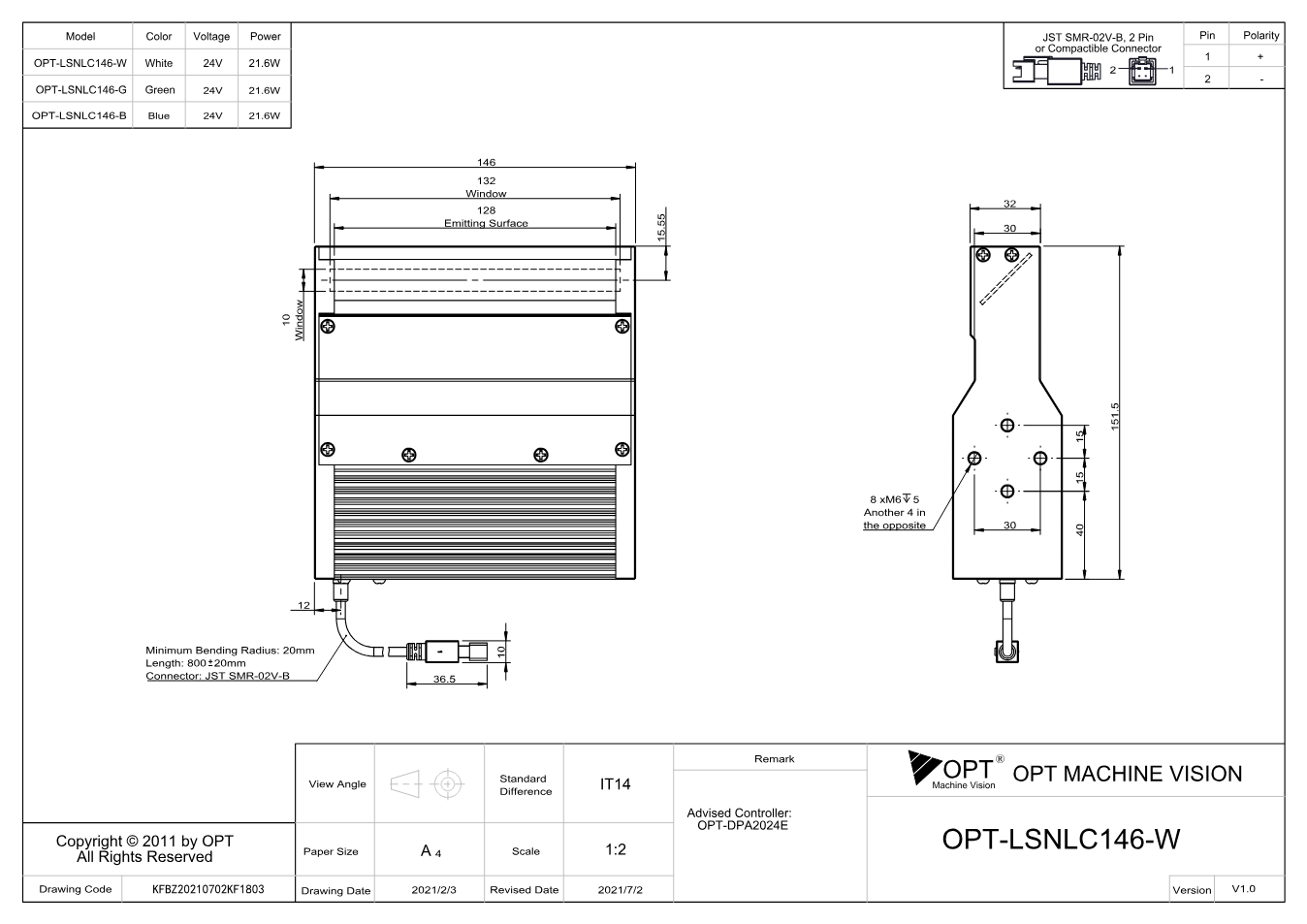

Dimensional drawing
Documents
Accessories
Beleuchtungskabel(12)
OPT
Verlängerungskabel 2-polig (JST) OPT-EX1M-2P-D, 1 m, Schleppkette
JST SMR-02V-B · 1 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX1M-2P-R, 1 m, Roboterkabel
JST SMR-02V-B · 1 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX2M-2P-D, 2 m, Schleppkette
JST SMR-02V-B · 2 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX2M-2P-R, 2 m, Roboterkabel
JST SMR-02V-B · 2 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX3M-2P-D, 3 m, Schleppkette
JST SMR-02V-B · 3 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX3M-2P-R, 3 m, Roboterkabel
JST SMR-02V-B · 3 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX5M-2P-D, 5 m, Schleppkette
JST SMR-02V-B · 5 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX5M-2P-R, 5 m, Roboterkabel
JST SMR-02V-B · 5 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX10M-2P-D, 10 m, Schleppkette
JST SMR-02V-B · 10 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX10M-2P-R, 10 m, Roboterkabel
JST SMR-02V-B · 10 m
OPT
Verzweigungskabel 2-polig (JST) OPT-EX1M-2P-2B, 1 m (0,5 m + 0,5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
OPT
Verzweigungskabel 2-polig (JST) OPT-EX1M-2P-4B, 1 m (0,5 m + 0,5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
Description
OPT-LSNLC146-G is a coaxial line light from the OPT-LSNLC series by OPT. Key figures according to the manufacturer: illumination range 128 mm at 146 mm housing length, light color green, power consumption 21.6 W, input voltage 24 V, passive cooling, connector JST SMR-02V-B.
The OPT-LSC series, in which OPT lists this model, is according to the manufacturer a coaxial line light with high light output. It illuminates mirror-like webs perpendicularly from the camera axis and makes surface defects visible as dark spots.
