Line light OPT-LSE104-G
Manufacturer part number: OPT-LSE104-G
Series: OPT-LSE-Serie (schmale Linienbeleuchtungen)
- Light color
- Green
- Cooling
- Fan
- Drive / controller
- 24 V
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-LSE104-G |
|---|---|
| Color | green |
| Voltage | 24 V |
| Power | 21.6 W |
| Dimensions (L x W x H) | 104 × 30 × 130 mm |
| Product series | OPT-LSE (schmalstrahlig) |
| Beam characteristic | Narrow beam |
| Light outlet width | < 0.5 mm |
| Divergence angle | 0.5° |
| Cooling | Fan |
| Connection | JST SMR-02V-B |
| Cable length | 800 ± 20 mm |
| Housing length | 104 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

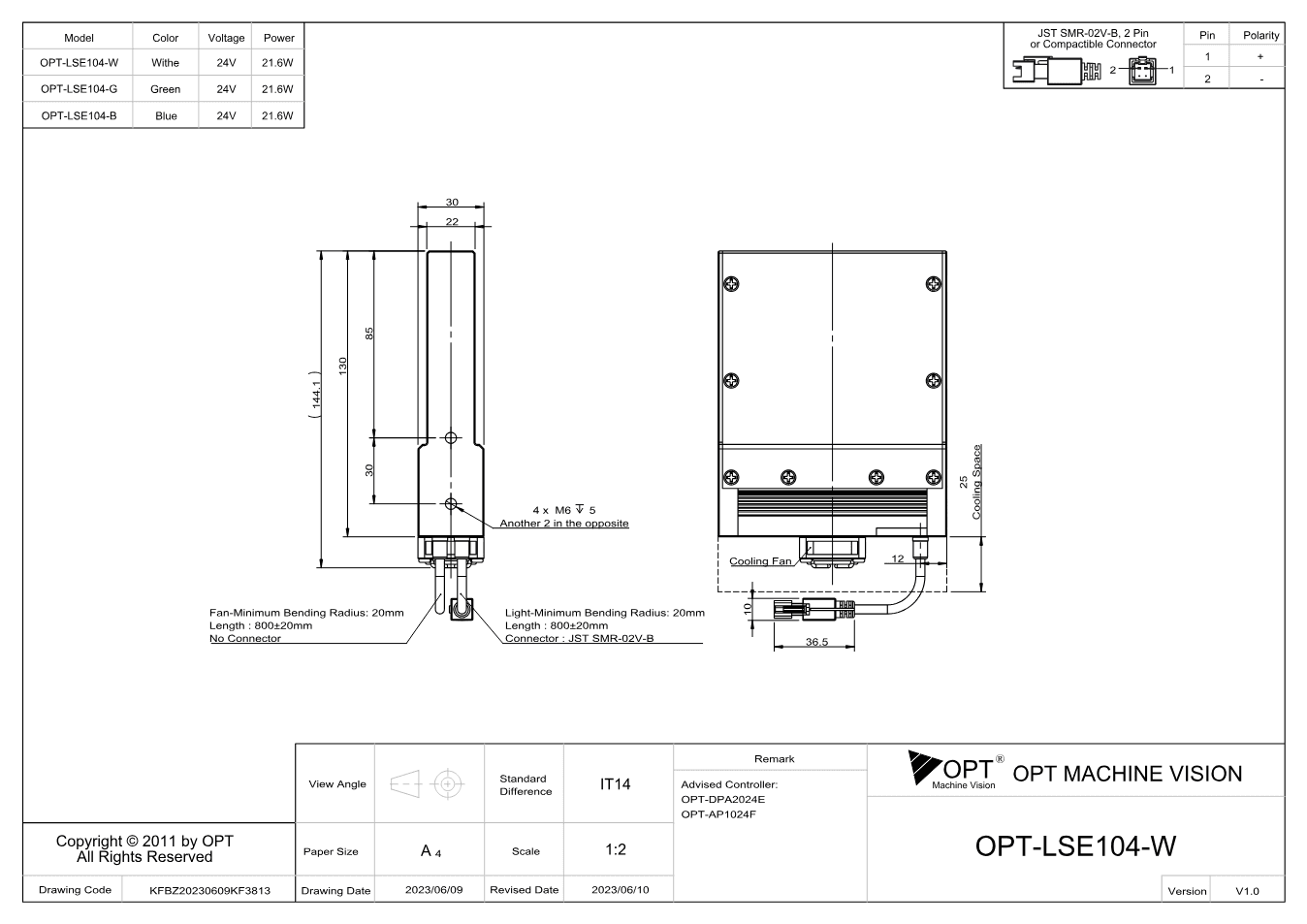

Dimensional drawing
Documents
- Download datasheet
OPT-LSE-Serie (schmale Linienbeleuchtungen): Serienbroschüre OPT (EN)
Datasheet · EN · 2 MB
- Download
Maßzeichnung OPT-LSE104 (V1.0) (PDF)
Technical drawing · EN · 87 KB
Accessories
Beleuchtungskabel(12)
OPT
Verlängerungskabel 2-polig (JST) OPT-EX1M-2P-D, 1 m, Schleppkette
JST SMR-02V-B · 1 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX1M-2P-R, 1 m, Roboterkabel
JST SMR-02V-B · 1 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX2M-2P-D, 2 m, Schleppkette
JST SMR-02V-B · 2 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX2M-2P-R, 2 m, Roboterkabel
JST SMR-02V-B · 2 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX3M-2P-D, 3 m, Schleppkette
JST SMR-02V-B · 3 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX3M-2P-R, 3 m, Roboterkabel
JST SMR-02V-B · 3 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX5M-2P-D, 5 m, Schleppkette
JST SMR-02V-B · 5 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX5M-2P-R, 5 m, Roboterkabel
JST SMR-02V-B · 5 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX10M-2P-D, 10 m, Schleppkette
JST SMR-02V-B · 10 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX10M-2P-R, 10 m, Roboterkabel
JST SMR-02V-B · 10 m
OPT
Verzweigungskabel 2-polig (JST) OPT-EX1M-2P-2B, 1 m (0,5 m + 0,5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
OPT
Verzweigungskabel 2-polig (JST) OPT-EX1M-2P-4B, 1 m (0,5 m + 0,5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
Description
OPT-LSE104-G is a line light from the OPT-LSE series by OPT. Key figures according to the manufacturer: light color green, power consumption 21.6 W, input voltage 24 V, fan cooling, connector JST SMR-02V-B.
The OPT-LSE series produces a narrowly confined light line with a narrow beam angle. The light stays where it is needed and does not scatter into neighboring areas. This helps when several inspection stations stand close together.
