Line light OPT-LSE188-B
Manufacturer part number: OPT-LSE188-B
Series: OPT-LSE-Serie (schmale Linienbeleuchtungen)
- Illuminated area
- 170 mm?
- Light color
- Blue
- Cooling
- Fan
- Drive / controller
- 24 V
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-LSE188-B |
|---|---|
| Color | blue |
| Voltage | 24 V |
| Power | 43.2 W |
| Dimensions (L x W x H) | 188 × 30 × 130 mm |
| Product series | OPT-LSE (schmalstrahlig) |
| Beam characteristic | Narrow beam |
| Light outlet width | < 0.5 mm |
| Divergence angle | 0.5° |
| Illuminated area | 170 mm |
| Cooling | Fan |
| Connection | JST SMR-02V-B |
| Cable length | 800 ± 20 mm |
| Housing length | 188 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

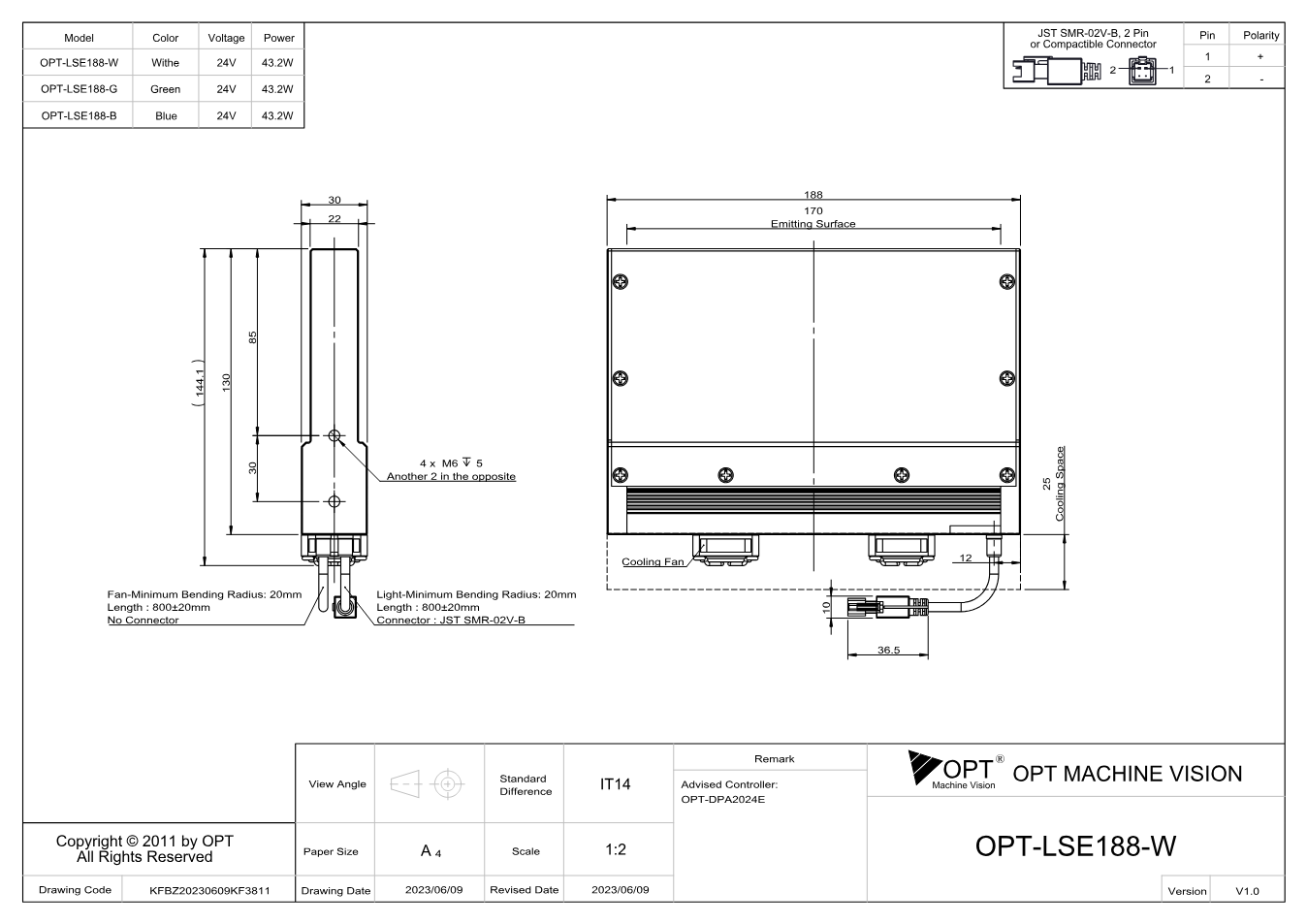

Dimensional drawing
Documents
- Download datasheet
OPT-LSE-Serie (schmale Linienbeleuchtungen): Serienbroschüre OPT (EN)
Datasheet · EN · 2543 KB
- Download
Maßzeichnung OPT-LSE188 (V1.0) (PDF)
Technical drawing · EN · 89 KB
Accessories
Beleuchtungskabel(12)
OPT
Verlängerungskabel 2-polig (JST) OPT-EX1M-2P-D, 1 m, Schleppkette
JST SMR-02V-B · 1 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX1M-2P-R, 1 m, Roboterkabel
JST SMR-02V-B · 1 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX2M-2P-D, 2 m, Schleppkette
JST SMR-02V-B · 2 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX2M-2P-R, 2 m, Roboterkabel
JST SMR-02V-B · 2 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX3M-2P-D, 3 m, Schleppkette
JST SMR-02V-B · 3 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX3M-2P-R, 3 m, Roboterkabel
JST SMR-02V-B · 3 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX5M-2P-D, 5 m, Schleppkette
JST SMR-02V-B · 5 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX5M-2P-R, 5 m, Roboterkabel
JST SMR-02V-B · 5 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX10M-2P-D, 10 m, Schleppkette
JST SMR-02V-B · 10 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX10M-2P-R, 10 m, Roboterkabel
JST SMR-02V-B · 10 m
OPT
Verzweigungskabel 2-polig (JST) OPT-EX1M-2P-2B, 1 m (0,5 m + 0,5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
OPT
Verzweigungskabel 2-polig (JST) OPT-EX1M-2P-4B, 1 m (0,5 m + 0,5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
Description
OPT-LSE188-B is a line light from the OPT-LSE series by OPT. Key figures according to the manufacturer: illumination range 170 mm at 188 mm housing length, light color blue, power consumption 43.2 W, input voltage 24 V, fan cooling, connector JST SMR-02V-B.
The OPT-LSE series produces a narrowly confined light line with a narrow beam angle. The light stays where it is needed and does not scatter into neighboring areas. This helps when several inspection stations stand close together.
