Line light OPT-LSA236-R
Manufacturer part number: OPT-LSA236-R
Series: OPT-LSA-Serie (Zeilenbeleuchtungen hoher Intensität)
- Light color
- Red
- Cooling
- Fan
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-LSA236-R |
|---|---|
| Color | red |
| Current | 6 A |
| Power | 144 W |
| Dimensions (L x W x H) | 236 × 50 × 126 mm |
| Product series | OPT-LSA (high intensity) |
| Beam characteristic | Highly directional |
| Cooling | Fan |
| Connection | ZQ GX16M-6A |
| Cable length | 1000 ± 20 mm |
| Min. bending radius of the cable | 40 mm |
| Housing length | 236 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

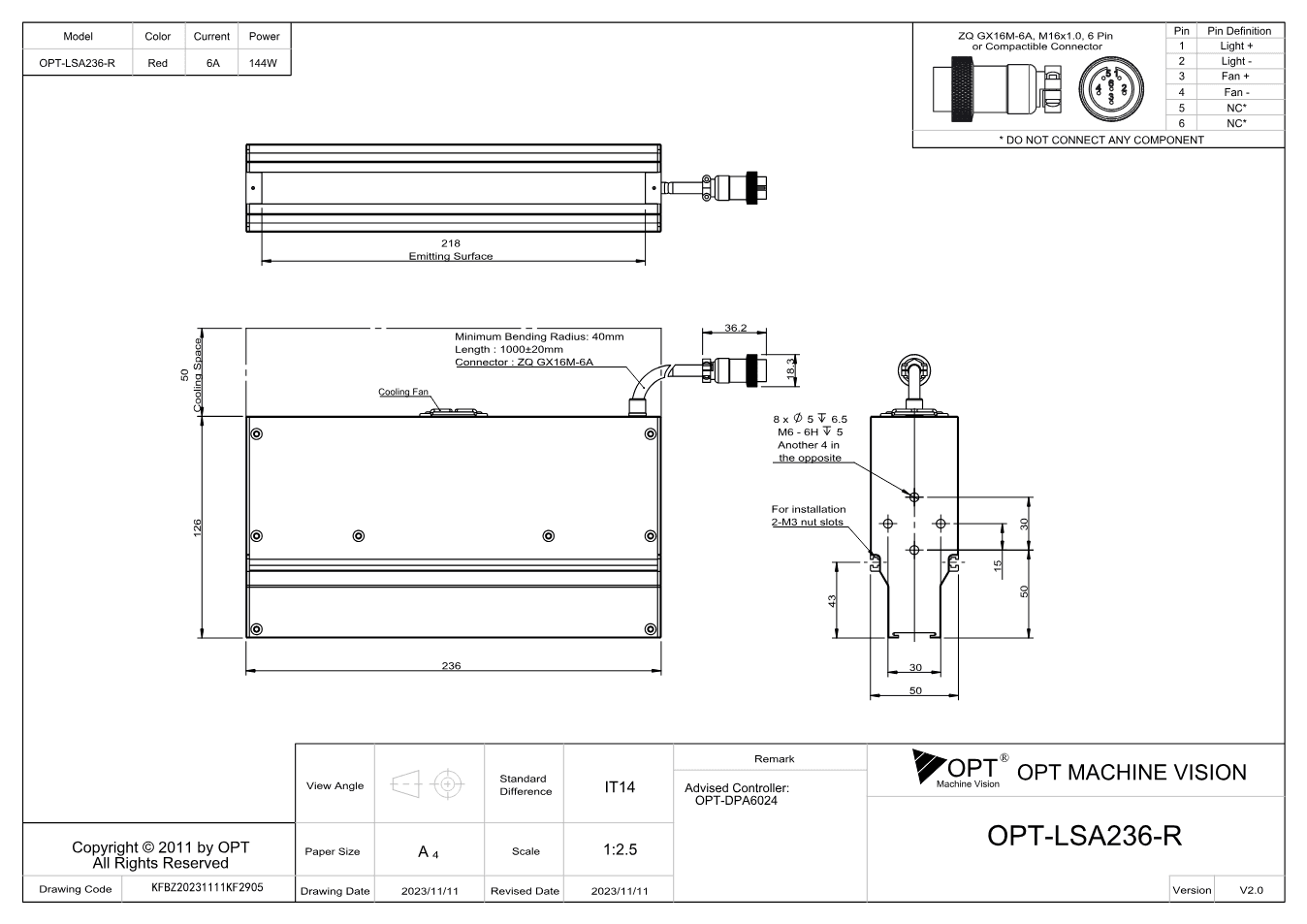

Dimensional drawing
Documents
- Download datasheet
OPT-LSA-Serie (Zeilenbeleuchtungen hoher Intensität): Serienbroschüre OPT (EN)
Datasheet · EN · 3 MB
- Download
Maßzeichnung OPT-LSA236 (V2.0) (PDF)
Technical drawing · EN · 264 KB
- Download
Maßzeichnung OPT-LSA236 (V2.0U) (PDF)
Technical drawing · EN · 264 KB
- Download
Maßzeichnung OPT-LSA236 (V1.0U) (PDF)
Technical drawing · EN · 109 KB
Accessories
Beleuchtungskabel(9)
OPT
Verlängerungskabel 6-polig, 6 A OPT-EX3M-6P-S-6A, 3 m
ZQ GX16M-6A · 3 m
OPT
Verlängerungskabel 6-polig, 6 A OPT-EX5M-6P-S-6A, 5 m
ZQ GX16M-6A · 5 m
OPT
Verlängerungskabel 6-polig, 6 A OPT-EX10M-6P-S-6A, 10 m
ZQ GX16M-6A · 10 m
OPT
Verlängerungskabel 6-polig, 6 A OPT-EX20M-6P-S-6A, 20 m
ZQ GX16M-6A · 20 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX1M-6P-S-6A, 1 m
ZQ GX16M-6A · 1 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX2M-6P-S-6A, 2 m
ZQ GX16M-6A · 2 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX3M-6P-S-6A, 3 m
ZQ GX16M-6A · 3 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX5M-6P-S-6A, 5 m
ZQ GX16M-6A · 5 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX10M-6P-S-6A, 10 m
ZQ GX16M-6A · 10 m
Description
OPT-LSA236-R is a line light from the OPT-LSA series by OPT. Key figures according to the manufacturer: light color red, power consumption 144 W, rated current 6 A, fan cooling, connector ZQ GX16M-6A.
The OPT-LSA series is a high-power line light for fast-running webs. For the series the manufacturer states up to 5000 klx at 50 mm working distance (measured on two models, guide values according to the manufacturer).
