Line light OPT-LSA344-R
Manufacturer part number: OPT-LSA344-R
Series: OPT-LSA-Serie (Zeilenbeleuchtungen hoher Intensität)
- Illuminated area
- 326 mm?
- Light color
- Red
- Cooling
- Fan
Price and availability on request
No obligation · we usually reply within 24 hours on business days
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-LSA344-R |
|---|---|
| Color | red |
| Current | 9 A |
| Power | 216 W |
| Dimensions (L x W x H) | 344 × 50 × 126 mm |
| Product series | OPT-LSA (high intensity) |
| Beam characteristic | Highly directional |
| Illuminated area | 326 mm |
| Cooling | Fan |
| Connection | WS20J6TQ |
| Cable length | 1000 ± 20 mm |
| Min. bending radius of the cable | 60 mm |
| Housing length | 344 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

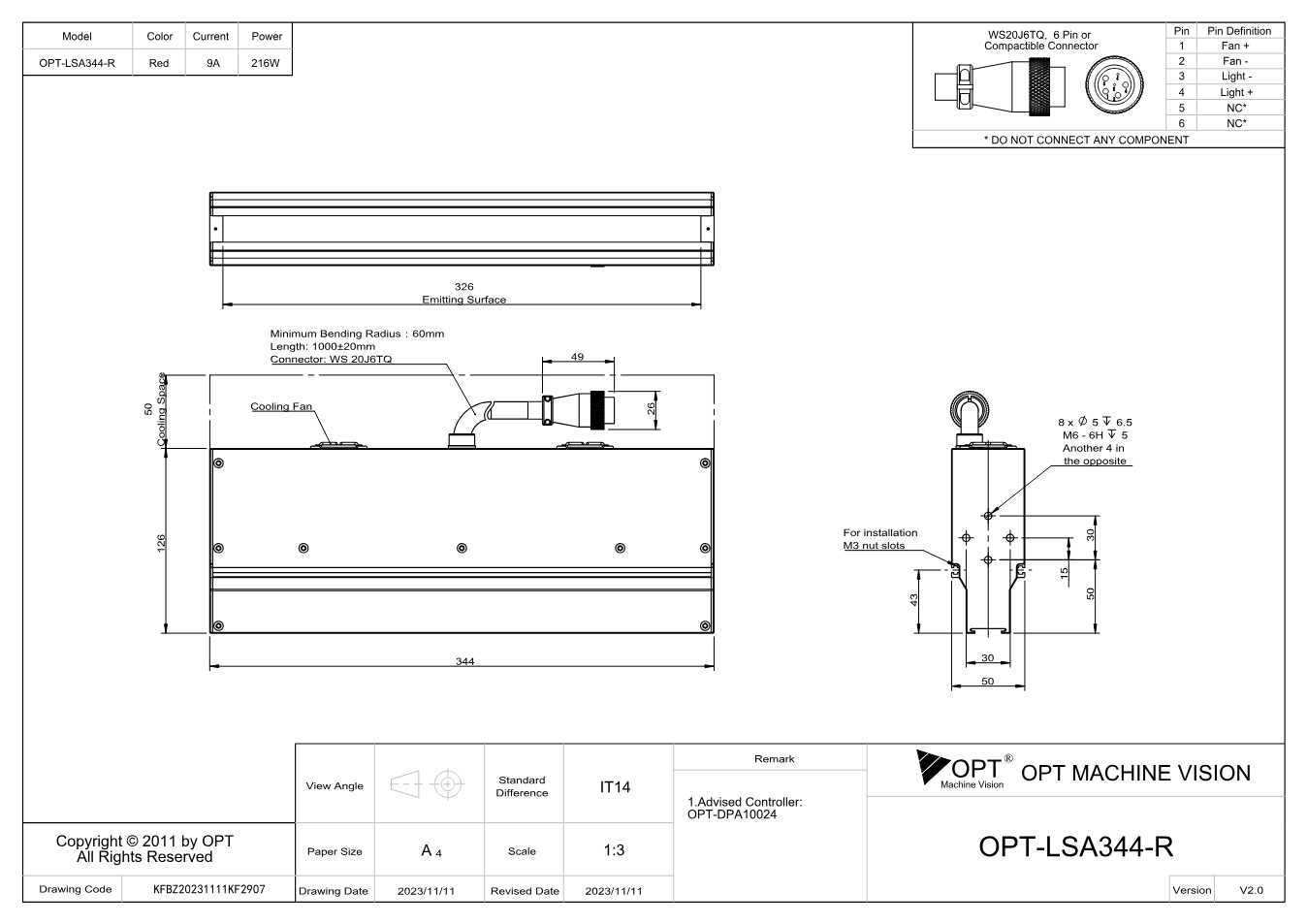

Dimensional drawing
Documents
- Download datasheet
OPT-LSA-Serie (Zeilenbeleuchtungen hoher Intensität): Serienbroschüre OPT (EN)
Datasheet · EN · 3 MB
- Download
Maßzeichnung OPT-LSA344 (V2.0) (PDF)
Technical drawing · EN · 239 KB
- Download
Maßzeichnung OPT-LSA344 (V2.0U) (PDF)
Technical drawing · EN · 239 KB
Accessories
Beleuchtungskabel(9)
OPT
Extension cable 6-pin, 20 A OPT-EX3M-6P-S-20A, 3 m
WS20J6TQ · 3 m
OPT
Extension cable 6-pin, 20 A OPT-EX5M-6P-S-20A, 5 m
WS20J6TQ · 5 m
OPT
Extension cable 6-pin, 20 A OPT-EX10M-6P-S-20A, 10 m
WS20J6TQ · 10 m
OPT
Extension cable 6-pin, 20 A OPT-EX20M-6P-S-20A, 20 m
WS20J6TQ · 20 m
OPT
Light cable 6-pin, 20 A OPT-DGYX1M-6P-S-20A, 1 m
WS20J6TQ · 1 m
OPT
Light cable 6-pin, 20 A OPT-DGYX2M-6P-S-20A, 2 m
WS20J6TQ · 2 m
OPT
Light cable 6-pin, 20 A OPT-DGYX3M-6P-S-20A, 3 m
WS20J6TQ · 3 m
OPT
Light cable 6-pin, 20 A OPT-DGYX5M-6P-S-20A, 5 m
WS20J6TQ · 5 m
OPT
Light cable 6-pin, 20 A OPT-DGYX10M-6P-S-20A, 10 m
WS20J6TQ · 10 m
More variants in this series
Description
OPT-LSA344-R is a line light from the OPT-LSA series by OPT. Key figures according to the manufacturer: illumination range 326 mm at 344 mm housing length, light color red, power consumption 216 W, rated current 9 A, fan cooling, connector WS20J6TQ.
The OPT-LSA series is a high-power line light for fast-running webs. For the series the manufacturer states up to 5000 klx at 50 mm working distance (measured on two models, guide values according to the manufacturer).
