Spot light OPT-LDS50-B
Manufacturer part number: OPT-LDS50-B
Series: OPT-LDS-Serie (kollimierte Spotbeleuchtungen)
- Spot type
- Collimated spot
- Beam characteristic
- Collimated
- Light exit
- Ø 40 mm
- Light color
- Blue
- Controller required
- Recommended
- Connection
- JST SMR-03V-B
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-LDS50-B |
|---|---|
| Color | Blue |
| Current | 1.0 A |
| Power | 3.3 W |
| Stock Code | 11390100011 |
| Emitting Surface (Diameter) | Ø 40 mm |
| Rated Current | 1.2 A |
| Recommended Controller | OPT-DPA2005E(B) |
| Size | Ø 50 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

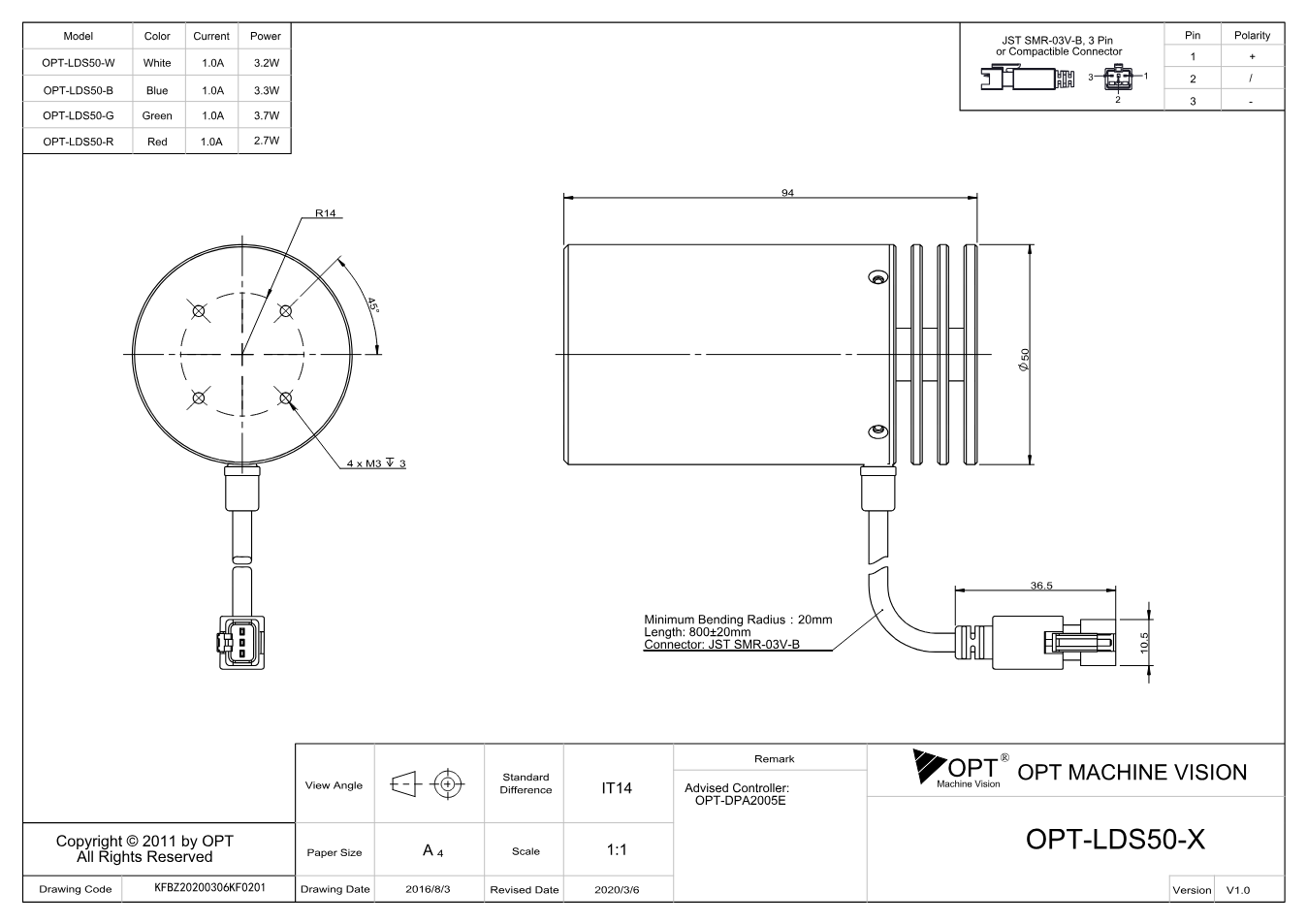

Dimensional drawing
Documents
- Download datasheet
OPT-LDS-Serie (kollimierte Spotbeleuchtungen) - Serienbroschüre OPT (EN)
Datasheet · EN · 728 KB
- Download
Maßzeichnung OPT-LDS50 (V1.0) (PDF)
Technical drawing · EN · 161 KB
Accessories
Beleuchtungskabel(12)
OPT
Verlängerungskabel 3-polig (JST) OPT-EX1M-3P-D, 1 m, Schleppkette
JST SMR-03V-B · 1 m
OPT
Verlängerungskabel 3-polig (JST) OPT-EX1M-3P-R, 1 m, Roboterkabel
JST SMR-03V-B · 1 m
OPT
Verlängerungskabel 3-polig (JST) OPT-EX2M-3P-D, 2 m, Schleppkette
JST SMR-03V-B · 2 m
OPT
Verlängerungskabel 3-polig (JST) OPT-EX2M-3P-R, 2 m, Roboterkabel
JST SMR-03V-B · 2 m
OPT
Verlängerungskabel 3-polig (JST) OPT-EX3M-3P-D, 3 m, Schleppkette
JST SMR-03V-B · 3 m
OPT
Verlängerungskabel 3-polig (JST) OPT-EX3M-3P-R, 3 m, Roboterkabel
JST SMR-03V-B · 3 m
OPT
Verlängerungskabel 3-polig (JST) OPT-EX5M-3P-D, 5 m, Schleppkette
JST SMR-03V-B · 5 m
OPT
Verlängerungskabel 3-polig (JST) OPT-EX5M-3P-R, 5 m, Roboterkabel
JST SMR-03V-B · 5 m
OPT
Verlängerungskabel 3-polig (JST) OPT-EX10M-3P-D, 10 m, Schleppkette
JST SMR-03V-B · 10 m
OPT
Verlängerungskabel 3-polig (JST) OPT-EX10M-3P-R, 10 m, Roboterkabel
JST SMR-03V-B · 10 m
OPT
Verzweigungskabel 3-polig (JST) OPT-EX1M-3P-2B, 1 m (0,5 m + 0,5 m)
JST SMR-03V-B · 1 m (0.5 m + 0.5 m)
OPT
Verzweigungskabel 3-polig (JST) OPT-EX1M-3P-4B, 1 m (0,5 m + 0,5 m)
JST SMR-03V-B · 1 m (0.5 m + 0.5 m)
Light controllers(1)
Description
OPT-LDS50-B belongs to the OPT-LDS series by OPT - kollimierte spot light. light color: blue, emitting surface: Ø 40 mm, power consumption: 1A/3.3 W, rated current: 1.2 A.
The OPT-LDS series delivers concentrated light over long distances. Because the beam hardly widens, the illuminance stays high even at several hundred millimeters of distance - useful when the light has to be kept out of the machine's working area.
Which light is the right one depends not only on the form factor and the light color, but also on the working distance, the part under inspection and the camera. Tell us what you need to inspect and we will match light, lens and controller to one another and quote price and delivery time.
