Light controller OPT-DPA2005EB-4
Manufacturer part number: OPT-DPA2005EB-4
- Control
- digital
- Output type
- Constant current
- Channels
- 4
- Output power
- 10 W per channel · 30 W total
- Light voltage
- 2 up to 5 V
- Operating mode
- Dauerlicht / Strobe
- Communication
- RS232, Ethernet (100 Mbit)
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-DPA2005EB-4 |
|---|---|
| Controller type | digital |
| Output type | Constant current |
| Channels | 4 |
| Compatible Light | 5 V |
| Input voltage | 100–240 V AC, 50/60 Hz |
| Input current | 1.8 A at 115 V AC / 1 A at 230 V AC |
| Lighting mode | Dauerlicht / Strobe |
| Auto sensing of light rated current | – |
| Manual setting for max. output current | 10 mA up to 2 A |
| Intensity control | Helligkeit in 256 Stufen adjustable |
| Short-circuit protection | At einem Kurzschluss an einem Controllerausgang spricht der Kurzschlussschutz des betreffenden Kanals an; der Kanal wird abgeschaltet and das Display zeigt „Er2“. |
| Overcurrent protection | Überschreitet der Ausgangsstrom eines Kanals den eingestellten Wert, spricht der Überstromschutz dieses Kanals an; der Kanal wird abgeschaltet und das Display zeigt „Er1“. |
| Triggering | Pegeltrigger (Low 0–2 V, High 5–24 V) |
| Normal trigger | Helligkeit in 256 Stufen adjustable |
| Normal trigger time unit | 1 µs / 10 µs / 1 ms / 100 ms |
| Normal trigger pulse width | 1 µs up to 30 s |
| High intensity trigger | 2 A Ausgang je Kanal |
| High intensity trigger pulse width | 0.01 up to 5.00 ms |
| Programmable trigger | bis zu 64 Abläufe, jeweils mit Helligkeit, Pulsbreite und Triggerquelle |
| Response time | ≥ 30 µs |
| Response frequency | ≤ 10 kHz |
| Output power | 10 W je Kanal, gesamt 30 W |
| Communication | RS232, Ethernet (100 Mbit) |
| Standby power consumption | 3.2 W |
| Hi-Pot test | AC 1500 V für 1 Minute, Ableitstrom < 10 mA |
| Insulation | DC 500 V, Isolationswiderstand > 20 MΩ |
| Operating temperature | Operation -5 °C up to 50 °C |
| Dimensions(mm³)(L × W × H) | 65 × 126.2 × 170 mm |
| Weight (kg) | 0.7 kg |
| Accessory type | Lichtcontroller |
| series | Digital Current Controller for Spot Lights |
| Response frequency | ≤ 10 kHz |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

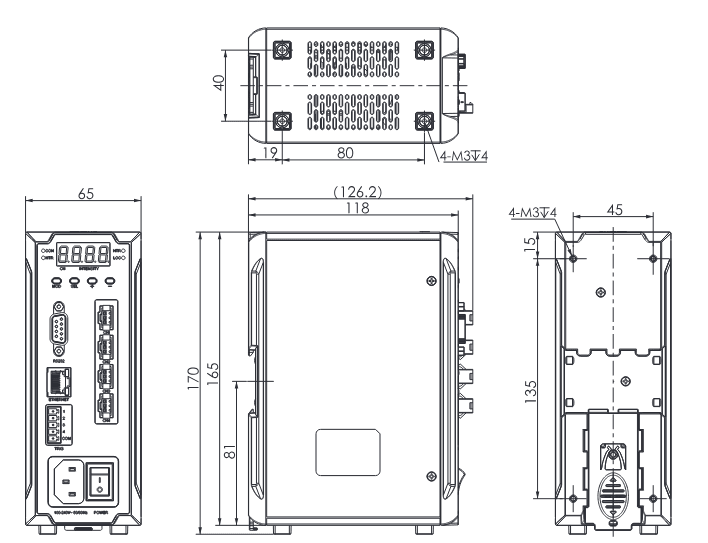

Dimensional drawing
Documents
- Download datasheet
Datasheet Digital Current Controller for Spot Lights (OPT)
Datasheet · EN · 3 MB
- Download
OPT Controller Demo-Software V3.7.1 (Windows)
Software / firmware · EN · 29 MB
- Download
OPT Controller SDK V1.2.2
Software / firmware · EN · 672 KB
- Download
OPT Controller Software für Linux x86_64 V2.27
Software / firmware · EN · 1 MB
- Download
Programmierhandbuch OPT Digital Light Source Controller V1.2.2
Manual · EN · 1 MB
- Download
Communication protocol OPT Digitalcontroller V3.4
Manual · EN · 148 KB
Description
The DPA2005 series is OPT's digital current controller for 5 V spot lights: up to 2 A per channel, continuous light and strobe, 256 brightness levels, level trigger with programmable sequences and control via RS232 or Ethernet. The EB version has a control panel with buttons, the E versions a rotary knob.
OPT-DPA2005EB-4: 4 channels, 10 W per channel, total 30 W. dimensions 65 × 126.2 × 170 mm; weight 0.7 kg. In the download area you will find the OPT data sheet of the series, demo software, SDK and programming manual and communication protocol. We are glad to advise you on matching controller, light and cable - just ask for price and delivery time.
