Coaxial light MV-LCDS-H-60-60-B

The MV-LCDS-H-60-60-B coaxial light from HIKROBOT is a coaxial front light with a 60 mm × 60 mm emitting area in blue. A beam splitter directs the light along the camera axis onto the part, and the camera looks through the same beam splitter. Flat, mirror-like surfaces appear evenly bright, while scratches, embossing, engravings and markings stay dark because they scatter the light out of the axis.

Technical data

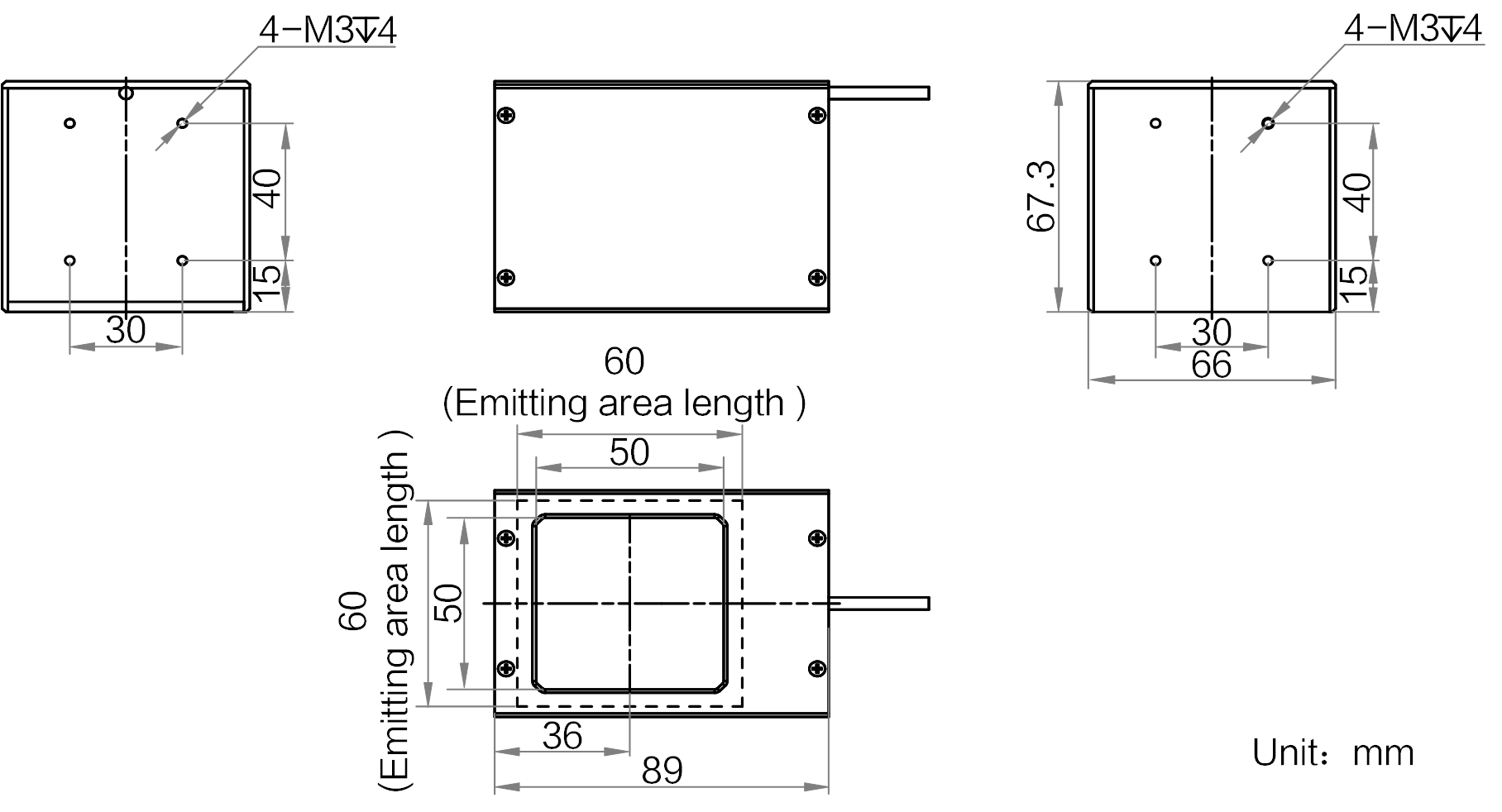

The emitting area measures 60 mm × 60 mm; at the center the light reaches an illuminance of at least 9,000 lux. The blue light has a wavelength of 465 nm. A diffuser plate is included. Power consumption is 8.7 W, the connection is an SMR-03V-B connector on a 1 m cable. The housing measures 89 mm × 67.3 mm × 66 mm and weighs 320 g.

Operating conditions

The permissible range is 0 °C to 40 °C in operation and -20 °C to 60 °C in storage, each at 20 % to 90 % relative humidity without condensation. Photobiologically the light is classified in risk group RG1; the safety distance is 0.55 m.

Applications and selection

Coaxial lights are the choice when a glossy, flat surface has to be imaged without reflections: wafers and printed circuit boards, polished metal parts, laser markings, displays and glass. The emitting area should be slightly larger than the camera's field of view. The MV-LCDS-H series comes in sizes 30, 40, 50, 60 and 70 in white, in 30 to 60 also in red and blue, in 70 also in infrared. The light runs on a HIKROBOT MV-LE series light controller; matching controllers, extension cables, cameras and lenses are listed in the catalog. We are glad to help with sizing by field of view, working distance and light color; requests go through the inquiry basket.
