Coaxial light MV-LCDS-H-30-30-R

The MV-LCDS-H-30-30-R coaxial light from HIKROBOT is a coaxial front light with a 32.5 mm × 32 mm emitting area in red. A beam splitter directs the light along the camera axis onto the part, and the camera looks through the same beam splitter. Flat, mirror-like surfaces appear evenly bright, while scratches, embossing, engravings and markings stay dark because they scatter the light out of the axis.

Technical data

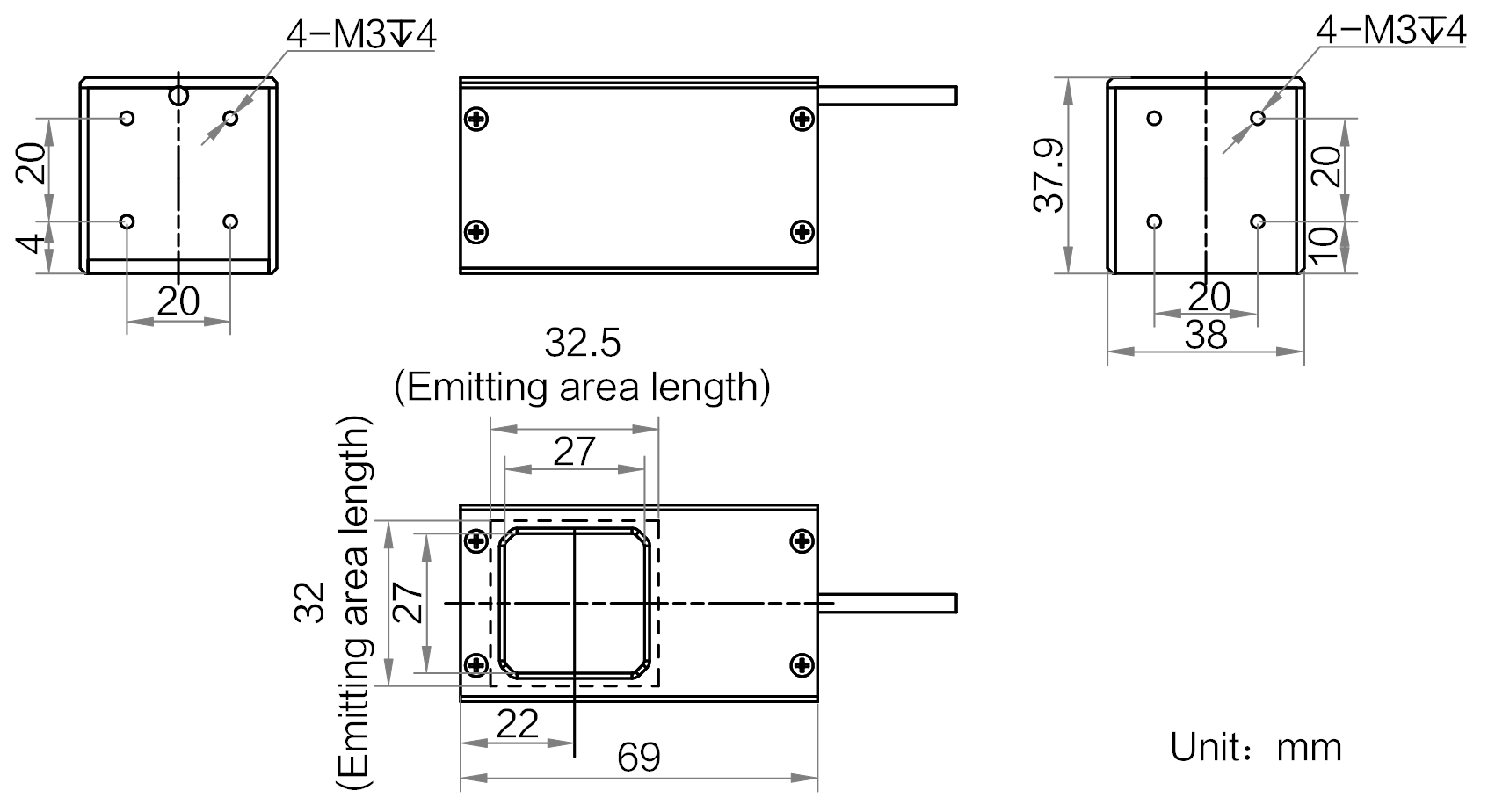

The emitting area measures 32.5 mm × 32 mm; at the center the light reaches an illuminance of at least 8,000 lux. The red light has a wavelength of 625 nm. A diffuser plate is included. Power consumption is 2.2 W, the connection is an SMR-03V-B connector on a 1 m cable. The housing measures 69 mm × 37.9 mm × 38 mm and weighs 132 g.

Operating conditions

The permissible range is 0 °C to 40 °C in operation and -20 °C to 60 °C in storage, each at 20 % to 90 % relative humidity without condensation. HIKROBOT states the photobiological safety class as "no danger".

Applications and selection

Coaxial lights are the choice when a glossy, flat surface has to be imaged without reflections: wafers and printed circuit boards, polished metal parts, laser markings, displays and glass. The emitting area should be slightly larger than the camera's field of view. The MV-LCDS-H series comes in sizes 30, 40, 50, 60 and 70 in white, in 30 to 60 also in red and blue, in 70 also in infrared. The light runs on a HIKROBOT MV-LE series light controller; matching controllers, extension cables, cameras and lenses are listed in the catalog. We are glad to help with sizing by field of view, working distance and light color; requests go through the inquiry basket.
