OPT
Area light OPT-FLC4034-B
Manufacturer part number: OPT-FLC4034-B
Series: OPT-FLC-Serie (kantenbeleuchtete Hintergrundbeleuchtungen)
- Lighting type
- Backlight
- Emitting area
- 30 × 25 mm
- Light color
- Blue
- Drive / supply
- 24 V
- Connection
- JST SMR-02V-B
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-FLC4034-B |
|---|---|
| Color | Blue |
| Voltage | 24 V |
| Power | 1.4 W |
| Stock Code | 11070322200 |
| Weight(KG) | 0.03 kg |
| Leuchtfläche | 30 × 25 mm |
| Lighting type | Backlight |
| Light guidance / design | Edge-Lit |
| Connection | JST SMR-02V-B |
| Cable length | 800 ± 20 mm |
| Min. bending radius of the cable | 20 mm |
| Housing length | 40 mm |
| Housing width | 34 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

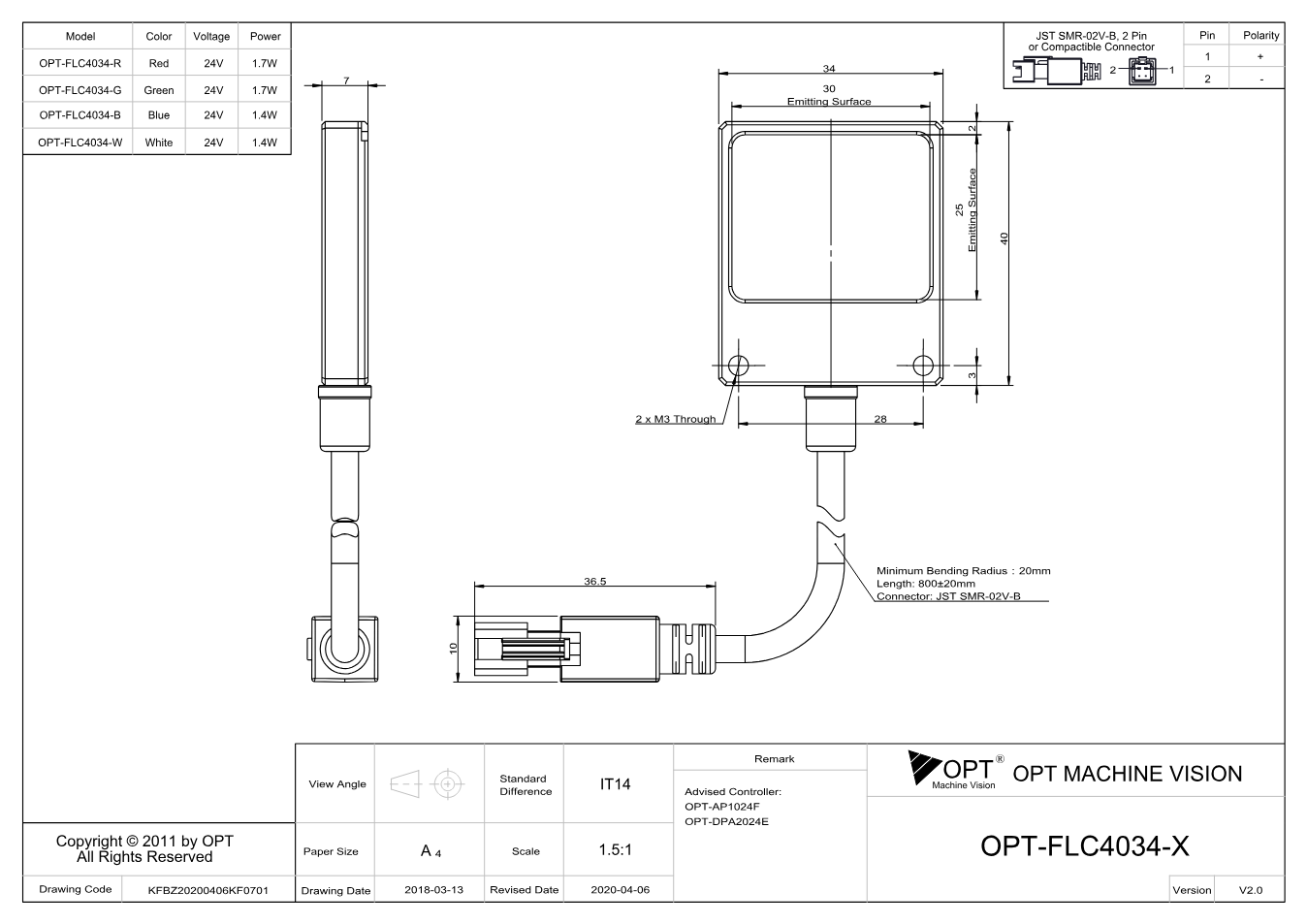

Dimensional drawing
Documents
- Download datasheet
OPT-FLC-Serie (kantenbeleuchtete Hintergrundbeleuchtungen) - Serienbroschüre OPT (EN)
Datasheet · EN · 1296 KB
- Download
Maßzeichnung OPT-FLC4034 (V2.0) (PDF)
Technical drawing · EN · 139 KB
Accessories
Beleuchtungskabel(12)
OPT
Verlängerungskabel 2-polig (JST) OPT-EX1M-2P-D, 1 m, Schleppkette
JST SMR-02V-B · 1 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX1M-2P-R, 1 m, Roboterkabel
JST SMR-02V-B · 1 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX2M-2P-D, 2 m, Schleppkette
JST SMR-02V-B · 2 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX2M-2P-R, 2 m, Roboterkabel
JST SMR-02V-B · 2 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX3M-2P-D, 3 m, Schleppkette
JST SMR-02V-B · 3 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX3M-2P-R, 3 m, Roboterkabel
JST SMR-02V-B · 3 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX5M-2P-D, 5 m, Schleppkette
JST SMR-02V-B · 5 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX5M-2P-R, 5 m, Roboterkabel
JST SMR-02V-B · 5 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX10M-2P-D, 10 m, Schleppkette
JST SMR-02V-B · 10 m
OPT
Verlängerungskabel 2-polig (JST) OPT-EX10M-2P-R, 10 m, Roboterkabel
JST SMR-02V-B · 10 m
OPT
Verzweigungskabel 2-polig (JST) OPT-EX1M-2P-2B, 1 m (0,5 m + 0,5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
OPT
Verzweigungskabel 2-polig (JST) OPT-EX1M-2P-4B, 1 m (0,5 m + 0,5 m)
JST SMR-02V-B · 1 m (0.5 m + 0.5 m)
Description
OPT-FLC4034-B belongs to the OPT-FLC series by OPT - edge-lit backlight. light color: blue, input voltage: 24 V, power consumption: 1.4 W, weight: 0.03 kg.
In the OPT-FLC series the LEDs sit at the edge of a light guide plate that distributes the light across the surface. This makes the light as slim as 6 mm - the right choice when there is hardly any room behind the part, for example in feeders and tooling.
Which light is the right one depends not only on the form factor and the light color, but also on the working distance, the part under inspection and the camera. Tell us what you need to inspect and we will match light, lens and controller to one another and quote price and delivery time.
