Area light OPT-FLC7070-B
Manufacturer part number: OPT-FLC7070-B
Series: OPT-FLC-Serie (kantenbeleuchtete Hintergrundbeleuchtungen)
- Lighting type
- Backlight
- Emitting area
- 46 × 46 mm
- Light color
- Blue
- Drive / supply
- 24 V
- Connection
- JST SMR-02V-B
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-FLC7070-B |
|---|---|
| Color | Blue |
| Voltage | 24 V |
| Power | 4.4 W |
| Recommended controller | OPT-DPA2024E |
| Stock Code | 11070274200 |
| Weight(KG) | 0.08 kg |
| Leuchtfläche | 46 × 46 mm |
| Lighting type | Backlight |
| Light guidance / design | Edge-Lit |
| Controller required | Recommended |
| Connection | JST SMR-02V-B |
| Cable length | 800 ± 20 mm |
| Min. bending radius of the cable | 20 mm |
| Housing length | 70 mm |
| Housing width | 70 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

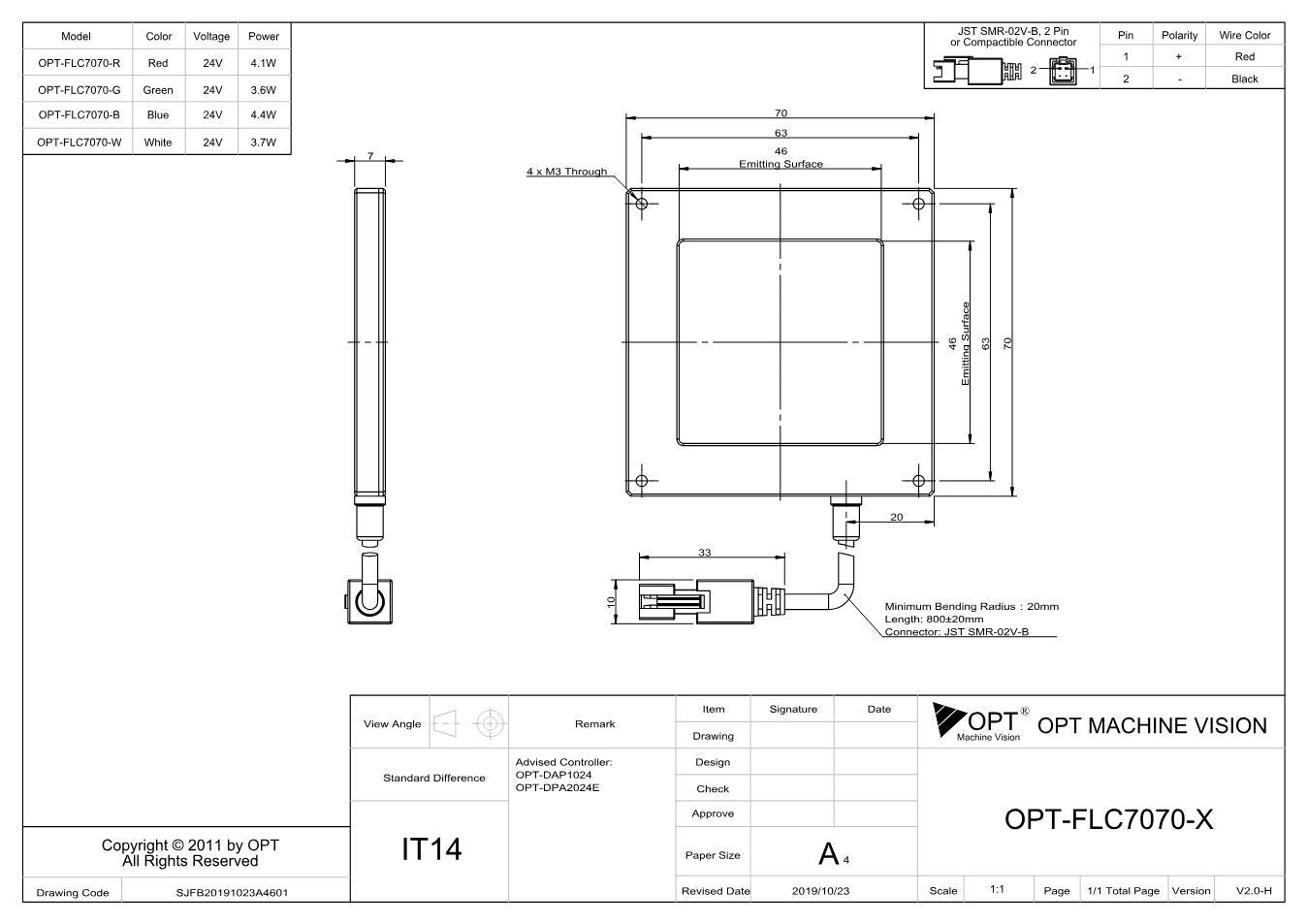

Dimensional drawing
Documents
- Download datasheet
OPT-FLC-Serie (kantenbeleuchtete Hintergrundbeleuchtungen) - Serienbroschüre OPT (EN)
Datasheet · EN · 1 MB
- Download
Maßzeichnung OPT-FLC7070 (V2.0) (PDF)
Technical drawing · EN · 138 KB
- Download
Maßzeichnung OPT-FLC7070 (V2.0) (PDF)
Technical drawing · EN · 139 KB
