Area light OPT-CFLG8658-UV

Manufacturer part number: OPT-CFLG8658-UV

Series: OPT-CXXX-UV-Serie (UV-Aushärtebeleuchtungen)

Emitting area: 70 × 42 mm
Light color: UV (365 nm | 385 nm | 405 nm)
Connection: ZQ GX16M-6A

Price and availability on request

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	OPT-CFLG8658-UV
Wavelength	365nm/385nm/405nm
Color	Ultraviolet
Input	120 W@5 A
Current (strobe)	5 A
Power (strobe)	120 W
Current (continuous)	2.35 A
Power (continuous)	56.4 W
Channels	1
Recommended controller	OPT-DPA6024
Advised controller (drawing)	OPT-APA6024, OPT-DPA6024
Connector	ZQ GX16M-6A
Cable length	1000 ± 20 mm
Minimum bending radius	40 mm
Stroboscopic working	Maximum pulse width 30 s, duty ratio 50 %
Continuous working	The controller gear 120
Emitting area width	70 mm
Emitting area height	42 mm
Controller required	Recommended
Min. bending radius of the cable	40 mm
Housing length	86 mm
Housing width	58 mm

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

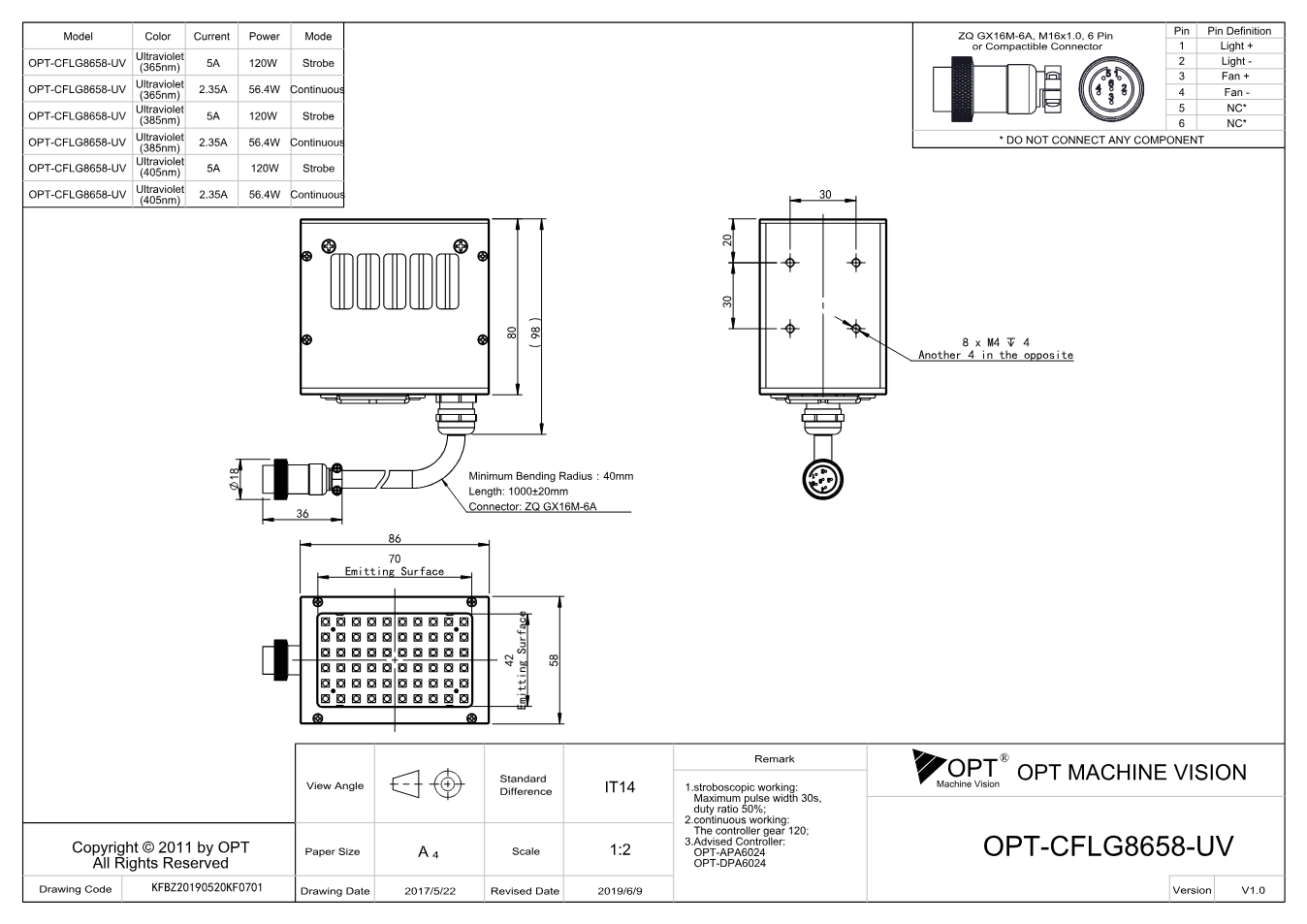

Dimensional drawing

Documents

OPT-CXXX-UV-Serie (UV-Aushärtebeleuchtungen) - Serienbroschüre OPT (EN)
Datasheet · EN · 4513 KB
Download datasheet
Maßzeichnung OPT-CFLG8658 (V1.0) (PDF)
Technical drawing · EN · 230 KB
Download

Accessories

Beleuchtungskabel(9)

OPT

Verlängerungskabel 6-polig, 6 A OPT-EX3M-6P-S-6A, 3 m

ZQ GX16M-6A · 3 m

OPT

Verlängerungskabel 6-polig, 6 A OPT-EX5M-6P-S-6A, 5 m

ZQ GX16M-6A · 5 m

OPT

Verlängerungskabel 6-polig, 6 A OPT-EX10M-6P-S-6A, 10 m

ZQ GX16M-6A · 10 m

OPT

Verlängerungskabel 6-polig, 6 A OPT-EX20M-6P-S-6A, 20 m

ZQ GX16M-6A · 20 m

OPT

Lichtkabel 6-polig, 6 A OPT-DGYX1M-6P-S-6A, 1 m

ZQ GX16M-6A · 1 m

OPT

Lichtkabel 6-polig, 6 A OPT-DGYX2M-6P-S-6A, 2 m

ZQ GX16M-6A · 2 m

OPT

Lichtkabel 6-polig, 6 A OPT-DGYX3M-6P-S-6A, 3 m

ZQ GX16M-6A · 3 m

OPT

Lichtkabel 6-polig, 6 A OPT-DGYX5M-6P-S-6A, 5 m

ZQ GX16M-6A · 5 m

OPT

Lichtkabel 6-polig, 6 A OPT-DGYX10M-6P-S-6A, 10 m

ZQ GX16M-6A · 10 m

Description

OPT-CFLG8658-UV denotes, within the OPT-CXXX-UV series (UV curing lights) , the product type „UV curing light“. Key figures are light color UV (365 nm | 385 nm | 405 nm), current draw 5 A | 2.35 A, power in flash mode 120 W | 56.4 W continuous operation | 120 W flash mode.

Choosing a machine vision light is not only about color and power: the illuminated field, the mounting angle, the working distance and the way the light is driven matter just as much. The dimensional drawing is available both as an image and as a PDF.

Tell us your camera, your lens and your inspection task and we will check the combination and quote price and delivery time for the exact part number.
