Area light OPT-CFLG29658-UV
Manufacturer part number: OPT-CFLG29658-UV
Series: OPT-CXXX-UV-Serie (UV-Aushärtebeleuchtungen)
- Emitting area
- 280 × 42 mm
- Light color
- UV (365 nm | 385 nm | 405 nm)
- Connection
- WS 28K7Z
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-CFLG29658-UV |
|---|---|
| Wavelength | 365nm/385nm/405nm |
| Color | Ultraviolet |
| Input | 480 W@20 A |
| Current (strobe) | 20 A |
| Power (strobe) | 480 W |
| Current (continuous) | 9.4 A |
| Power (continuous) | 225.6 W |
| Channels | 1 |
| Recommended controller | OPT-DPA20024E |
| Connector | WS 28K7Z |
| Stroboscopic working | Maximum pulse width 30 s, duty ratio 50 % |
| Continuous working | The controller gear 120 |
| Note on extension cords | Light source using with 3 meters extension cords |
| Emitting area width | 280 mm |
| Emitting area height | 42 mm |
| Controller required | Recommended |
| Housing length | 296 mm |
| Housing width | 58 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

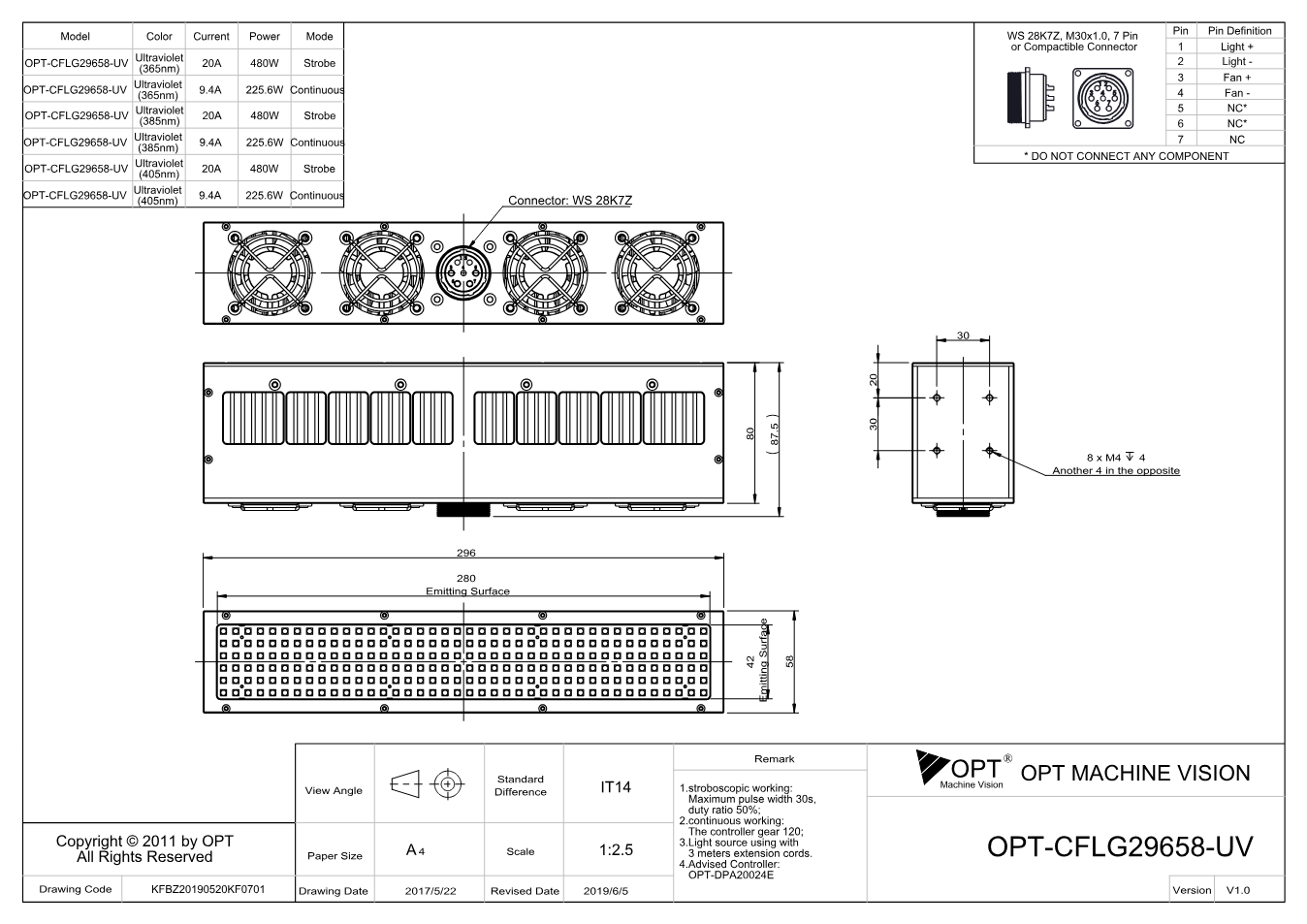

Dimensional drawing
Documents
- Download datasheet
OPT-CXXX-UV-Serie (UV-Aushärtebeleuchtungen) - Serienbroschüre OPT (EN)
Datasheet · EN · 4 MB
- Download
Maßzeichnung OPT-CFLG29658 (V1.0) (PDF)
Technical drawing · EN · 130 KB
Description
OPT-CFLG29658-UV denotes, within the OPT-CXXX-UV series (UV curing lights) , the product type „UV curing light“. Key figures are light color UV (365 nm | 385 nm | 405 nm), current draw 20 A | 9.4 A, power in flash mode 480 W | 225.6 W continuous operation | 480 W flash mode.
Choosing a machine vision light is not only about color and power: the illuminated field, the mounting angle, the working distance and the way the light is driven matter just as much. The dimensional drawing is available both as an image and as a PDF.
Tell us your camera, your lens and your inspection task and we will check the combination and quote price and delivery time for the exact part number.
